GA-8IGX Motherboard

Select Language

Multi Language is supports 7 languages. There are English, Japanese, French, Spanish,

Germany, Simplified Chinese, Traditional Chinese.

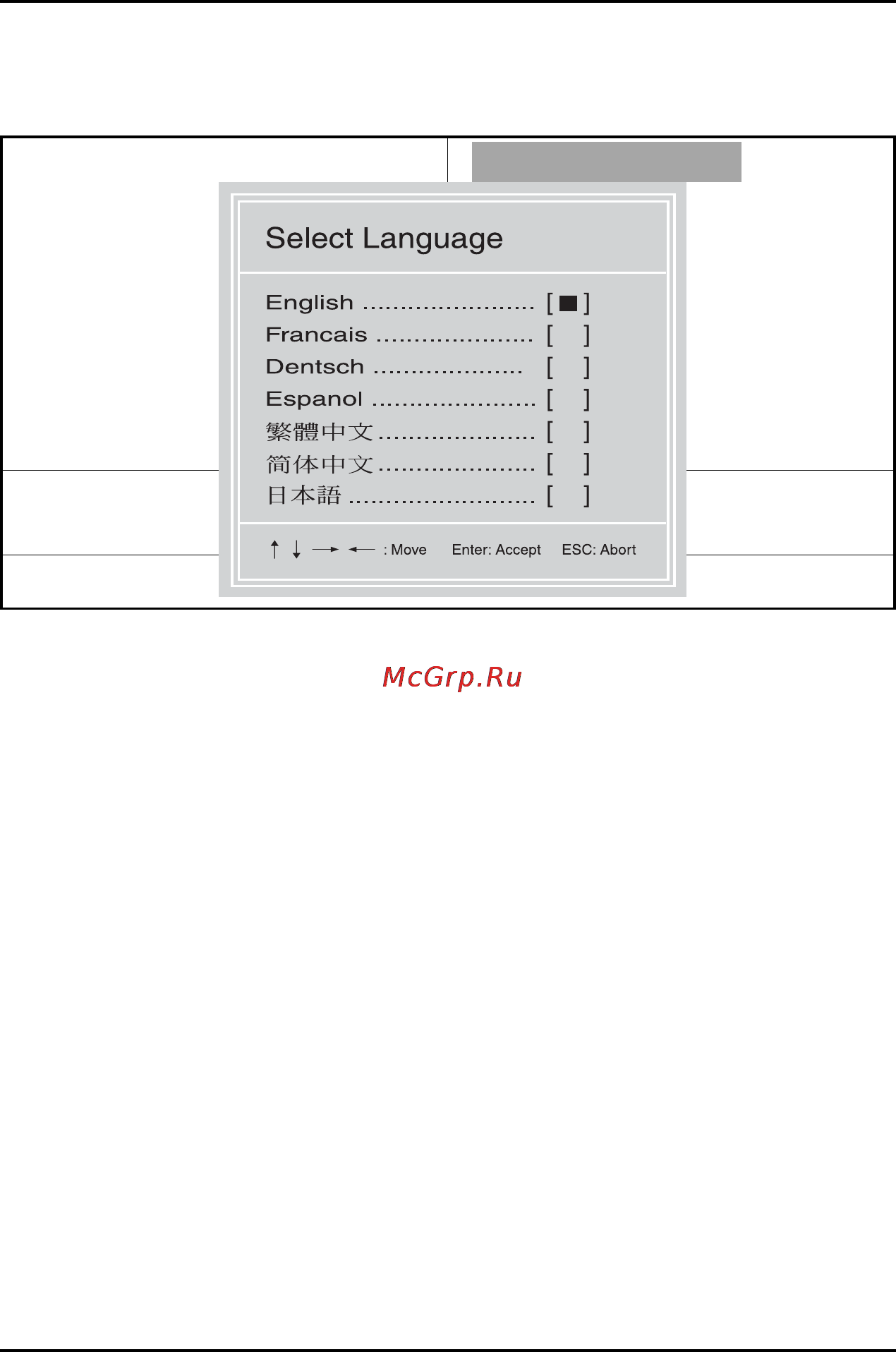

Figure 10:Select Language

Standard CMOS Features Select Language

Advanced BIOS Features Load Fail-Safe Defaults

Integrated Peripherals Load Optimized Defaults

Power Management Setup Set Supervisor Password

PnP/PCI Configurations Set User Password

PC Health Status Save & Exit Setup

Frequency/Voltage Control Exit Without Saving

Top Performance

ESC:Quit F3: Select Language

F8: Dual BIOS/Q-Flash F10:Save & Exit Setup
