GA-8IGX Motherboard

STEP 3: Download BIOS and BIOS utility program.

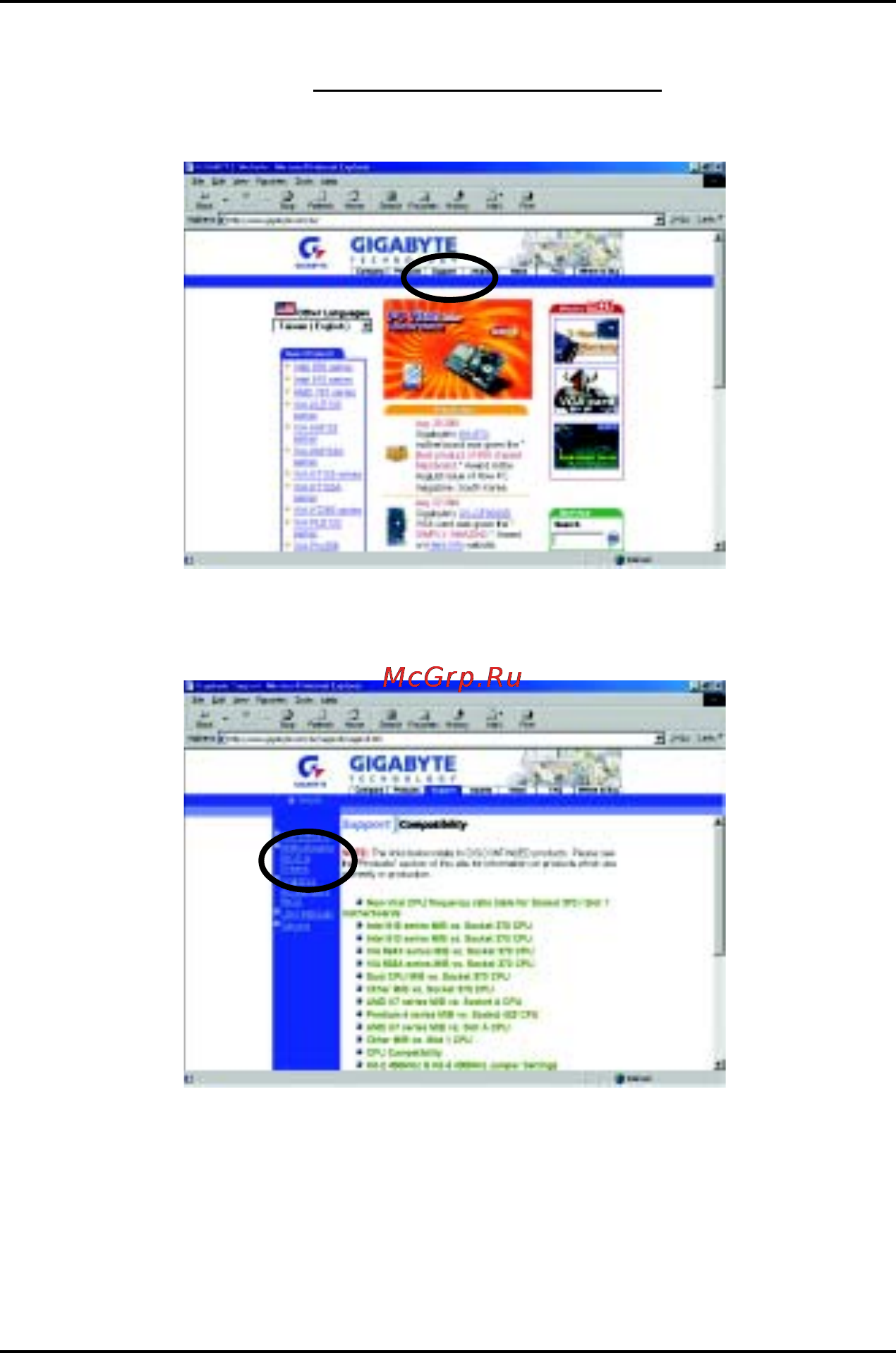

(1) Please go to Gigabyte website

http://www.gigabyte.com.tw/index.html, and click "Support".

(2) From Support zone, click the "Motherboards BIOS & Drivers".
