GA-8IGX Motherboard

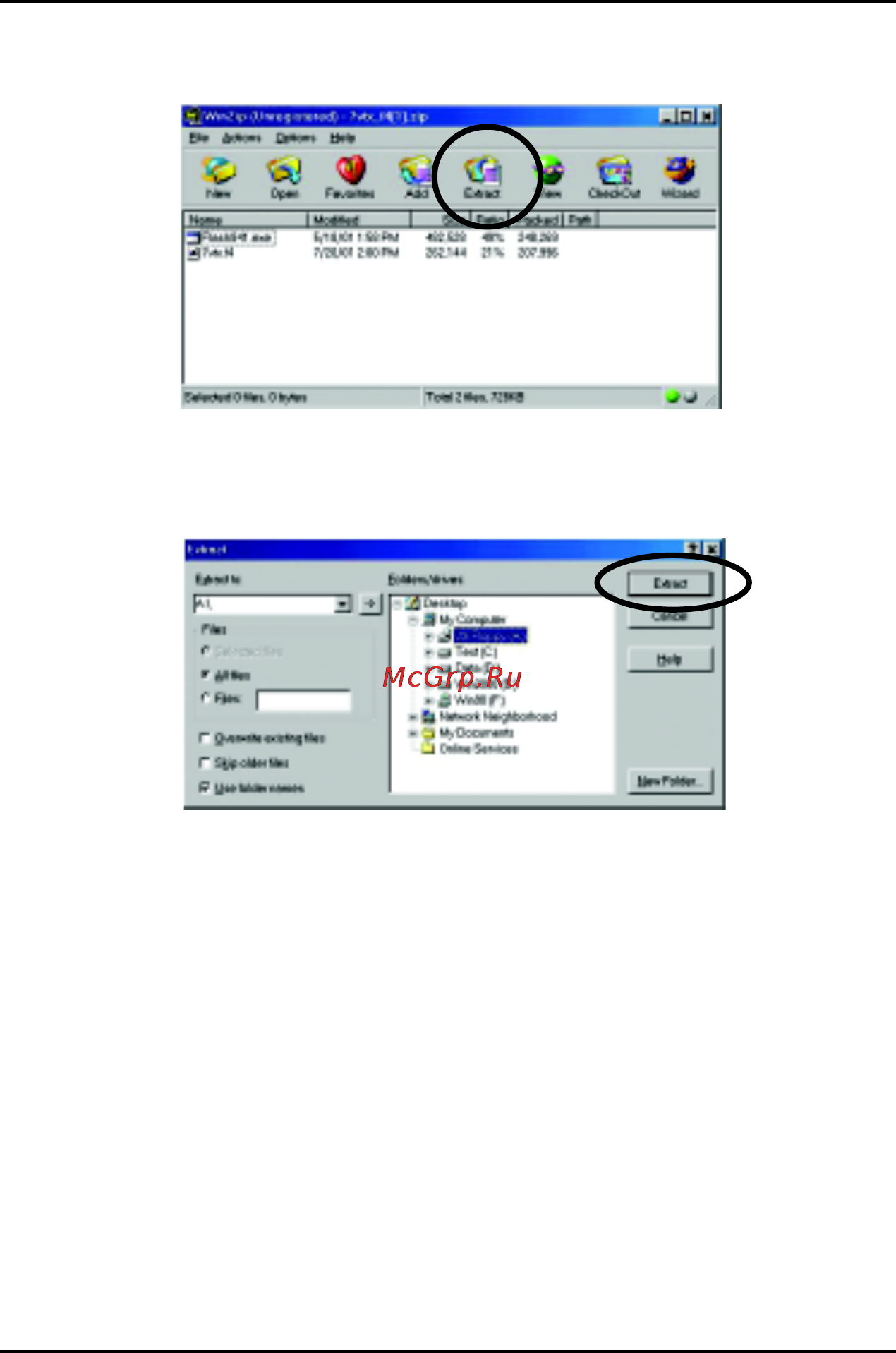

(5) At this time the screen shows the following picture, please click "Extract" button to unzip the files.

(6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and

press "Extract".
