User Guide 16
Managing System Configuring System Info
2
Configuring System Info
With the System Info function, you can:
View the system information
Specify the device description
2.1 Viewing the System Information
Choose the menu System > System Info to load the following page. You can view the basic
system information of the switch.

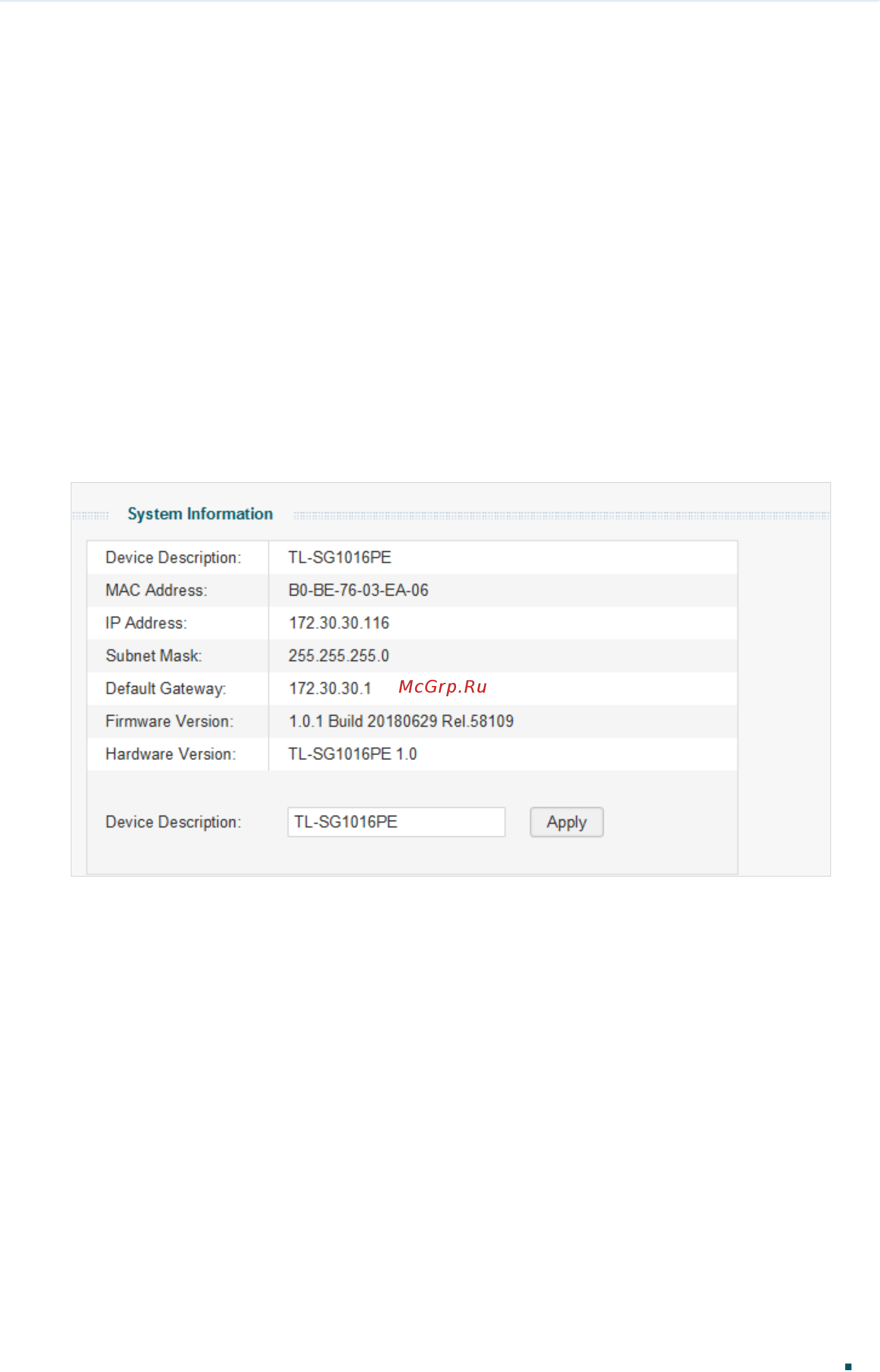

Figure 2-1 Viewing the System Summary
