User Guide 18
Managing System Configuring IP
3
Configuring IP
You can configure the system IP address in the following two ways:
Configure the System IP Address Using DHCP
Configure the System IP Address Manually
Configuring the System IP Address Using DHCP
Choose the menu System > IP Setting to load the following page.

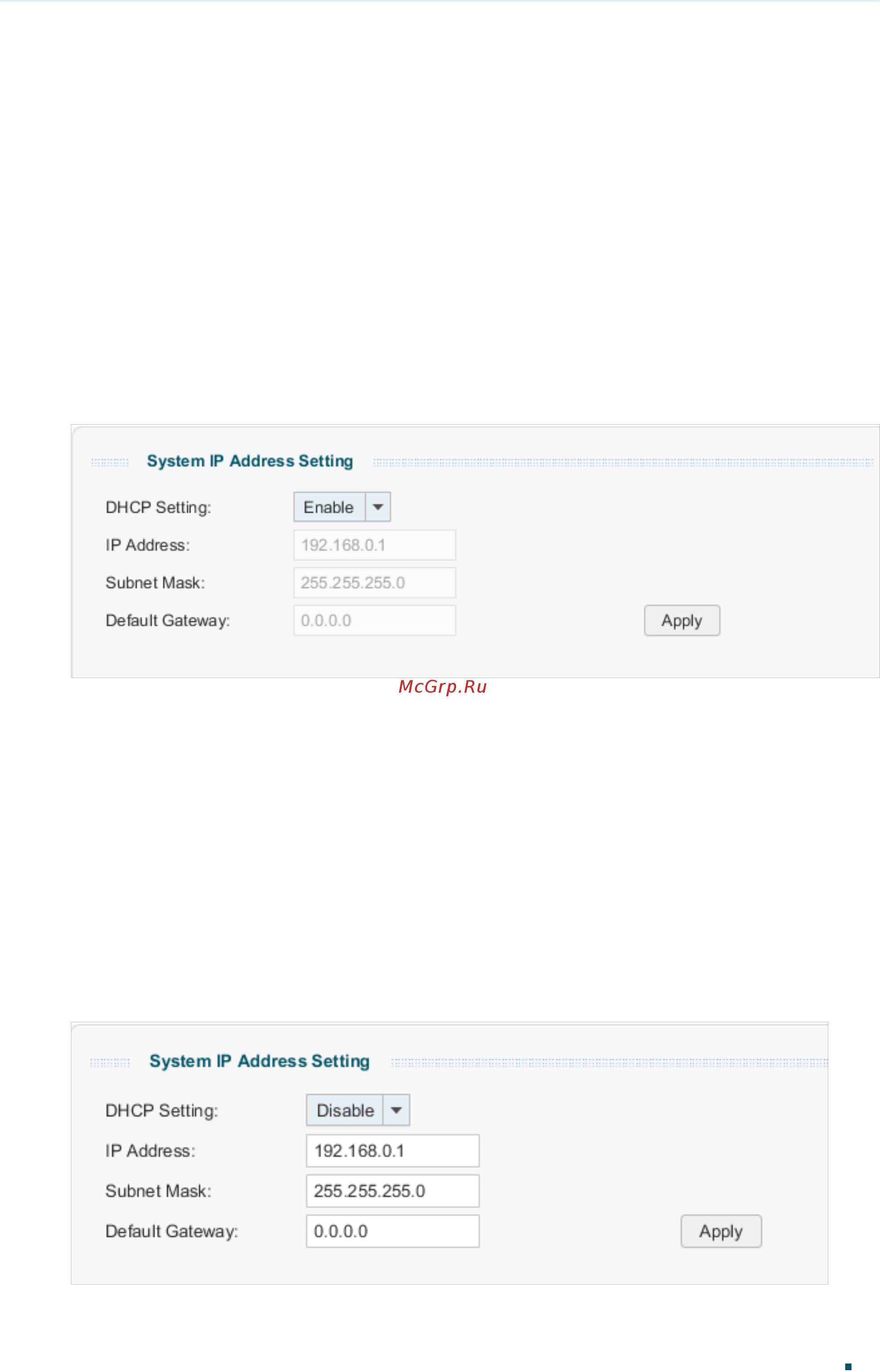

Figure 3-1 Configuring System IP Address with DHCP Enabled
Follow these steps to configure the system IP address using DHCP:
1) Select DHCP setting as Enable from the drop-down list.
2) Click Apply. Then the switch will try to obtain IP address, subnet mask, and default
gateway from the DHCP server in the network. If the switch cannot get IP settings from
the DHCP server, it will use the default IP address of 192.168.0.1 and subnet mask of
255.255.255.0.
Configuring the System IP Address Manually
Choose the menu System > IP Setting to load the following page.
Figure 3-2 Configuring System IP Address Manually
