Managing System Backing Up and Restoring
User Guide
21
5
Backing Up and Restoring
With the Backup and Restore function, you can:
Save the current configuration.
Restore to the previous configuration.
5.1 Saving the Current Configuration
Choose the menu System > Backup and Restore to load the following page.

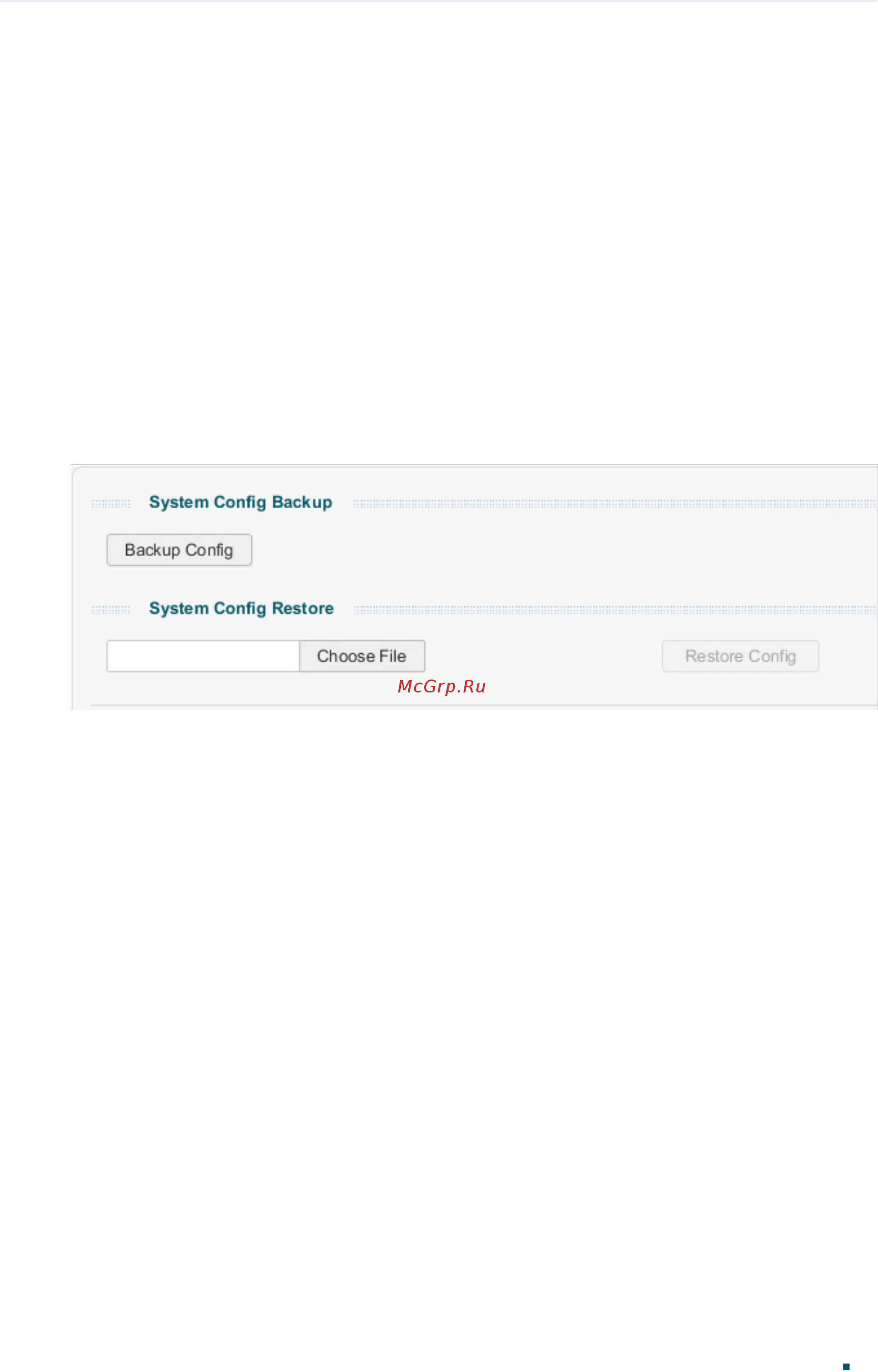

Figure 5-1 Backing Up System Config
