User Guide 44
Monitoring Configuring Port Mirror
3
Configuring Port Mirror
For TL-SG108PE
Choose the menu Monitoring > Port Mirror to load the following page.

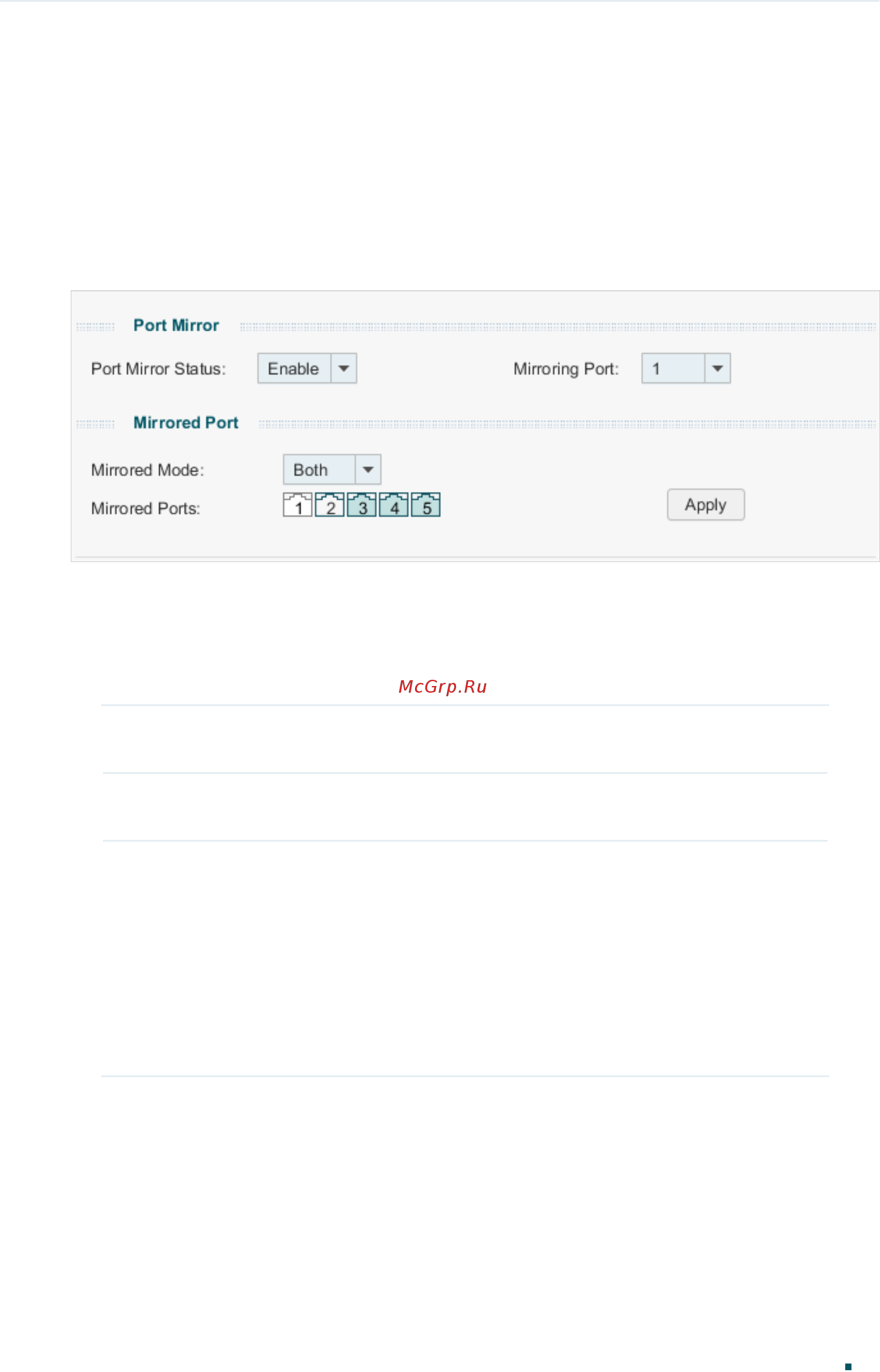

Figure 3-1 Configuring Port Mirror
Follow these steps to configure port mirror:
1) In the Port Mirror section, Select the port mirror status as Enable. Specify the mirroring
port. In the Mirrored Port section, select a mirrored mode according to your needs, and
select one or more mirrored ports.
Port Mirror
Status
Enable or disable the port mirror feature globally.
Mirroring Port/
Mirrored Ports
Traffic passing through the mirrored ports is mirrored to the mirroring port.
Mirrored Mode Select the mirrored mode according to your needs.
Ingress: With this option enabled, only the packets received by the
mirrored ports are copied to the mirroring port.
Egress: With this option enabled, only the packets sent by the mirrored
ports are copied to the mirroring port.
Both: With this option enabled, the packets both sent and received by the
mirrored ports are copied to the mirroring port.
2) Click Apply.
