Switching Configuration Example
User Guide
39
5.2.2 Configuration Steps
Choose the menu Switching > LAG to load the following page. In the LAG Config section,
select Port 1, Port 2 and Port 3 to add to the LAG 1. Click Apply.

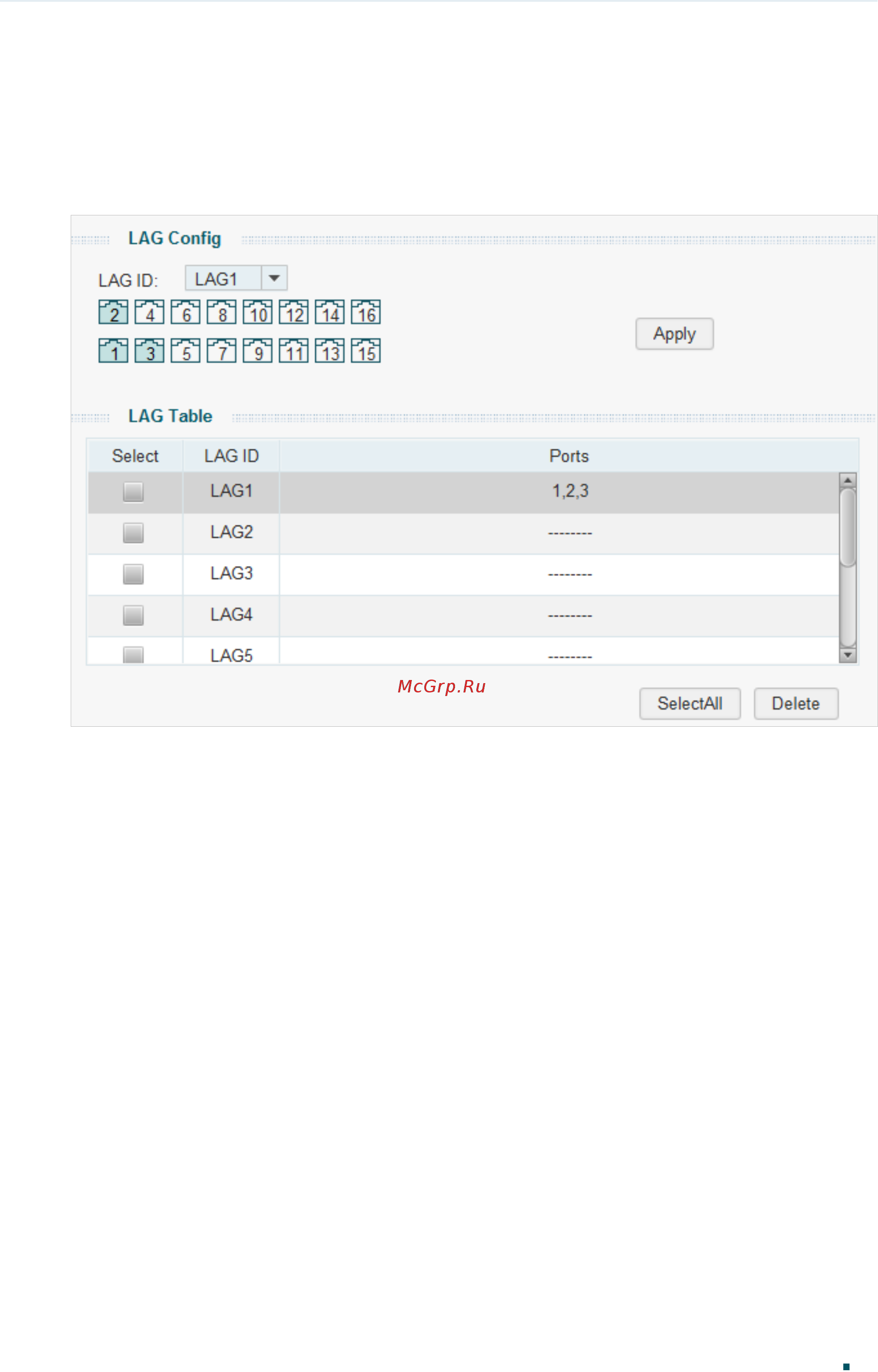

Figure 5-1 Configuring LAG
