User Guide 56
Configuring VLAN Configuring 802.1Q VLAN
4) You can verify the configuration result of 802.1Q VLAN in the table. You can delete a
VLAN as you wish by selecting the VLAN and clicking Delete.

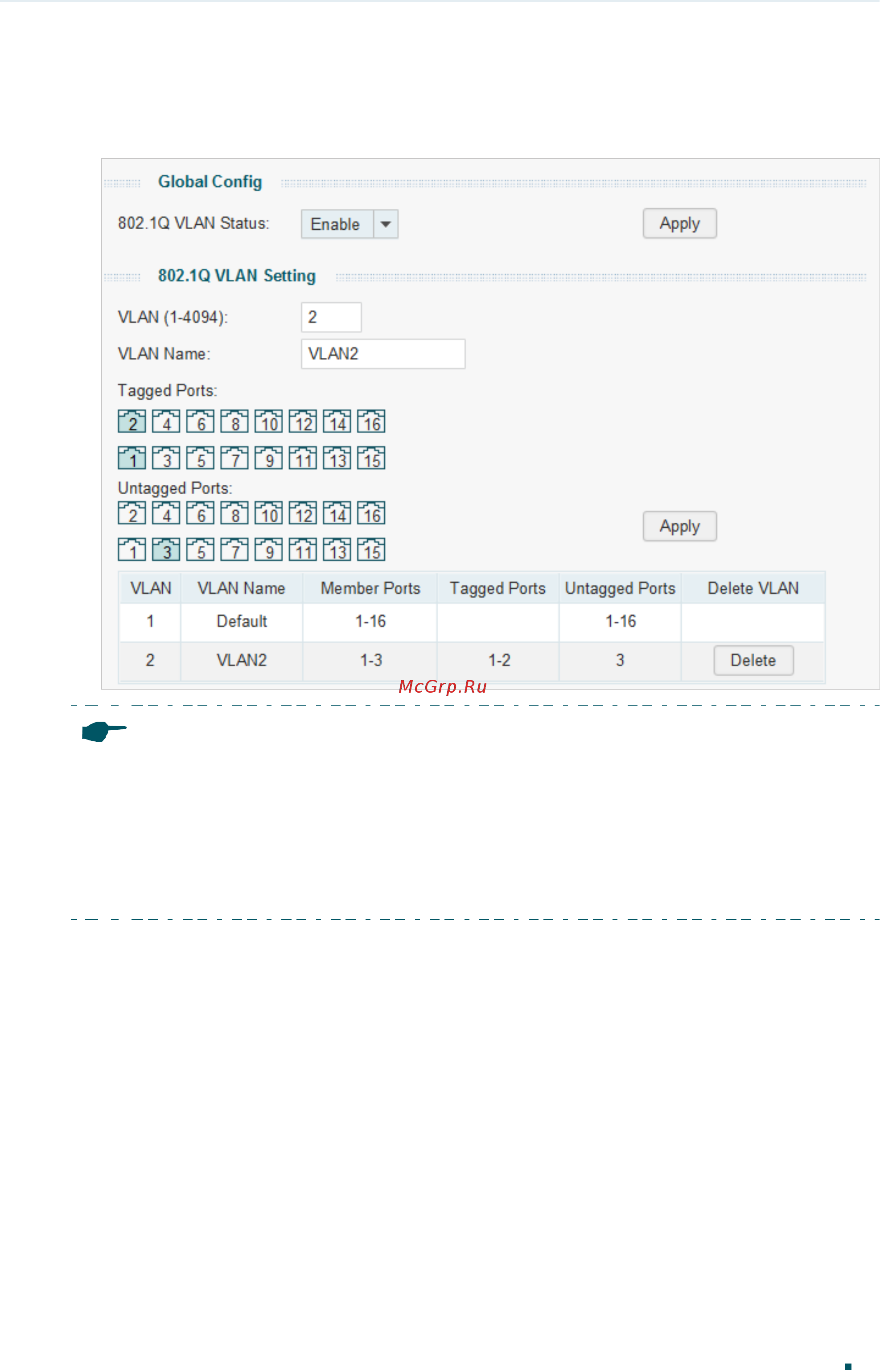

Figure 4-3 Verifying the Configuration Result
Note:
•
By default, all the ports are added to VLAN 1.
•
The port can be removed from VLAN 1 only when the port is also a member of the other
VLANs.
•
Once a port is removed from the current VLANs, it is added to VLAN 1 automatically.
•
VLAN 1 cannot be deleted.
