Configuring VLAN Configuring 802.1Q VLAN
User Guide
55

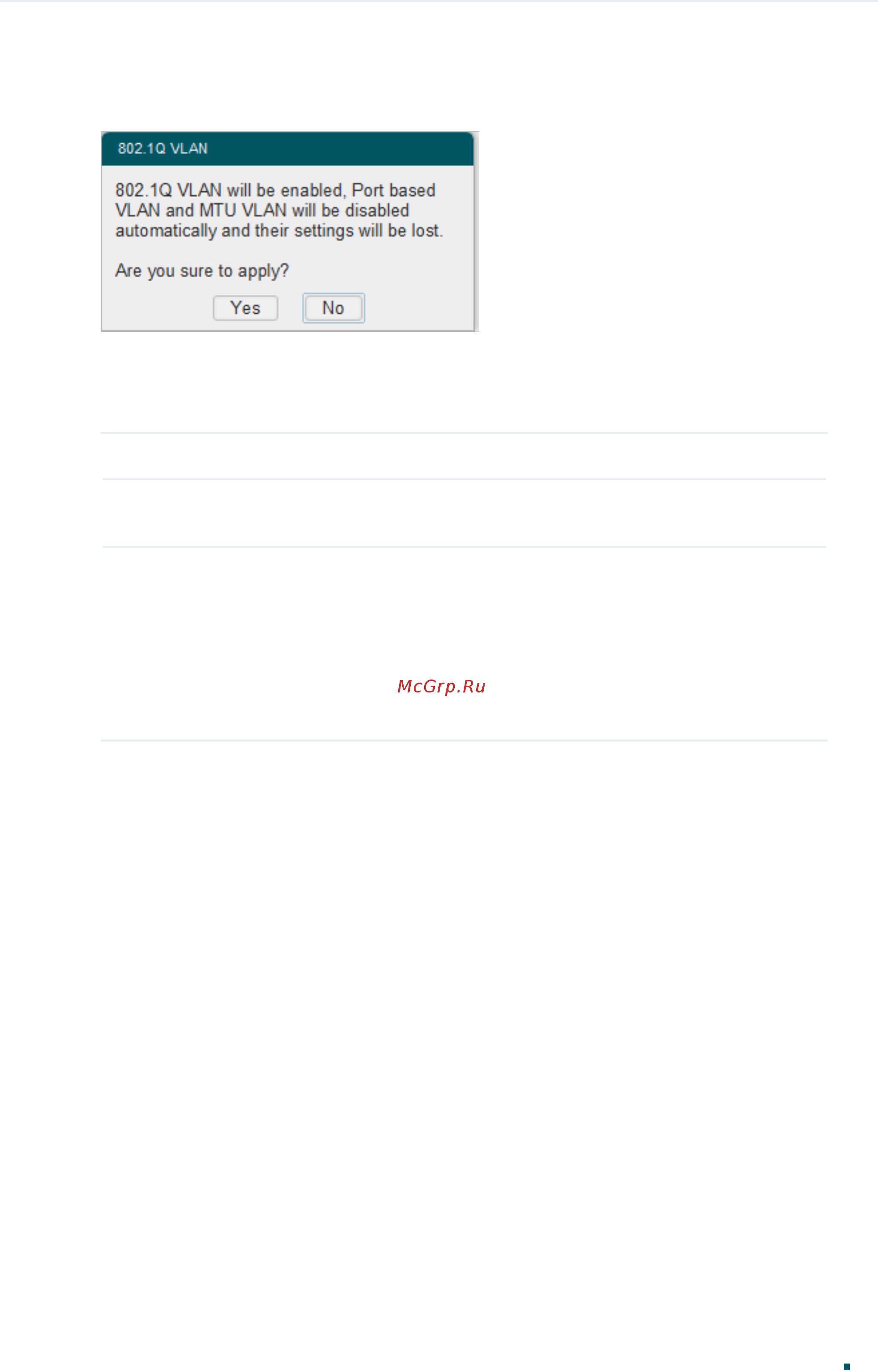

2) The following page will be displayed. Click Yes.
Figure 4-2 Being Sure to Enable 802.1Q VLAN
3) In the 802.1Q VLAN Setting section, enter a VLAN ID and a VLAN name for identification
to create a VLAN. Select the untagged port(s) and the tagged port(s) respectively to
add to the created VLAN based on the network topology. Click Apply.
VLAN (1-4094) Enter a VLAN ID, which rages from 1 to 4094, for identification.
VLAN Name Enter a VLAN name for identification. The VLAN name should not be more
than 10 characters using digits, letters, hyphens, and underlines only.
Tagged Ports /
Untagged Ports
Select the ports to add to the VLAN as tagged ports or untagged ports.
The unselected ports do not forward frames in the target VLAN.
Tagged Ports: Tagged ports forward frames in the target VLAN with the
current VLAN tags remained.
Untagged Ports: Untagged ports forward frames in the target VLAN after
removing the VLAN tags.
