Switching Configuration Example
User Guide
37
5.1.3 Configuration Steps

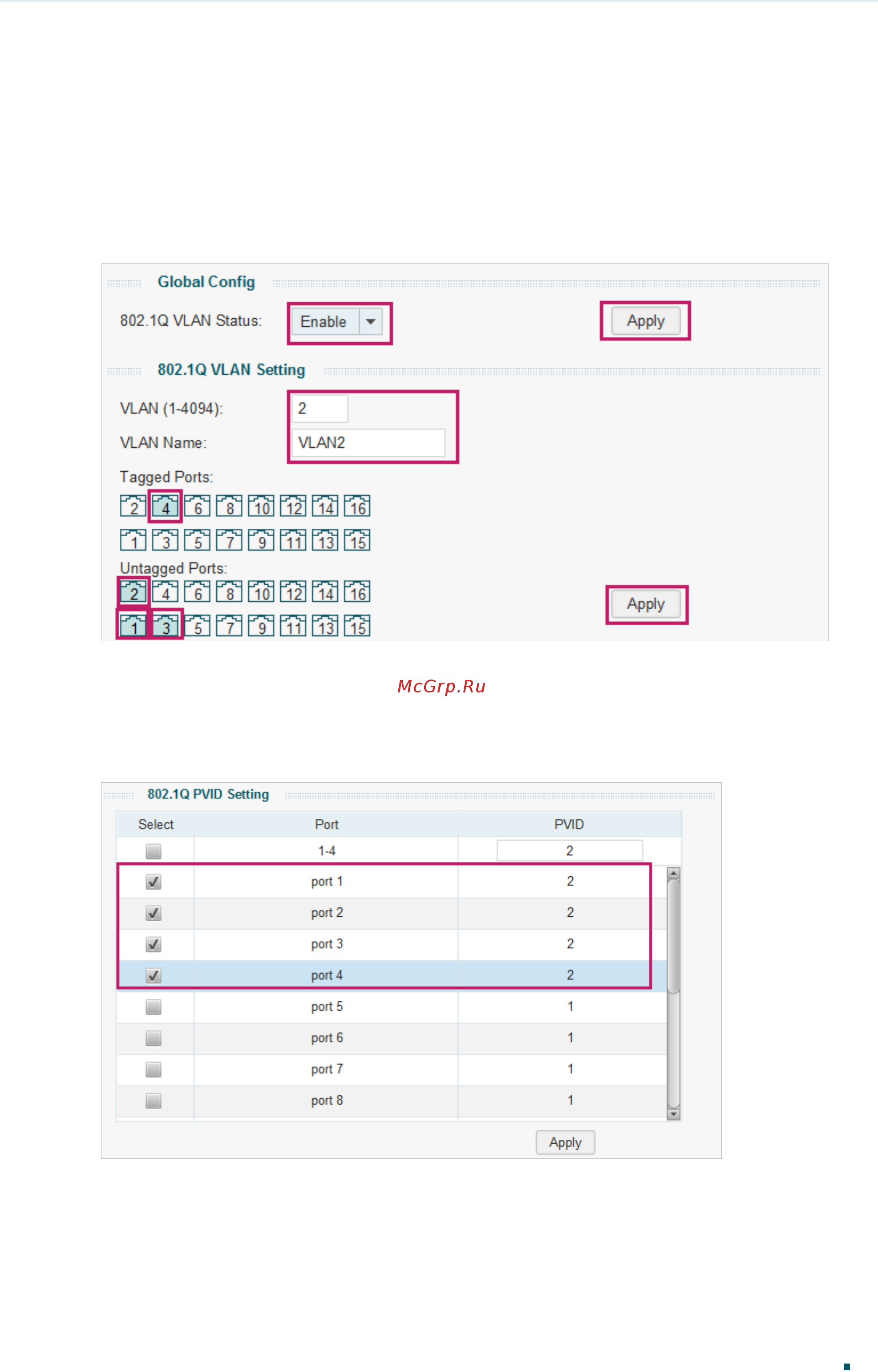

1) Choose the menu VLAN > 802.1Q VLAN to load the following page. Select the 802.1Q
VLAN status as Enable. Click Apply. Specify the VLAN ID as 2. Specify the VLAN name
as VLAN2. Select port 1, port 2 and port 3 as untagged ports. Select port 4 as a tagged
port. Click Apply.
Figure 5-2 Configuring 802.1Q VLAN
2) Choose the menu VLAN > 802.1Q VLAN PVID Setting to load the following page.
Select port 1, port 2, port 3 and port 4, and specify the PVID as 2 for the ports. Click
Apply.
Figure 5-3 Configuring 802.1Q PVID
