Switching Configuring LAG
User Guide
35
4
Configuring LAG
Choose the menu Switching > LAG to load the following page.

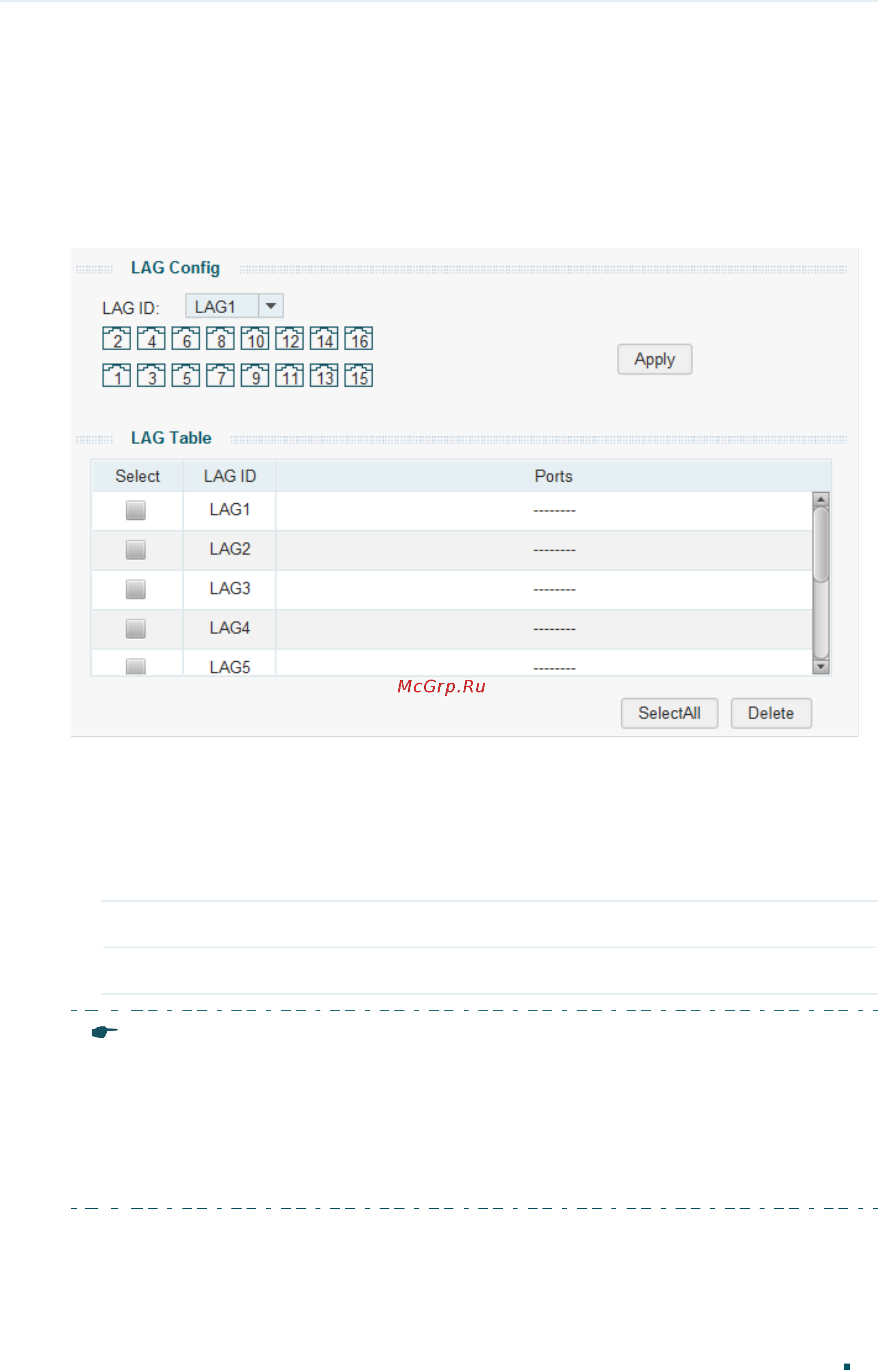

Figure 4-1 Configuring LAG
Follow these steps to configure LAG:
1) In the LAG Config section, select an LAG ID and click the ports to add to the LAG. Click
Apply.
2) In the LAG Table section, you can verify the LAG configuration result. You can select
the LAG and click Delete to delete ports from the LAG group.
LAG ID Displays the ID of the LAG group.
Ports Displays the LAG member ports.
Note:
•
Ensure that devices on both ends of the aggregation link use the same number of physical
ports with the same speed and duplex mode, flow control setting and QoS setting.
•
The LAG member ports cannot be set as the mirroring port or mirrored port.
•
It is recommended to configure the LAG function before configuring the other functions for
the member ports.
