User Guide 66
Configuring QoS Configuring Basic QoS
2.2 Configuring QoS in 802.1P Based Mode
Choose the menu QoS > QoS Basic to load the following page.

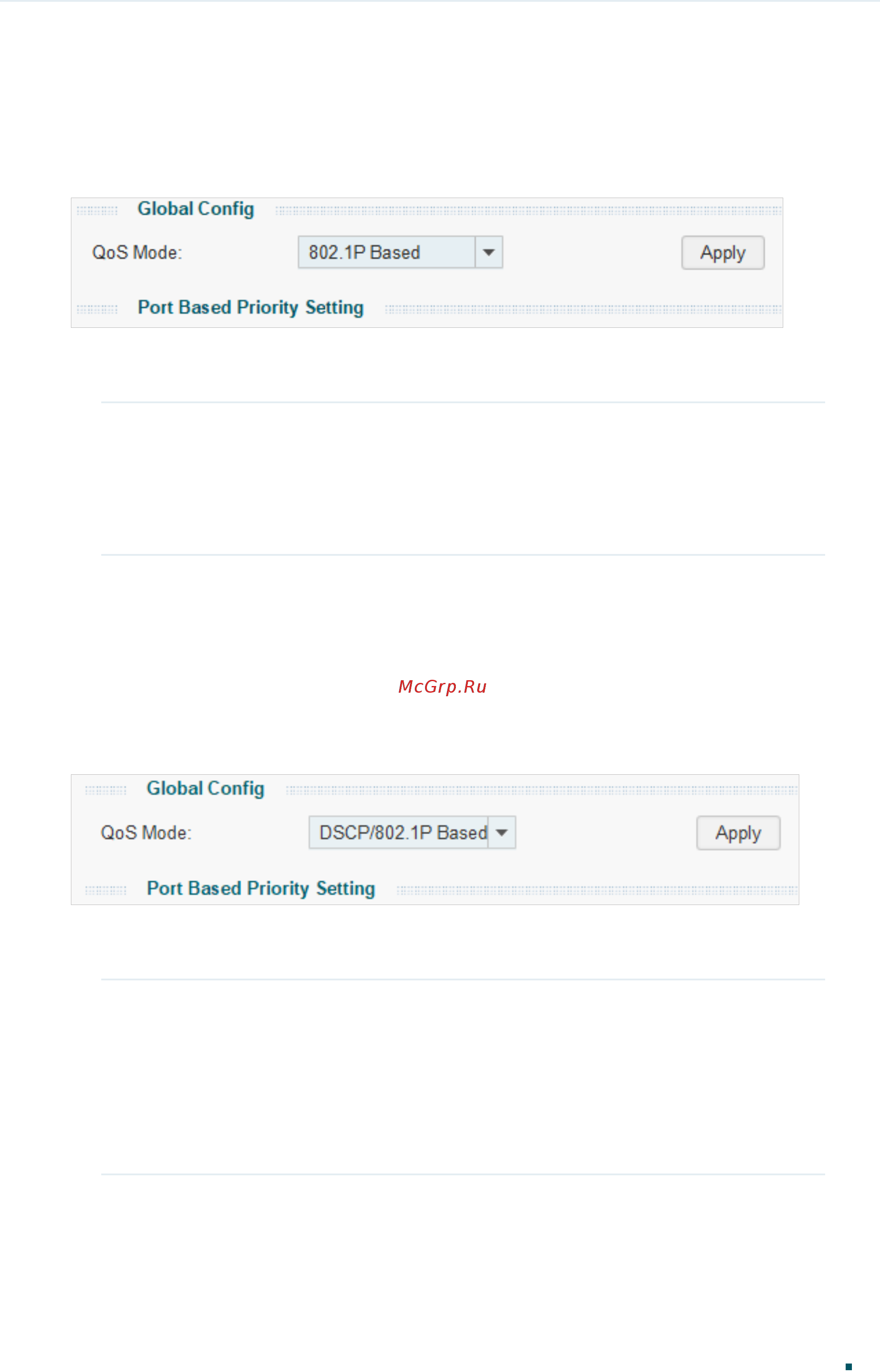

Figure 2-2 Configuring Basic QoS in 802.1P Based Mode
Follow these steps to configure QoS in 802.1P based mode:
1) Select QoS mode as 802.1P Based.
QoS Mode Select the QoS mode .
802.1P Based: In 802.1P based mode, the tagged packets are mapped to
4 priority levels based on the Pri value in 802.1Q tag (Lowest = 0, 1; Normal
=2, 3; Medium= 4, 5; Highest = 6, 7). The switch only prioritizes packets with
VLAN tag, regardless of the IP header of the packets.
2) Click Apply.
2.3 Configuring QoS in DSCP/802.1P Based Mode
Choose the menu QoS > QoS Basic to load the following page.
Figure 2-3 Configuring Basic QoS in DSCP/802.1P Based Mode
Follow these steps to configure QoS in DSCP/802.1P based mode:
1) Select QoS mode as DSCP/802.1P Based.
QoS Mode Select the QoS mode.
DSCP/802.1P Based: In this mode, the IP packets are mapped to 4 priority
levels based on the DSCP value (Lowest= 0-15; Normal = 16-31; Medium
= 32-47; Highest = 48-63). The switch prioritizes packets with IP header
based on DSCP priority first. Then, the switch prioritizes packets with
VLAN tag but without IP header based on the PRI field. Finally, the switch
prioritizes packets without VLAN tag or IP header based on port priority.
2) Click Apply.
