User Guide 22
Managing System Backing Up and Restoring
Follow these steps to save the current configuration:
1) In the System Config Backup section, click Backup Config to load the following page.
Specify the file path and file name for the configuration file to save.

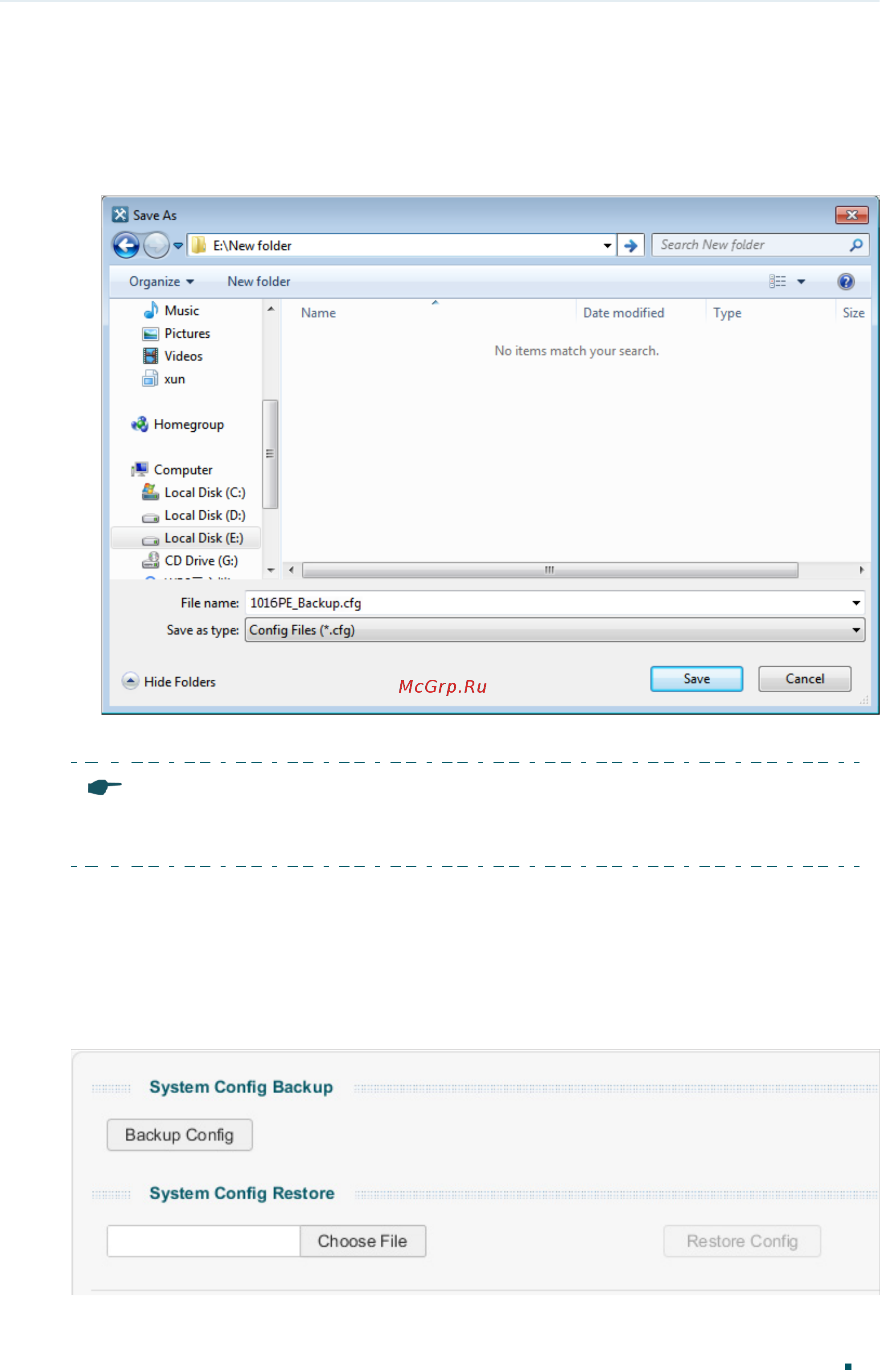

Figure 5-2 Saving the Configuration File
2) Click Save.
Note:
It will take a moment to save the configuration. Wait without any operation when saving the
configuration file.
5.2 Restoring to the Previous Configuration
Choose the menu System > Backup and Restore to load the following page.
Figure 5-1 Restoring System Config
