1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the control knob.
4. With a thin screwdriver, adjust the bypass screw po-
sition. If you change from natural gas 20 mbar (or
natural gas 13mbar
2)
) to liquid gas, fully tighten the
adjustment screw in. If you change from liquid gas to
natural gas 20 mbar, undo the by-pass screw approx-
imately 1/4 of a turn. If you change from natural gas
20 mbar to natural gas 13 mbar
2)
undo the by-pass
screw about 1/4 of a turn. If you change from liquid
gas to natural gas 13 mbar
2)
, undo the bypass screw
about 1/2 of a turn. If you change from natural gas 13
mbar
2)
to natural gas 20 mbar to tighten the by-pass
screw about 1/4 of a turn.

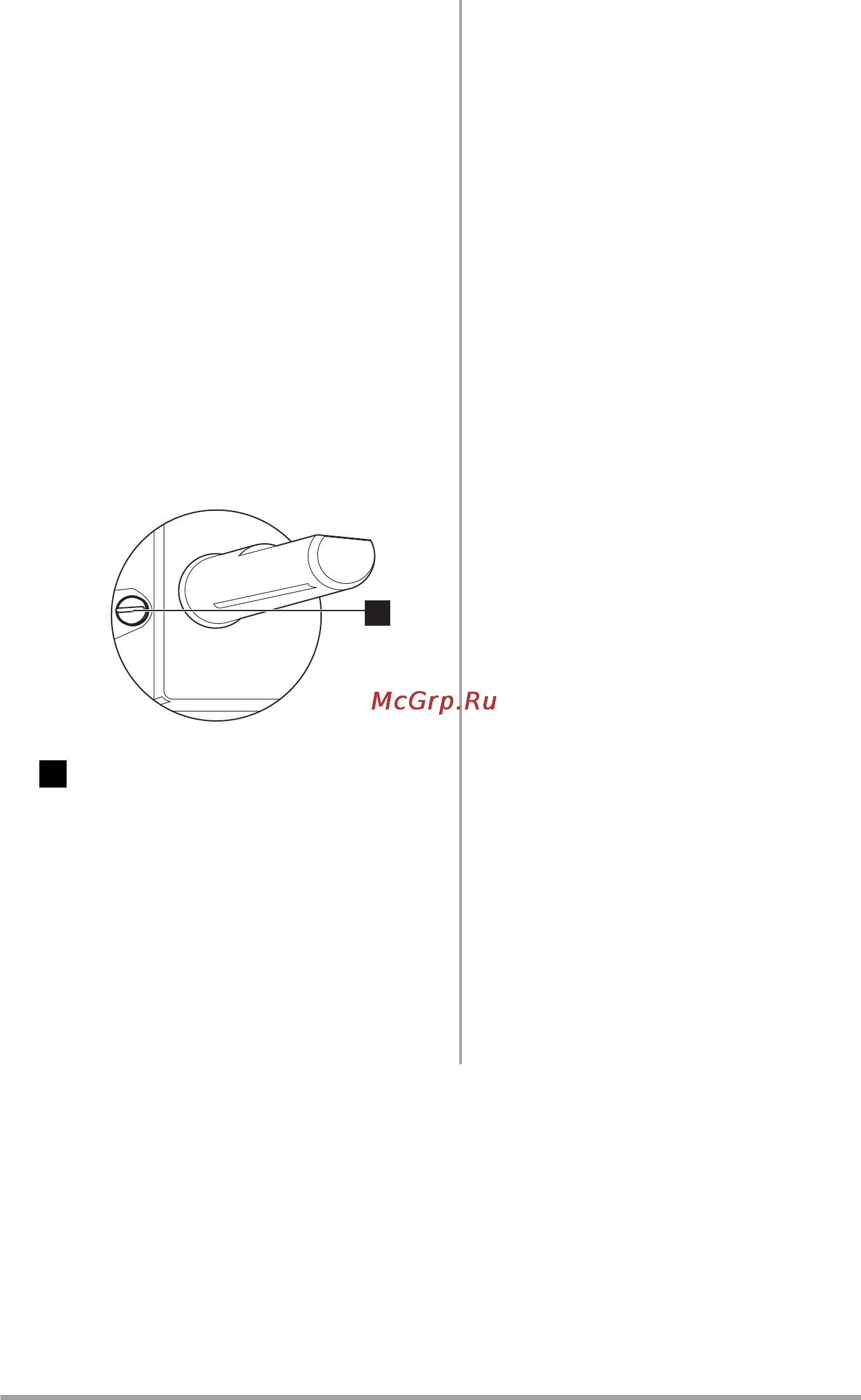

1
1 Minimum adjustment screw
5. Make sure the flame does not go out when you quick-
ly turn the knob from the maximum position to the
minimum position.
Electrical connection
• Ground the appliance according to safety precautions.
• Make sure that the rated voltage and type of power on
the rating plate agree with the voltage and the power of
the local power supply.
• This appliance is supplied with a mains cable. It has to
be supplied with a correct plug, able to support the
load marked on the identification plate. The plug has to
be fitted in a correct socket.
• Any electrical component must be installed or replaced
by the Service Force Centre technician or qualified
service personnel.
• Always use a correctly installed shockproof socket.
• Make sure that there is an access to the mains plug af-
ter installation.
• Do not pull the mains cable to disconnect the appli-
ance. Always pull the mains plug.
• The appliance must not be connected with an extension
cable, an adapter or a multiple connection (risk of fire).
Check that the ground connection is in conformity with
the standard and regulations force.
• The power cable must be placed in such a way that it
does not touch any hot part.
• Connect the appliance to the mains with a device that
lets to disconnect the appliance from the mains at all
poles with a contact opening width of minimum 3 mm,
eg. automatic line protecting cut-out, earth leakage
trips or fuse.
• None of a parts of the connection cable can not get a
temperature 90 °C. The blue neutral cable must be
connected to the terminal block label with "N". The
brown (or black) phase cable (fitted in the terminal
block contact marked with "L") must always be connec-
ted to the live phase.
Replacement of the connection cable
To replace the connection cable use only H05V2V2-F T90
or equivalent type. Make sure that the cable section is ap-
plicable to the voltage and the working temperature. The
yellow/green earth wire must be approximately 2 cm lon-
ger than the brown (or black) phase wire.
2) only for Russia
17
