Getting started
Click left mouse button on the faulty device and select Properties. If the device is
not working correctly, click Reinstall driver. Drivers can be found in the
DriveConfig installation folder. Default is C:\Program Files \DriveWare\ DriveConfig\
RFDT-02 Drivers\.
Select this folder and click OK.
It is possible that you need to install also USB Converter to DriveConfig, but this
procedure starts automatically and drivers for the converter can be found from
same folder as above.
Starting DriveConfig
To start DriveConfig, select Start – DriveWare – DriveConfig. DriveConfig main
window opens.

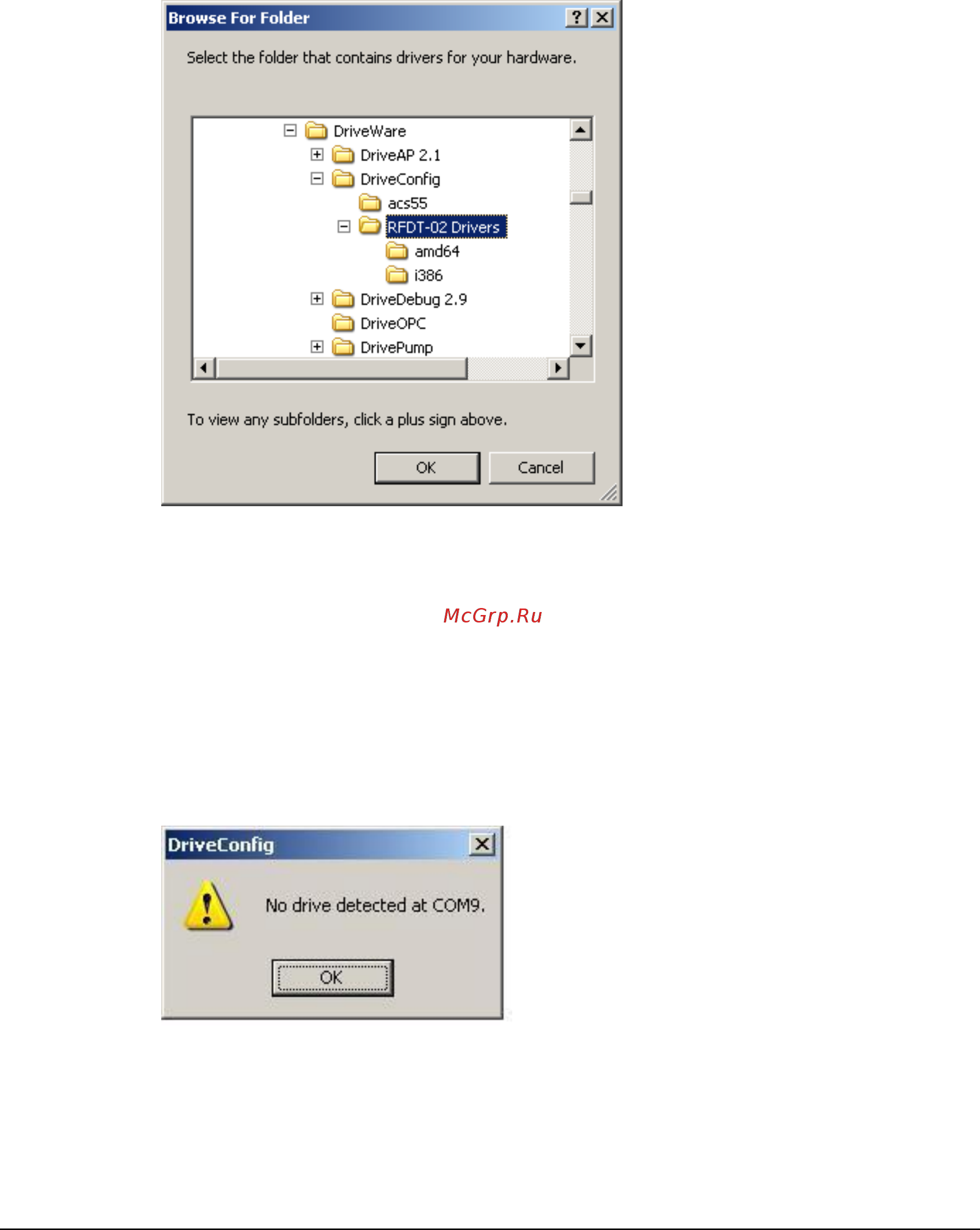

If DriveConfig cannot detect a drive the following dialog appears on the screen:
Figure 4. No drive detected
Click OK. The New Parameter File window appears.
