27
Parameters
To transfer the parameter file to the drive
In the Parameter Browser window, click the Transfer to drive button or in the
DriveConfig main window, select Parameter Browser – Transfer to drive.
Note: When transferring parameters between DriveConfig 1.2 and ACS55 drive
that has been factory-configured to firmware version 2200, you do not need to shut
down the drive to save parameters.

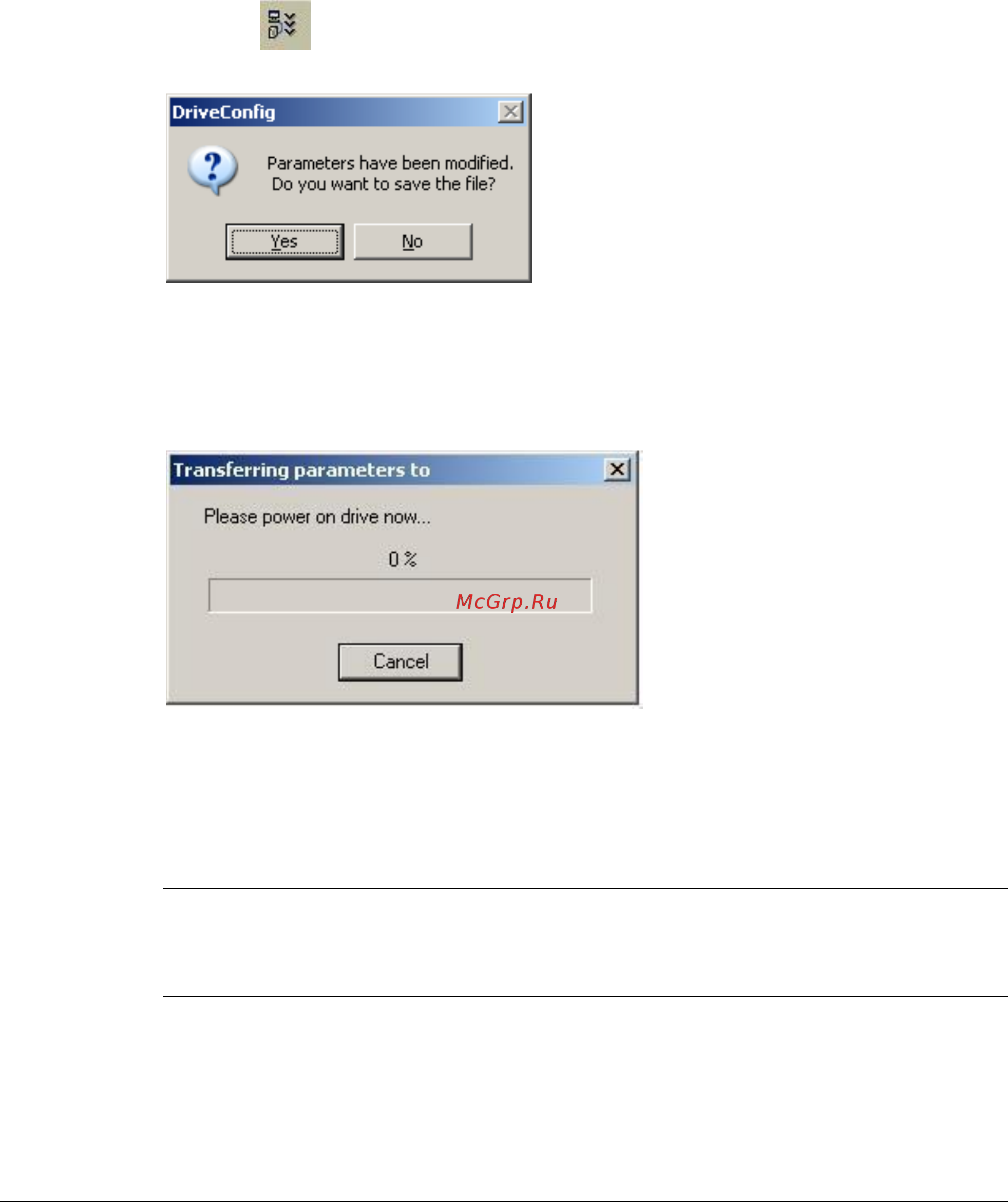

Pressing initiates the parameter download and results to (if any parameter
has been modified by the user):
Yes, you need to save the parameter file to your PC, Save dialog opens.
No, your changes are transferred to the drive.
A dialog (Figure 13) appears.
Figure 13. Transfer dialog
DriveConfig transfers the parameter file to the drive. When the parameter file has
been transferred to the drive, the values in Drive and File columns in the Parameter
Browser table are identical.
Note: If the transferred parameter file version differs from the drive firmware version
DriveConfig 1.2 asks to close and reopen the Parameter Browser to activate the
changes. Figure 14 appears.
