Drive monitoring

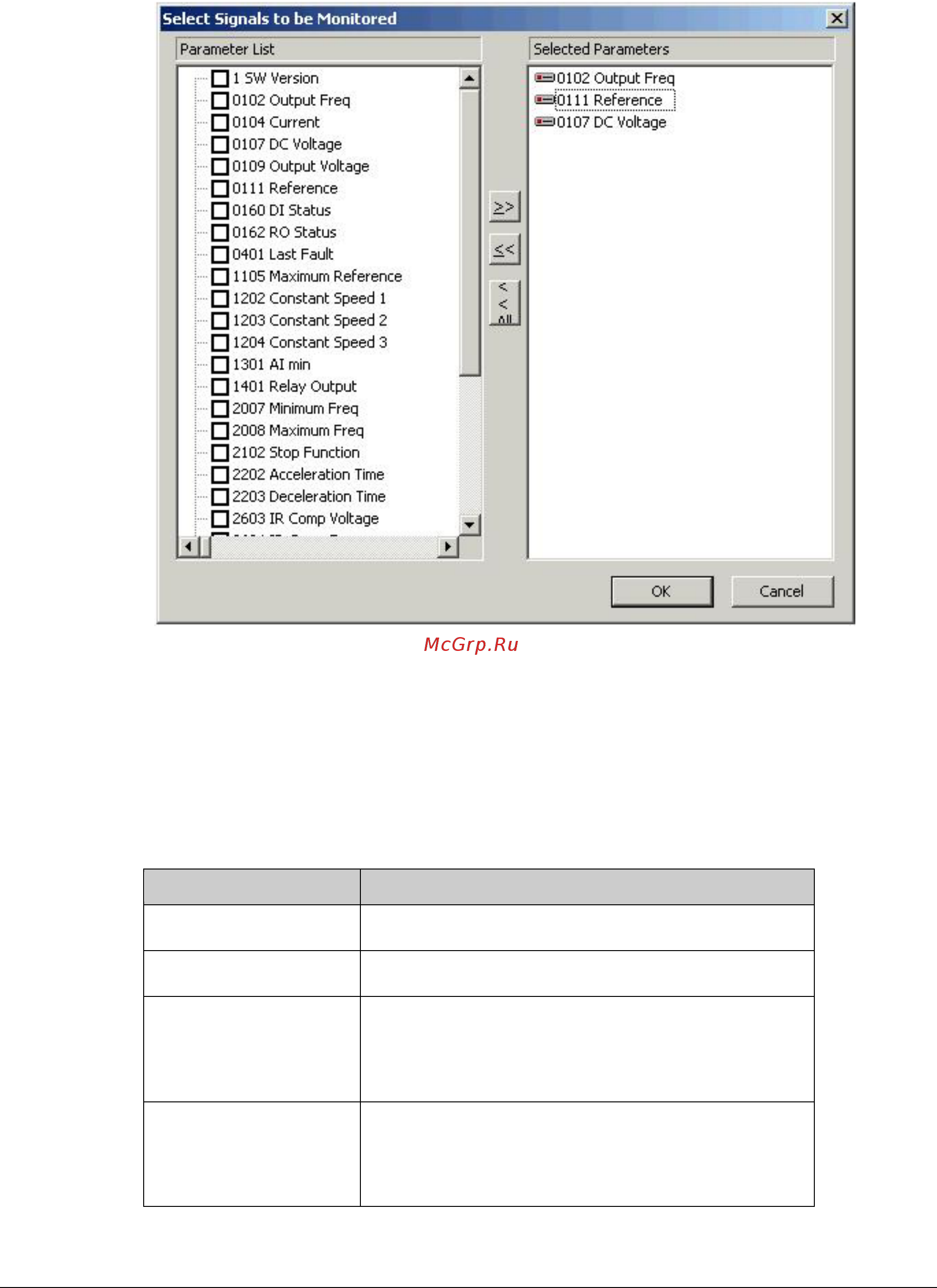

Figure 22. Select signals to be monitored
After you have selected the signals, they are displayed in the drop-down menu.
Select the signal to define the signal-specific settings for it. (In the figure above,
signal 0102 OUTPUT FREQ is selected.)
Table 6. Global monitoring settings
Dialog Item
Meaning
Sample Interval (ms)
Sample interval in milliseconds. The sample time is
between 20 and 10000 ms.
Manual Y-axis
Set the minimum and maximum values of the Y-axis
manually.
Auto Y-axis
The minimum and maximum values of the Y-axis are
calculated automatically.
Note: The values are calculated when enabling auto
mode and when in auto mode closing the parameter
subset selection window.
Max Y-axis
Maximum Y-axis value. In Auto Y-axis mode the value
for Y-axis maximum is the biggest maximum value of the
monitored parameters.
Note: The positive Y-axis values are limited to be under
200 000.
