Drive monitoring
Note: The drive must be online to start the monitoring.
Monitoring settings
You can select the monitored signals and define the monitoring settings in the
Monitoring Settings dialog.
To open the dialog, select Monitor – Monitor settings or click the Start
Monitoring button in the Monitor toolbar.

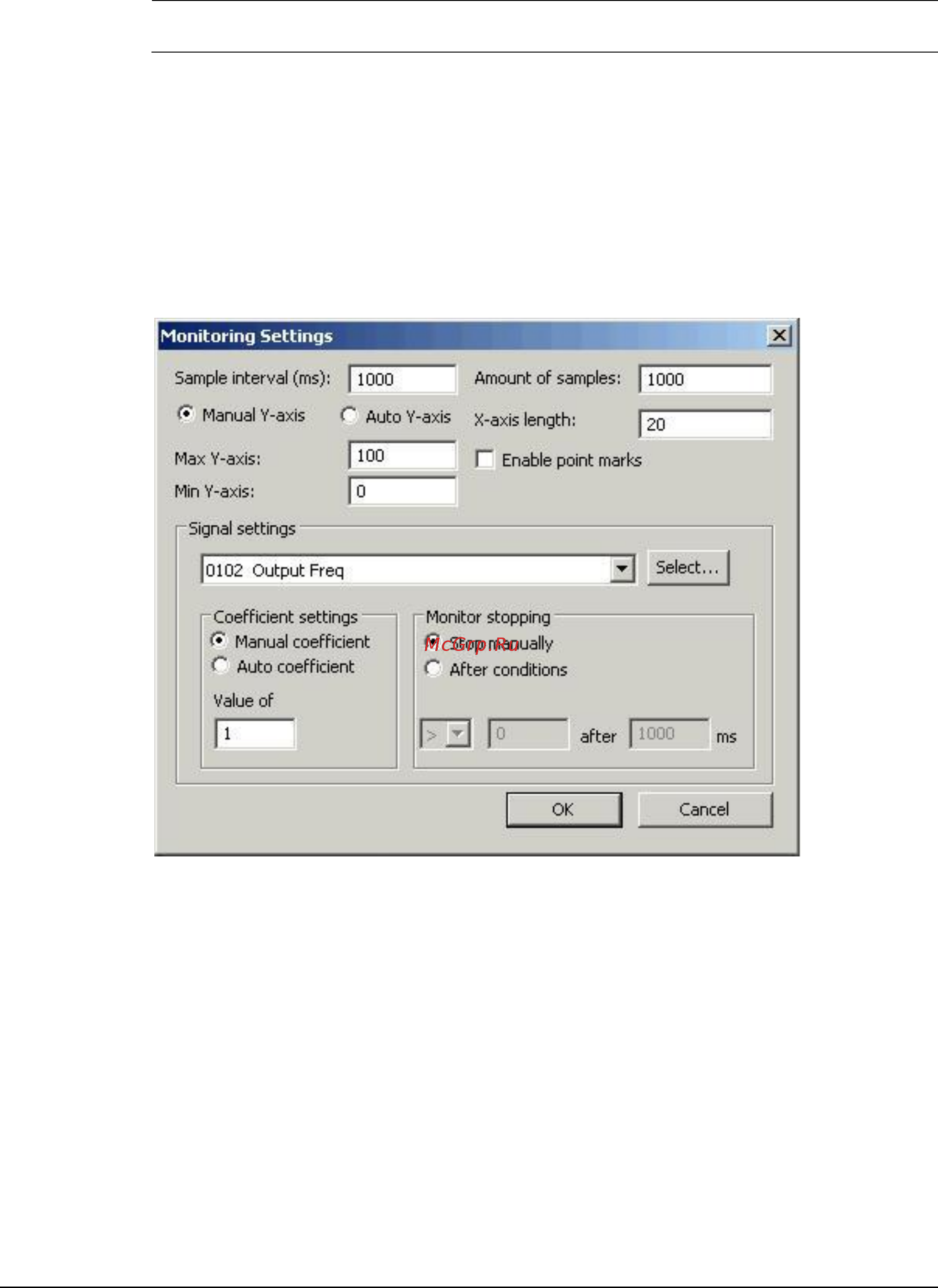

Figure 21. Monitoring settings
There are two kinds of settings: global settings and signal-specific settings.
Global settings are identical for all signals.
You can set the signal-specific settings individually for each signal. First, select the
signals displayed in the drop-down menu in the Start Monitoring dialog.
Click the Select… button next to the signal drop-down menu and select the signals
from the list. Note that signals belong to group 01.
