35
Drive monitoring
Drive monitoring
What this chapter contains
This chapter describes how to use DriveConfig to monitor the operation of the
connected drive.
Operation
You can use DriveConfig to monitor the operation of your connected drive. The
operational values can be shown in both graphical and numerical format and
monitoring data can be saved to a file for later use.
Monitoring is controlled using the Monitor toolbar. To show the Monitor toolbar, click
Monitor in the DriveConfig main window. The Monitor window appears with the
Monitor toolbar at the top of it.

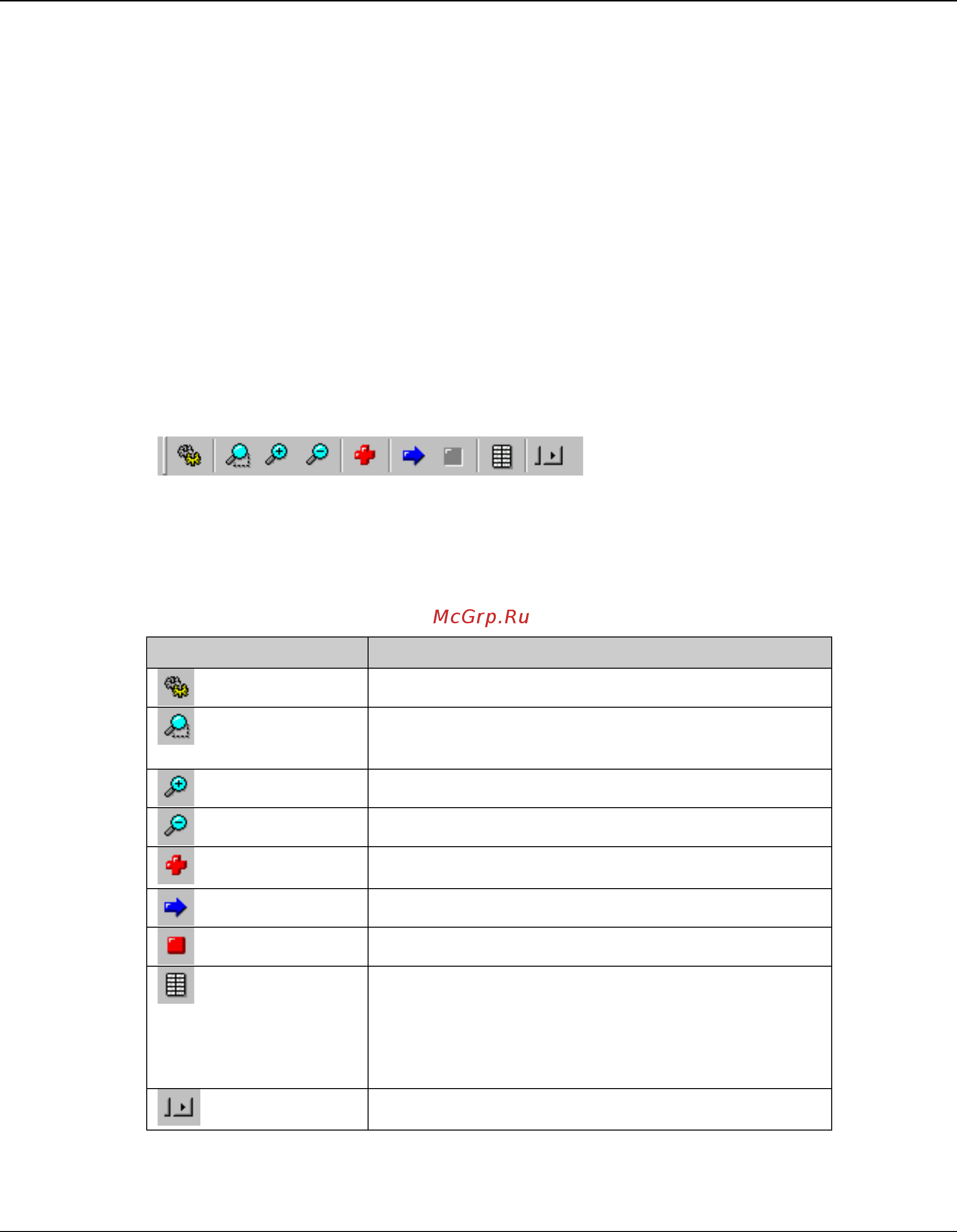

Figure 20. Monitor toolbar
The Monitor toolbar has the following buttons:
Table 5. Monitor toolbar buttons
Button
Function
Open monitor settings
Start lasso zoom. An area can be selected with the
mouse. Lasso zoom mode can be disabled with a
second click on this button.
Zoom in the trend line graph
Zoom out the trend line graph
Clear the monitoring data from the numeric screen, from
the graph and from application's memory
Start monitoring
Stop monitoring
Show monitor data in numerical format. You can open
several numerical windows in order to compare
monitoring data.
Note: In numerical format the values are shown
multiplied with the coefficient set either manually or
automatically.
Activate auto scroll. Scrolls automatically to the
rightmost position.
