33
Drive control panel
Drive control panel
What this chapter contains
This chapter describes how to use the Drive control panel to control the drive.
Operation
You can use the Drive control panel to control the drive operation.
To view or hide the Drive control panel, select View - Drive Control Panel.
You can also find all drive operation commands from the Drive - Control Panel
menu. The Drive control panel has the following buttons:

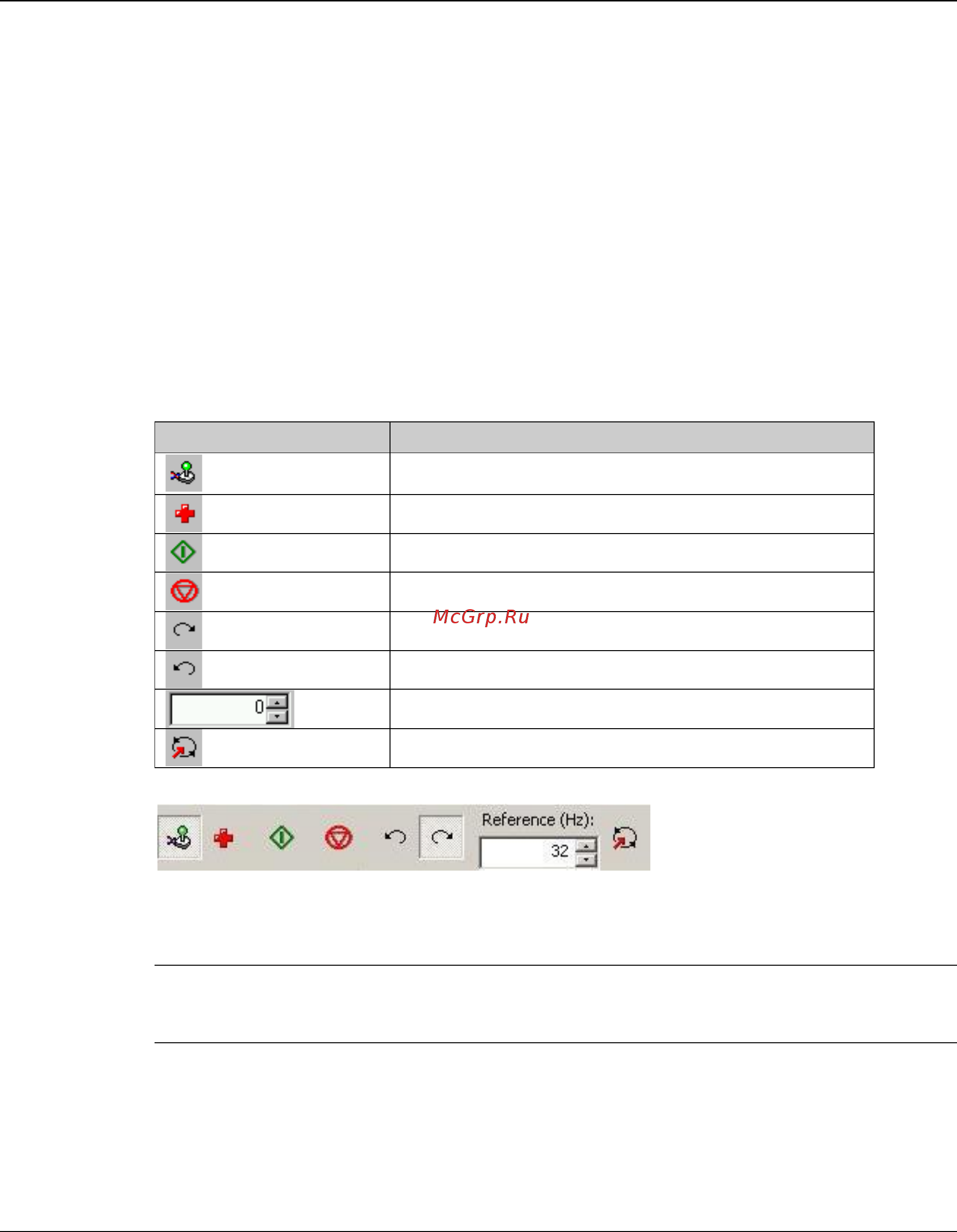

Table 4. Drive control panel buttons
Button
Function
Take control – Release control. When control has been
released, the other buttons are disabled.
Reset the active fault on drive
Start the drive
Stop the drive
Run forward
Run reverse
Frequency reference edit box
Download the frequency reference to drive.
Figure 19. Drive control panel
Note: The new reference becomes active when either <return> or the rightmost
button in Figure 19 is pressed.
