Drive status
Drive status
What this chapter contains
This chapter describes how to use the Drive status panel.
Drive status panel
The Drive status panel is located on the left side of the DriveConfig main window.
To view or hide the Drive status panel, select View – Drive status.
The Drive status panel shows the following information about the drive:
type of the drive
running/stopped
output frequency [Hz]
current [A]
drive status (OK or Fault). If the drive status is Fault, the fault description
appears in the panel below the drive status indicator. Fault descriptions can be
found on page 43.
The lower part of the Drive Status panel contains the following function buttons:
Parameter Browser – changes to the Parameter Browser window
Monitor – changes to the Monitor window.

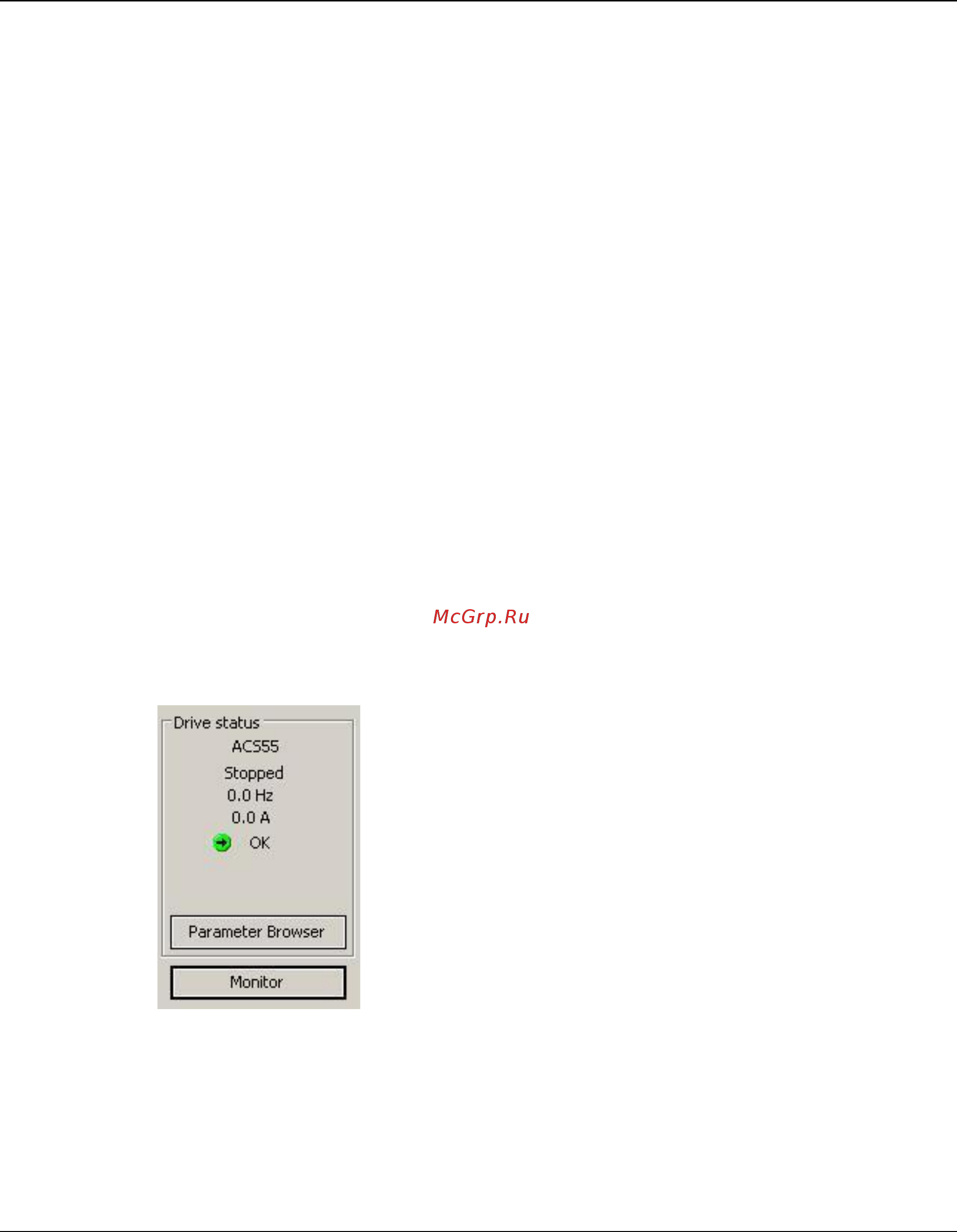

Figure 8. Normal drive status
