Parameters

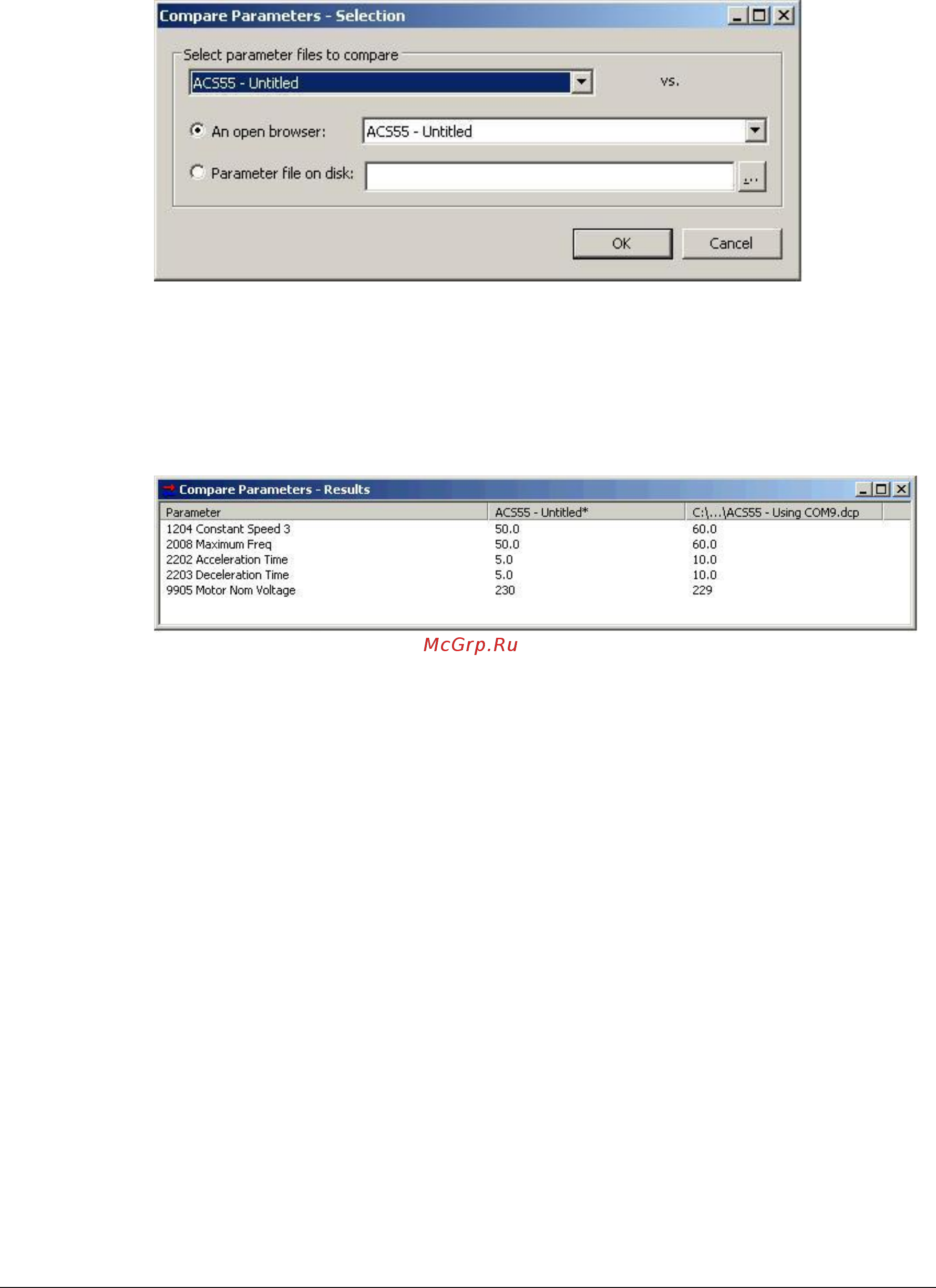

Figure 16. Compare Parameters selection

Select the files to compare and click OK. The Result window shows the differing

parameter names in the first column. The second column shows the value in the

active browser and the third column the value in the other browser window or

parameter file.

Figure 17. Results of Compare Parameters
