9
• When you see unusual behaviour of the tool or hear strange noises,
immediately switch off the tool and remove the plug from mains
socket.
• To ensure proper cooling keep ventilation holes in the power tool
body unobstructed.
• Before connecting the power tool to mains socket make sure the
supply voltage matches the voltage on the rating plate of the tool.
• Each time before connecting the power tool check the power cord, in
case of damage hand over to authorized workshop for replacement.
• Power cord of the power tool always must be on the safe side, where
there is no danger of accidental damage by operating power tool.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries at work.

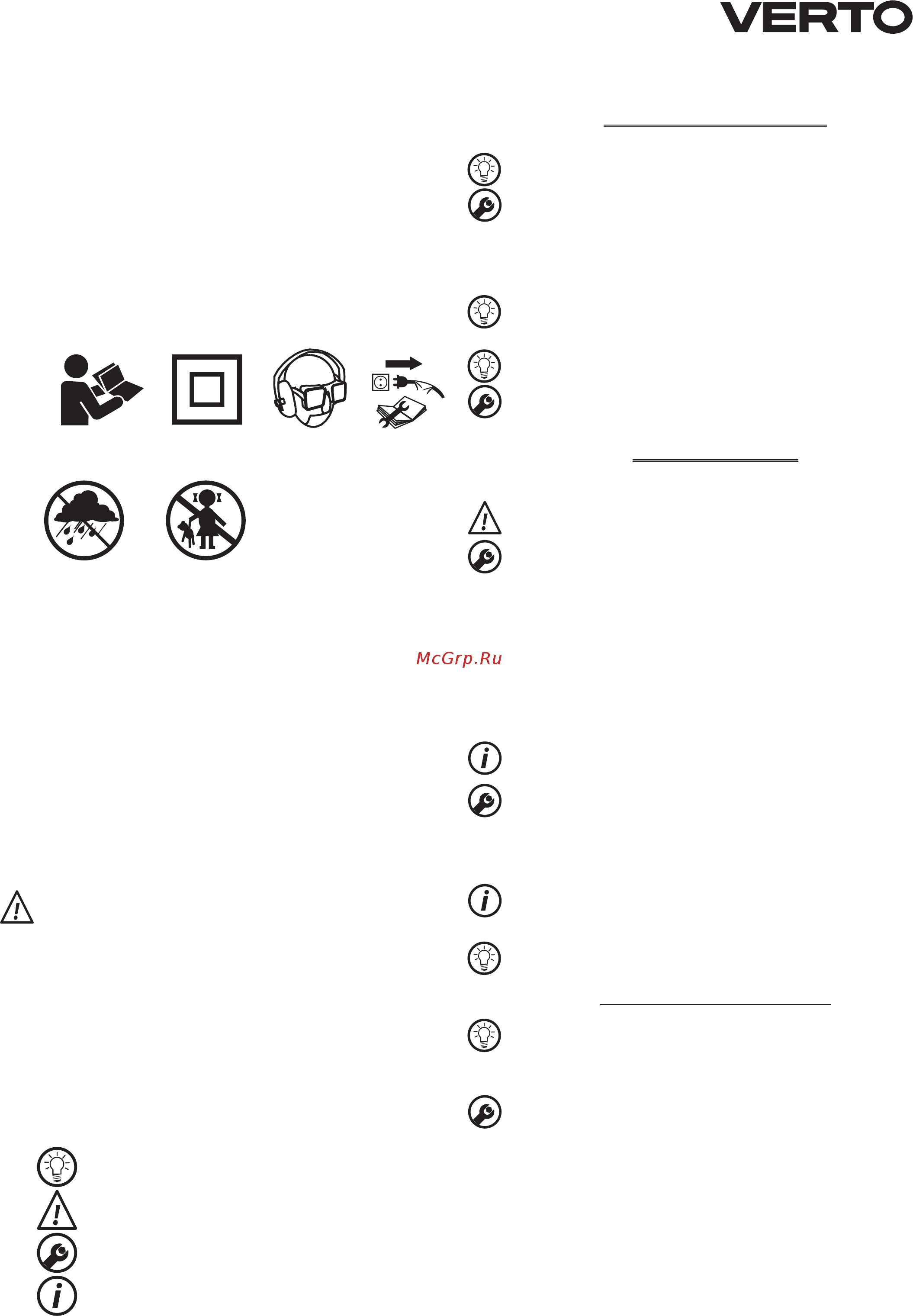

Explanation of used symbols
1234
56
1. Read instruction manual, observe warnings and safety conditions
therein.
2. Device with class II insulation.
3. Use personal protection measures (protective goggles, earmuff
protectors, anti-dust mask).
4. Disconnect the power cord before starting maintenance or
operation.
5. Protect against rain.
6. Keep the tool away from children.
CONSTRUCTION AND USE
Reciprocating saw is a hand-held power tool with insulation class II.
It is driven by a single-phase commutator motor. The tool is designed
for making straight, coarse cuts, curved cuts and holes in wood, wood-
based materials, plastics and metals (provided that appropriate blade is
used). Range of use covers repair and building works, and any work from
the range of individual, amateur activities (tinkering).
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Blade
2. Blade holder
3. Carbon brush cover
4. Switch lock button
5. Switch
6. Footplate fixing screws
7. Footplate
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Blade - 2 pcs
2. Hexagonal key - 1 pce
PREPARATION FOR OPERATION
BLADE INSTALLATION
Disconnect the power tool from power supply.
Installation and removal of the blade is toolless.
• Turn the ring of the blade holder (2) and slide the blade into the holder
until it stops (g. A).
• Release the ring of the blade holder (2) (the ring will return to the
default position).
• Pull the blade lightly to make sure it is properly fixed.
If the ring of the blade holder does not return to the default
position, turn the ring manually.
FOOTPLATE ADJUSTMENT
Disconnect the power tool from power supply.
• Loosen the footplate fixing screws (6).
• Set the footplate (7) to required distance (g. B).
• Tighten the footplate fixing screws (6).
OPERATION / SETTINGS
SWITCHING ON / SWITCHING OFF
The mains voltage must match the voltage on the rating plate of
the saw.
Switching on – press the switch button (5).
Switching o – release pressure on the switch (5).
Locking the switch (continuous operation)
Switching on:
• Press the switch button (5) and hold in this position.
• Press the switch lock button (4) (g. E).
• Release pressure on the switch button (5).
Switching o:
• Press and release the switch button (5).
OPERATION SPEED ADJUSTMENT
Working speed is controlled with pressure on the switch button (5).
CUTTING
• Put front part of the footplate (7) flat on the material that you plan
to cut (g. F).
• Start the saw and adjust working speed to properties of processed
material.
• Move the saw slowly and guide the blade along previously set cutting
line (g. G).
Cut at a steady rate, be careful not to overload the saw. Excessive pressure
applied on the blade will suppress operation and will affect cutting
efficiency unfavourably.
During operation whole surface of the footplate should contact
surface of the processed material.
OPERATION AND MAINTENANCE
Unplug the power cord from the mains socket before commencing
any activities related to installation, adjustment, repair or
maintenance.
MAINTENANCE AND STORAGE
• Cleaning the device after each use is recommended.
• Do not use water or any other liquid for cleaning.
• Do not use any cleaning agents or solvents, they may damage plastic
parts.
• Clean the tool with a dry cloth or blow with compressed air at low
pressure.
• Clean ventilation holes in the motor casing regularly to prevent device
overheating.
• In case of excessive commutator sparking, have the technical
condition of carbon brushes of the motor checked by a qualified
person.
• Always store the tool in a dry place, beyond reach of children.
