General Outline ESIE07-04
1–116 Part 1 – System Outline
3
1
1
4
5
1.62 Outlook Drawing: EWAD650BJYNN, EWAD650BJYNN+OPRN and
EWAD650BJYNN+OPLN

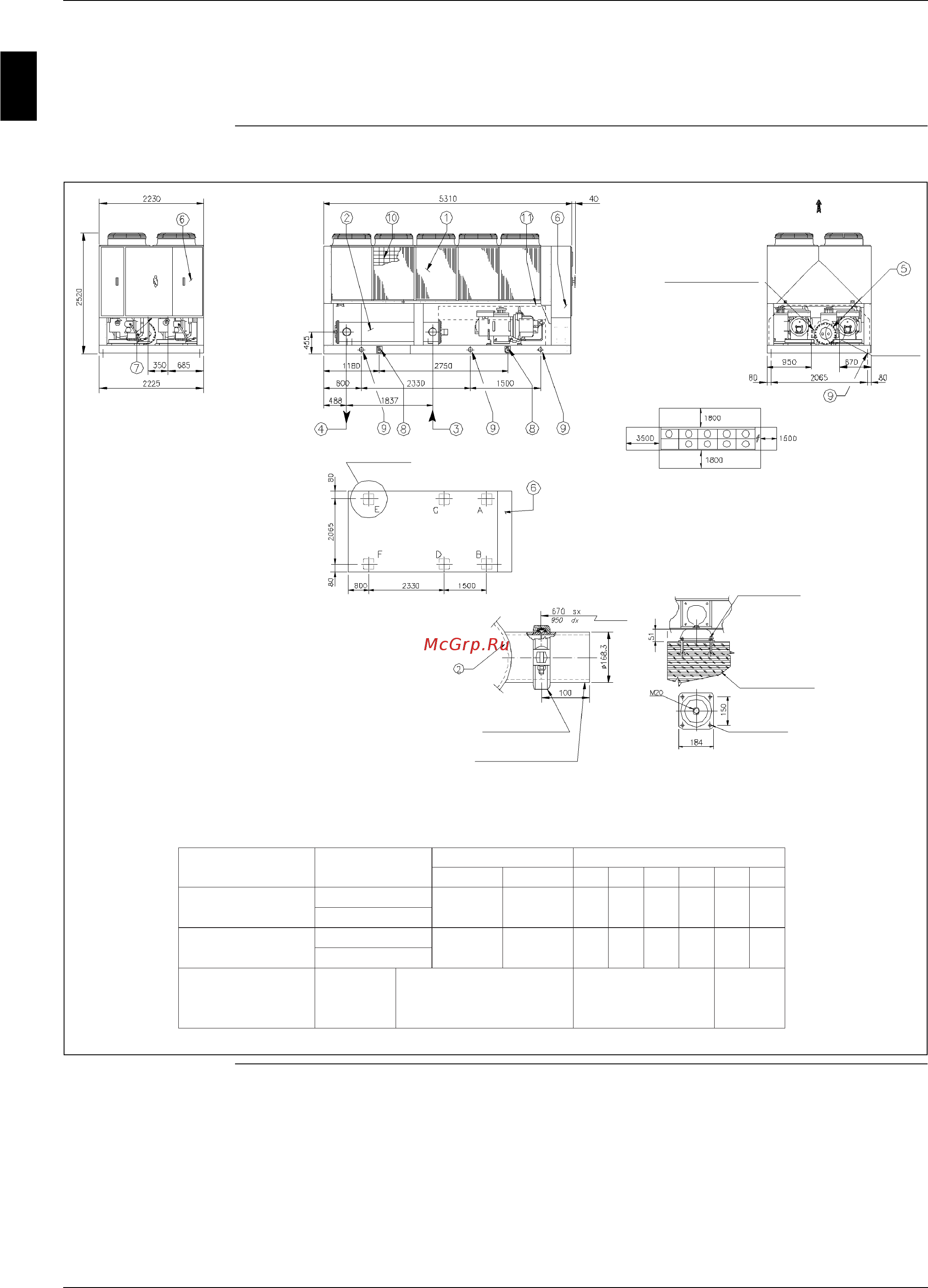

The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
(Frame)
(Control box)
Air discharge
See
detail B
Fan arrangements and minimum
clearance requirements
See detail A
Isolators location
Detail "A" rubber isolator
Fixing bolt (not furnished)
Refer
Detail B
''Victaulic''coupling-furnished
Connecting pipe-furnished
Concrete footing
I.D. 13 N. 4 holes
Optional right hand
evaporator water
Version Condenser Type
Weight KG
Type (q/ty)
786010-m
(4 Pz.)
786010-v
(2 Pz.)
Shipping Operating A B C D E F
1010 1090 800 860 690 6804810 5130
Isolators load KG
Aluminum
Acrylic coated
Rubber isolators
EWAD650BJYNN
EWAD650BJYNN+OPRN
EWAD650BJYNN+OPLN
EWAD650BJYNN
EWAD650BJYNN+OPRN
1070 1150 860 920 690 6805150 5370
Aluminum
Acrylic coated
EWAD650BJYNN+OPLN
