OPTIONS
100 Pa ESP (INVERTER FANS) (OP. code 160B – XS/XL Double V Coil units only)
OP. incompatibility 99 99a 42 142A 142B 142C 160 160C 161B
Special VFD fans providing 100 Pa ESP. The envelope doesn’t change if the option is selected. Check the CSS for
more information.
100 Pa ESP (BRUSHLESS FANS) (OP. code 160C – SS/SL Double V Coil units only)
OP. incompatibility 99 99a 42 142A 142B 142C 160 160B 161B
Special Brushless fans providing 100 Pa ESP. The envelope doesn’t change if the option is selected. Check the
CSS for more information
200 PA ESP (BRUSHLESS FANS) (OP. code 161B – Double V Coil units only)
OP. incompatibility 42 99 99a 142A 142B 142C 160 160B 160C
Special Brushless fans providing 200 Pa ESP. The envelope doesn’t change if the option is selected. Check the
CSS for more information.
VERSION
100Pa ESP ON/FF FANS
(OP.160)
100Pa ESP FANS
+ FAN MOD (OP.160B/C)
200Pa ESP FANS
+ FAN MOD (OP161B)
PARALLEL COIL LAYOUT
SS/SL
OP.160
NA
NA
PARALLEL COIL LAYOUT
SR
NA
NA
NA
PARALLEL COIL LAYOUT
XS/XL
OP.160
NA
NA
PARALLEL COIL LAYOUT
XR
NA
NA
NA
VERSION
100Pa ESP ON/FF FANS
(OP.160)
100Pa ESP FANS
+ FAN MOD (OP.160B/C)
200Pa ESP FANS
+ FAN MOD (OP.161B)
DOUBLE V COIL LAYOUT
SS/SL
NA
OP.160C
OP.161B
DOUBLE V COIL LAYOUT
SR
NA
NA
NA
DOUBLE V COIL LAYOUT
XS/XL
NA
OP.160B
OP.161B
DOUBLE V COIL LAYOUT
XR
NA
NA
NA

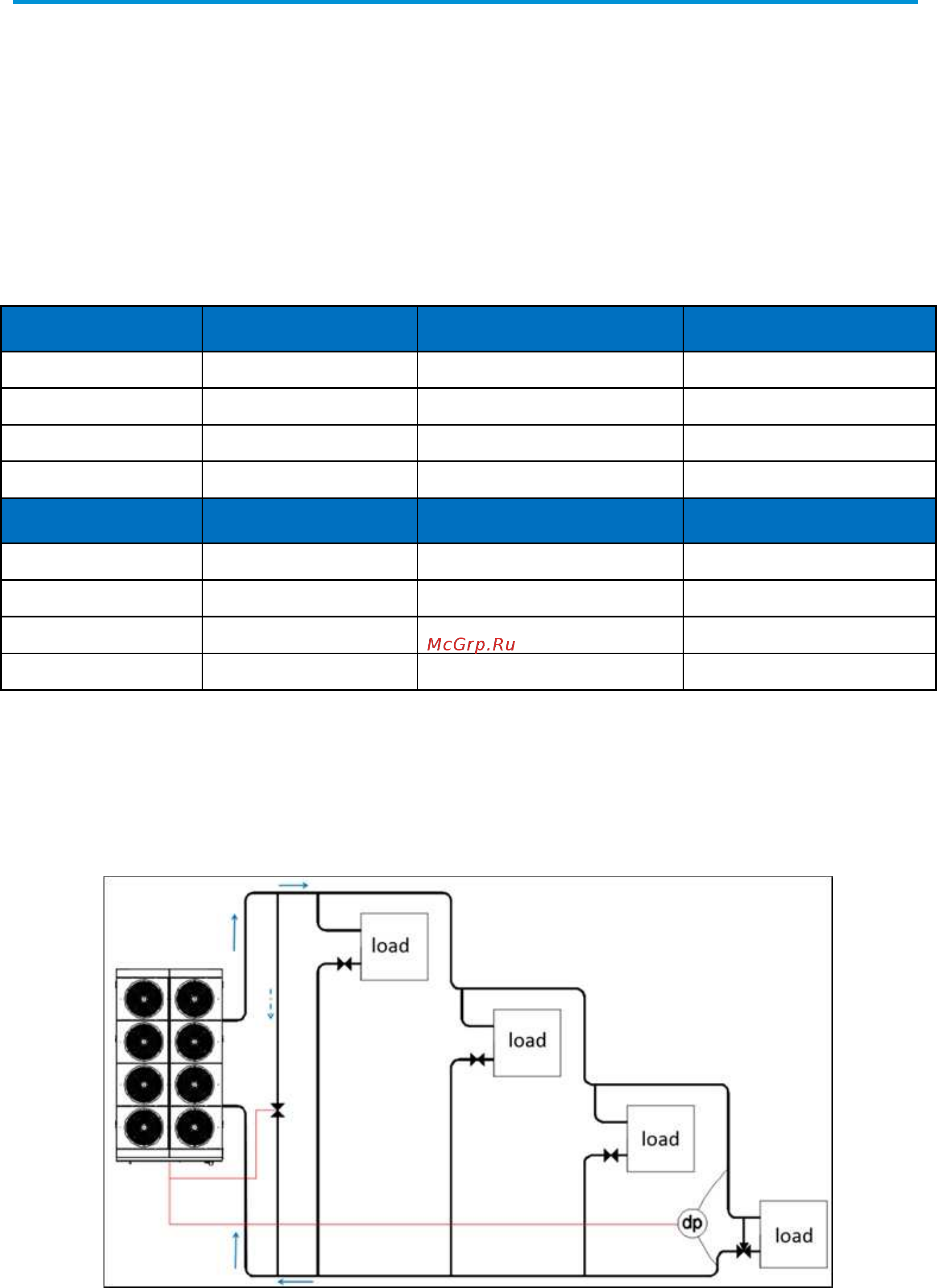

Variable Primary Flow (OP. code 143)
By selecting OP. 143 the unit can manage the Variable Primary water flow according to the differential pressure
measured in a specific point of the plant, selected by the plant designer. The differential pressure transducer is
available as option from the factory (OP. code 144). Once installed, the differential pressure transducer must be
connected to the unit. As an alternative the unit controller can receive directly the differential pressure value
from an external BMS communicating with the standards communication protocols (eg. MODBUS).
