9 | 75
OPTIONS
Standard Options (supplied on basic units)
Alucoat fins coil (opt. code 49 – provided as standard)
Fins are protected by a special acrylic paint with a high resistance to corrosion.
Double set point (opt. code 10 – provided as standard)
Possibility to pre-set two different chilled water temperature set points (cooling mode).
Evaporator Victaulic KIT (opt. code 20 – provided as standard)
It includes the victaulic joint and the counter pipe fitted with victaulic groove to be welded with the plant pipes -
Opt. incompatibility 21.
20mm Evaporator insulation (opt. code 29 - provided as standard)
The heat exchanger is fitted as standard with 20mm closed cell insulation material.
Evaporator electric heater (opt. code 57 – provided as standard)
Electronic expansion valve (opt. code 60 – provided as standard)
Ambient outside temperature sensor and set-point reset (opt. code 67 – provided as standard)
Setpoint Reset: The leaving water temperature set-point can be overwritten through an external 4- 20mA signal,
through the ambient temperature, or through the water temperature ΔT.
Hour run meter (opt. code 68 – provided as standard)
General fault contactor (opt. code 69 – provided as standard)
Alarm from external device (opt. code 70)
The unit controller is able to receive an external alarm signal. The user can decide whether this alarm signal will
stop the unit or not.
Main switch interlock door (opt. code 97 – provided as standard)
Master / Slave (opt. code 128 – provided as standard)

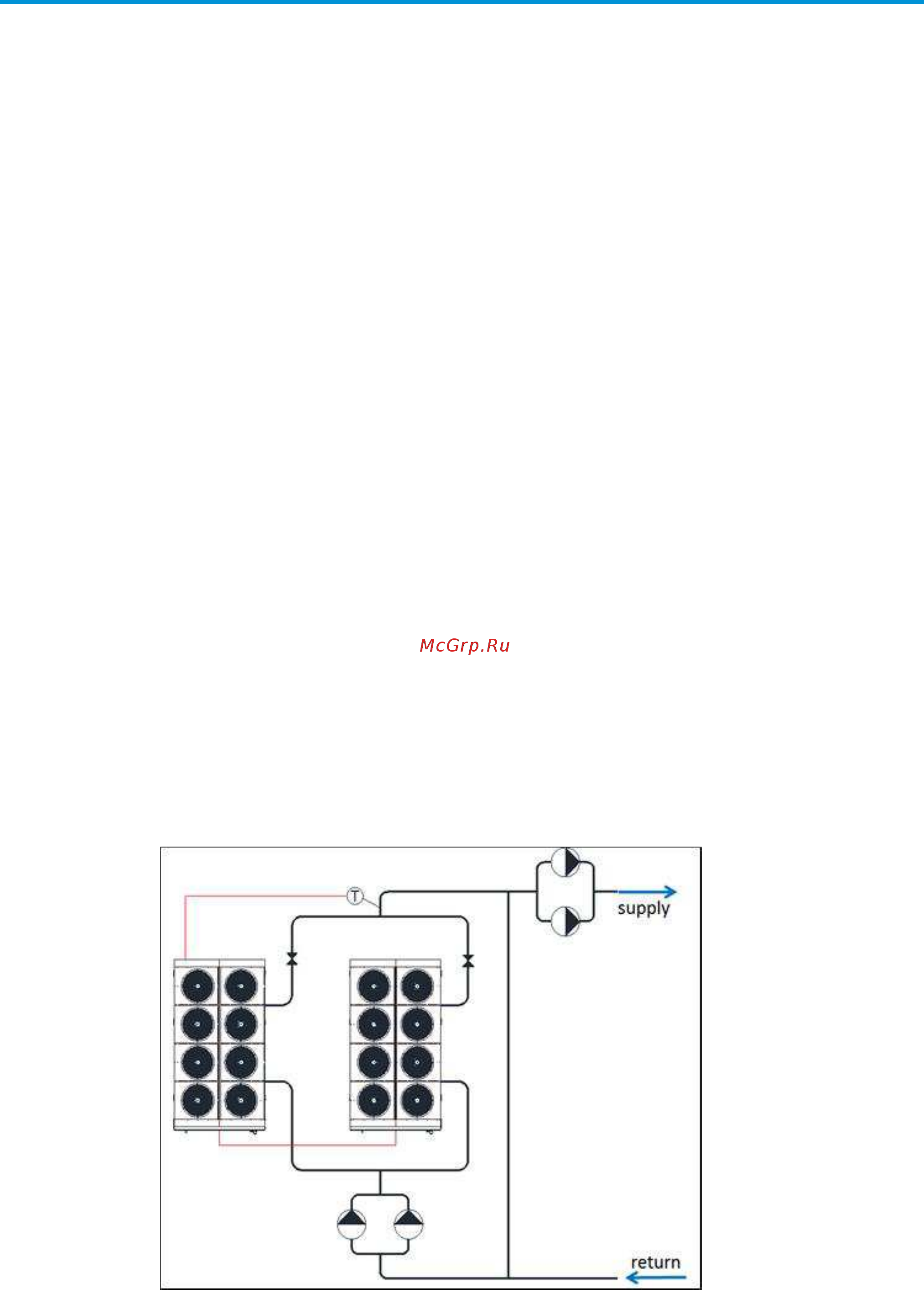

The EWYT~B features the new DAIKIN Master/ Slave (M/S) control. Once set which unit has the role of master,
the other(s) will operate as slave(s) based on the inputs provided by the master.
The units must be installed in parallel in the hydronic plant.
With Master/Slave control is possible to balance the working hours of the compressors enhancing reliability and
extending the life of the system
