SOUND LEVELS
51 | 75

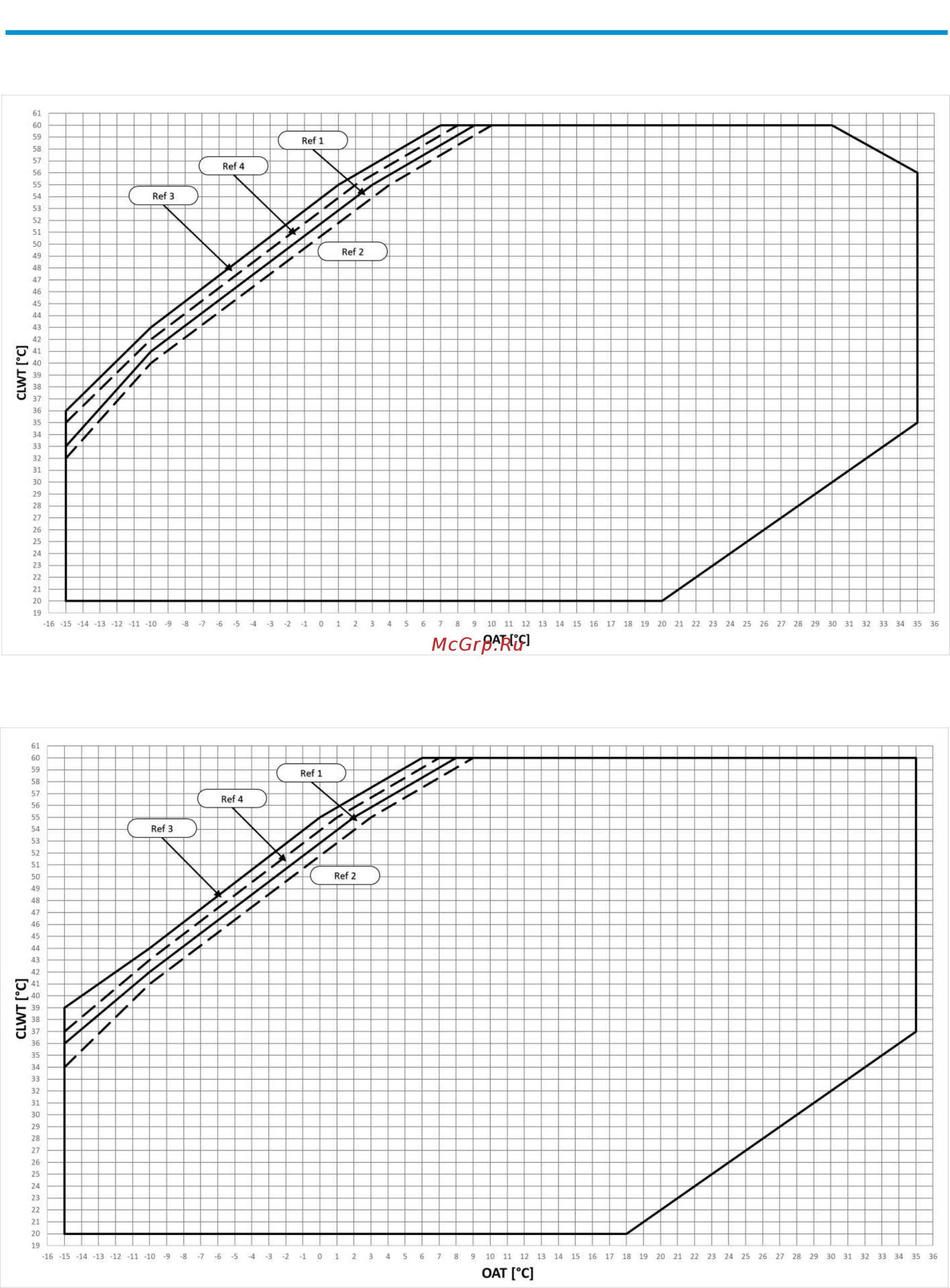

ENVELOPE
EWYT~B-S (SILVER SERIES) - Parallel and Double-V Coil - HEATING
EWYT~B-X (GOLD SERIES) - Parallel and Double-V Coil - HEATING
The above graph refers to the unit operating at full load. Unit may be able to operate outside the above envelope with
compressors unloading. Please contact factory for further details.
The above graphic represents a guideline about the operating limits of the range. Please refer to the latest Unit Selection
Software (CSS) for real operating limits working conditions for each size.
