GENERAL CHARACTERISTICS
3 | 75

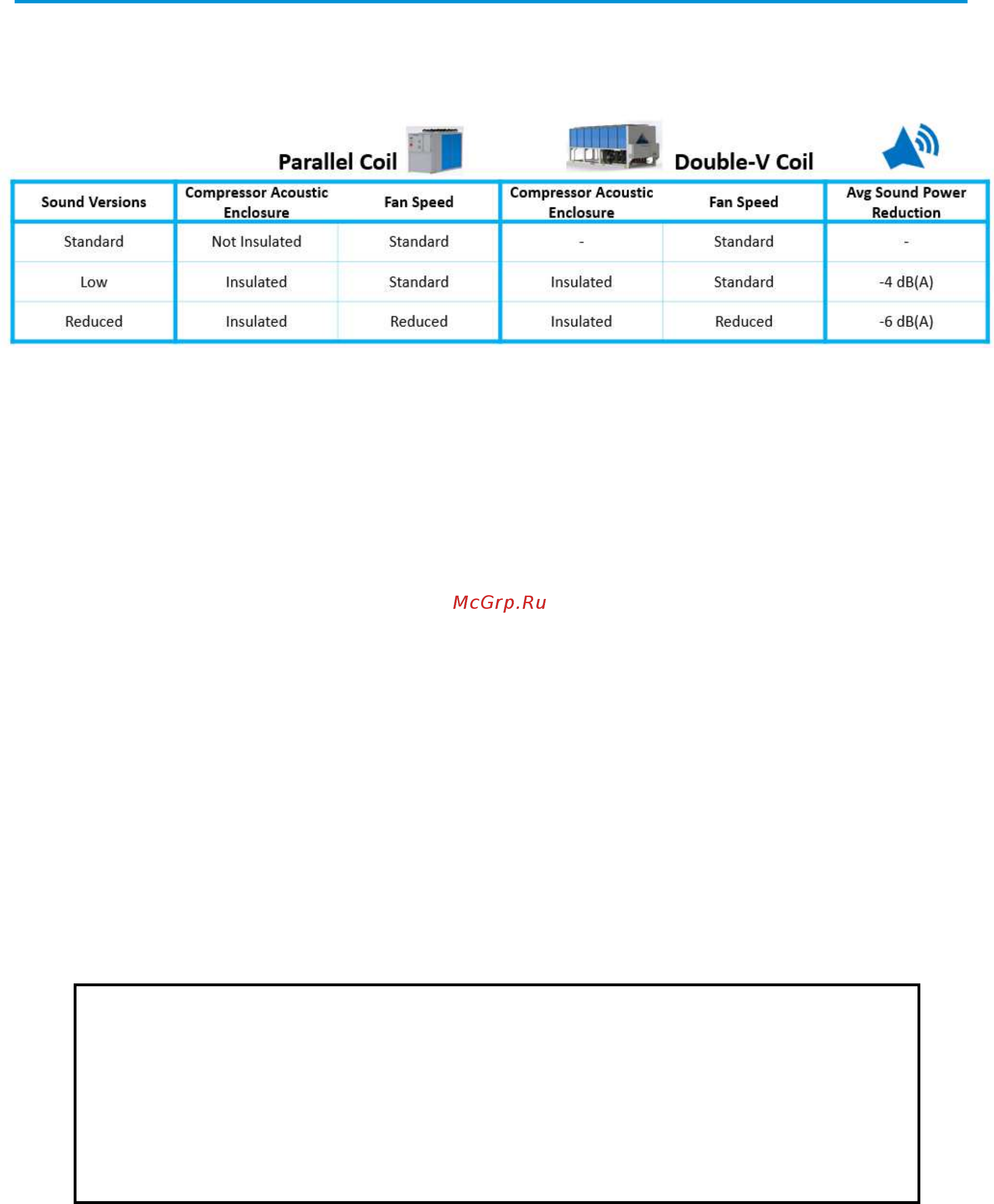

- 3 noise versions: Standard, Low and Reduced each one carefully designed to meet the acoustic
requirements of the installation site.
Outstanding reliability.
The unit have one or two truly independent refrigerant circuits with two or three compressors, to assure maximum
safety for any maintenance, whether planned or not.
Condensation control.
Parallel Coil units are standardly equipped with continuous fan speed modulation (phase cut) to ensure precise
airflow control and optimized condensing temperature. Double V Coil units are equipped with fan speed modulation
(VFD) on request (standard on Reduced noise units).
Fan silent mode.
Units equipped with fan modulation are standardly supplied with fan silent mode. This feature allows the user to
set up detailed time bands to reduced fan rotation speed and therefore sound emission in those areas where night
quietness is a mandatory requirement (detailed values are available on CSS selection software).
Superior control logic.
Superior control logic The MicroTech 4 controller provides an easy to use control environmental. The control logic is
designed to provide maximum efficiency, to continue operation in unusual operating conditions and to provide a
history of unit operation. One of the greatest benefits is the easy interface with LonWorks, Bacnet, Ethernet TCP/IP
or Modbus communications. Integrated sequencing control is provided allowing to connect units (up to 4) operating
as a single bigger unit.
Dynamic Condensing Pressure Management.
Superior software logic has been developed to get the highest efficiency at whichever operating condition: thanks
to the Dynamic Condensing Pressure Management the unit controller adjusts the condensing pressure set-point to
minimize the overall unit power input.
Code requirements – Safety and observant of laws/directives
Units are designed and manufactured in accordance to the following directives and harmonized standards:
Low voltage directive
DIRECTIVE 2014/35/EU
Electromagnetic compatibility (EMC)
DIRECTIVE 2014/30/EU
Machinery directive
DIRECTIVE 2006/42/EC
Pressure equipment desing
DIRECTIVE 2014/68/EU
Ecodesing
DIRECTIVE 2009/125/EC
Safety of machinery
EN 60204-1
EMC - Part 6-2
EN 61000-6-2
EMC - Part 6-4
EN 61000-6-4
Safety and environmental requirements
EN 378-1; EN 378-2; EN 378-4
Methods for calculation pressure relief devices.
EN 13136
Certifications.
Units are CE marked, complying with European directives in force, concerning manufacturing and safety. On request
units can be produced complying with laws in force in non-European countries (ASME, GOST, etc.), and with other
applications.
