GENERAL CHARACTERISTICS
2 | 75
Low operating cost.
The new Daikin BLUEVOLUTION Heat Pump series (EWYTB-) is the result of careful design aimed to optimize the
energy efficiency and thus the total life cycle cost, with reduced operating cost thanks to outstanding performances
and reliability.
The Heat Pump feature high efficiency scroll compressor arranged in tandem or trio configuration on each refrigerant
circuit, optimized condensing section with advanced technology condensing fans and plates Water Side Heat
Exchanger with low refrigerant content and reduced pressure drops.
Low environmental impact.

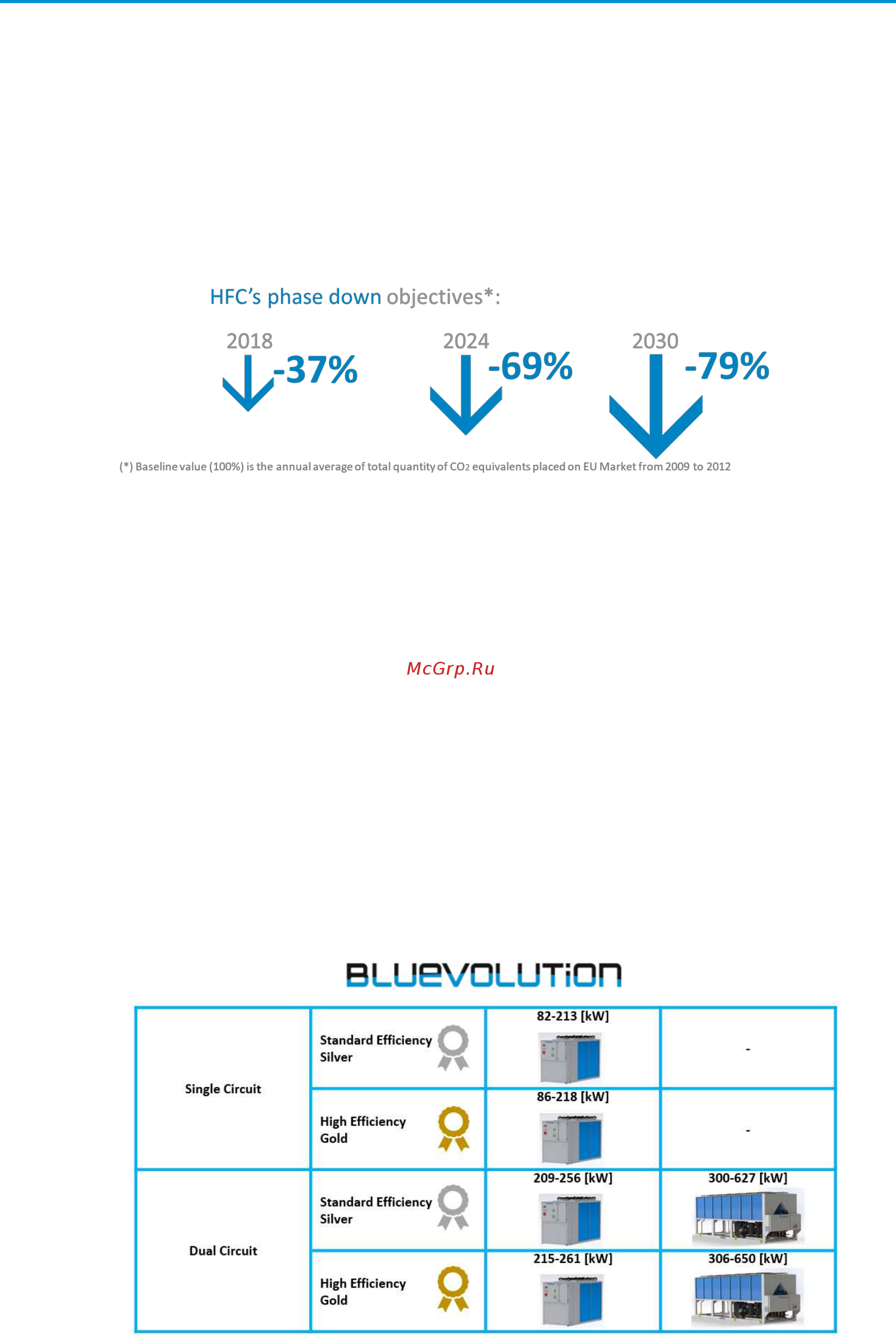

Latest revision of F-GAS, entered into force in 2015, set up a phase down program for traditional HFC’s refrigerants.
In 2018 first significant reduction step will be introduced (37%) and in 2030 the reduction (calculated in equivalent
CO2 tons) will need to achieve almost 80%.
The new Daikin BLUEVOLUTION Heat Pump uses R-32 refrigerant to reduce drastically the carbon footprint of the
unit. The selection of R-32 (chemical name difluoromethane) minimises the global warming impact of scroll
compressor units thanks to the lower Global Warming Potential in combination with high-energy efficiency.
The Global Warming Potential of R-32 is 675, which is only one third of the commonly used refrigerant R-410A.
Thanks to the lower flammability classification (R-32 refrigerant is classified A2L in ISO817), it can be safely used in
many applications including chilled water systems. Being a single component refrigerant, R-32 is also easier to recycle
and reuse, that is another environmental plus in its favour.
Daikin has a long history of continuous reduction of the environmental impact of cooling, heating and refrigeration,
having a unique expertise that comes from manufacturing both refrigerants and equipment. This position is one of
the results of company's corporate philosophy to "Be a Company that Leads in Applying Environmentally Friendly
Practices".
Regarding refrigerant choice, Daikin has expertise in using fluorinated (HFC, HFO) as well as non-fluorinated gases
(ammonia, carbon dioxide, hydrocarbons), because the company believes in diversity of refrigerant choice to allow
the best suited solution to be used in each application.
Range overview.
EWYTB- is available with:
- 2 different layouts: Parallel Coil and Double V Coil.
- 2 Efficiency levels: Gold (high efficiency) and Silver (standard efficiency).
- One or Two independent refrigerant circuits.
