Motherboard LayoutMotherboard Layout

Motherboard Layout

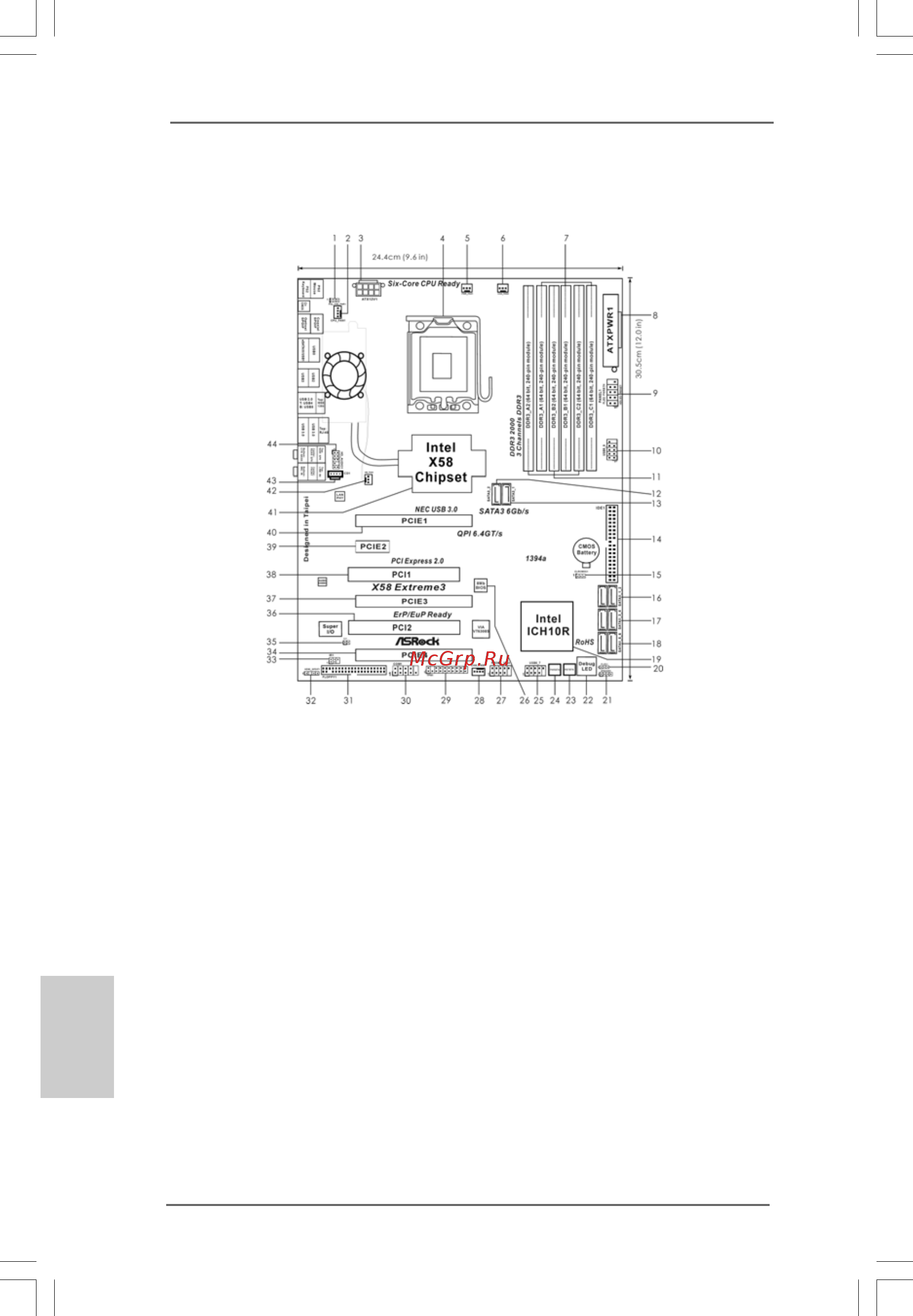

1 PS2_USB_PWR1 Jumper 22 Dr. Debug

2 CPU Fan Connector (CPU_FAN1) 23 Reset Switch (RSTBTN)

3 ATX 12V Power Connector (ATX12V1) 24 Power Switch (PWRBTN)

4 1366-Pin CPU Socket 25 USB 2.0 Header (USB6_7, Blue)

5 Power Fan Connector (PWR_FAN1) 26 8Mb SPI Flash

6 Chassis Fan Connector (CHA_FAN2) 27 Front Panel IEEE 1394 Header

7 3 x 240-pin DDR3 DIMM Slots (FRONT_1394, White)

(Triple Channel: DDR3_A1, DDR3_B1, DDR3_C1 28 Chassis Fan Connector (CHA_FAN1)

; White) 29 TPM Header (TPM1)

8 ATX Power Connector (ATXPWR1) 30 COM Port Header (COM1)

9 System Panel Header (PANEL1, White) 31 Floppy Connector (FLOPPY1)

10 USB 2.0 Header (USB8_9, Blue) 32 HDMI_SPDIF Header (HDMI_SPDIF1, White)

11 3 x 240-pin DDR3 DIMM Slots 33 Infrared Module Header (IR1)

(Triple Channel: DDR3_A2, DDR3_B2, DDR3_C2 34 PCI Express x16 Slot (PCIE4, White)

; Blue) 35 Chassis Intrusion Header (CI1)

12 SATA3 Connector (SATA3_2, White) 36 PCI Slot (PCI2)

13 SATA3 Connector (SATA3_1, White) 37 PCI Express 2.0 x16 Slot (PCIE3, Blue)

14 Primary IDE Connector (IDE1, Blue) 38 PCI Slot (PCI1)

15 Clear CMOS Jumper (CLRCMOS1) 39 PCI Express x1 Slot (PCIE2, White)

16 SATAII Connector (SATAII_1_2, Blue) 40 PCI Express 2.0 x16 Slot (PCIE1, Blue)

17 SATAII Connector (SATAII_3_4, Blue) 41 North Bridge Controller

18 SATAII Connector (SATAII_5_6, Blue) 42 North Bridge Fan Connector (NB_FAN1)

19 South Bridge Controller 43 Internal Audio Connector: CD1 (Black)

20 Power LED Header (PLED1) 44 Front Panel Audio Header

21 Chassis Speaker Header (SPEAKER 1, White) (HD_AUDIO1, White)
