ASRock X58 Extreme3 Motherboard

EnglishEnglish

English

2.8 Jumpers Setup2.8 Jumpers Setup

2.8 Jumpers Setup

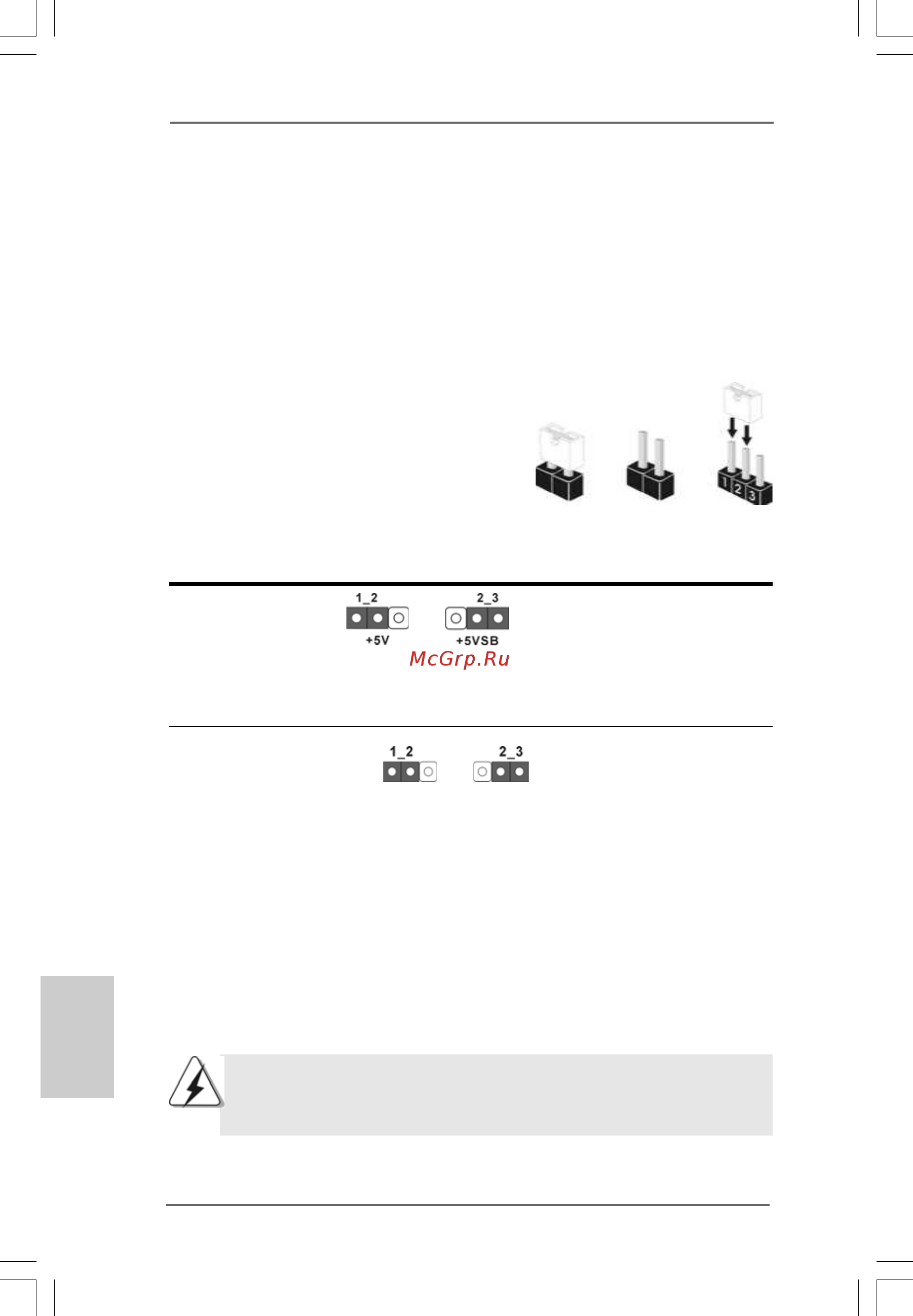

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.2 No. 1) +5VSB (standby) for PS/2

or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power

supply.

Clear CMOS Jumper

(CLRCMOS1)

(see p.2 No. 15)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power supply.

After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1

for 5 seconds. However, please do not clear the CMOS right after you update the

BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you

must boot up the system first, and then shut it down before you do the clear-

CMOS action.

Short Open

Clear CMOSDefault

2.7 Surround Display Feature2.7 Surround Display Feature

2.7 Surround Display Feature

This motherboard supports Surround Display upgrade. With the external add-on PCI

Express VGA cards, you can easily enjoy the benefits of Surround Display feature. For

the detailed instruction, please refer to the document at the following path in the

Support CD:

..\ Surround Display Information

If you clear the CMOS, the case open may be detected. Please adjust

the BIOS option “Clear Status” to clear the record of previous chassis

intrusion status.
