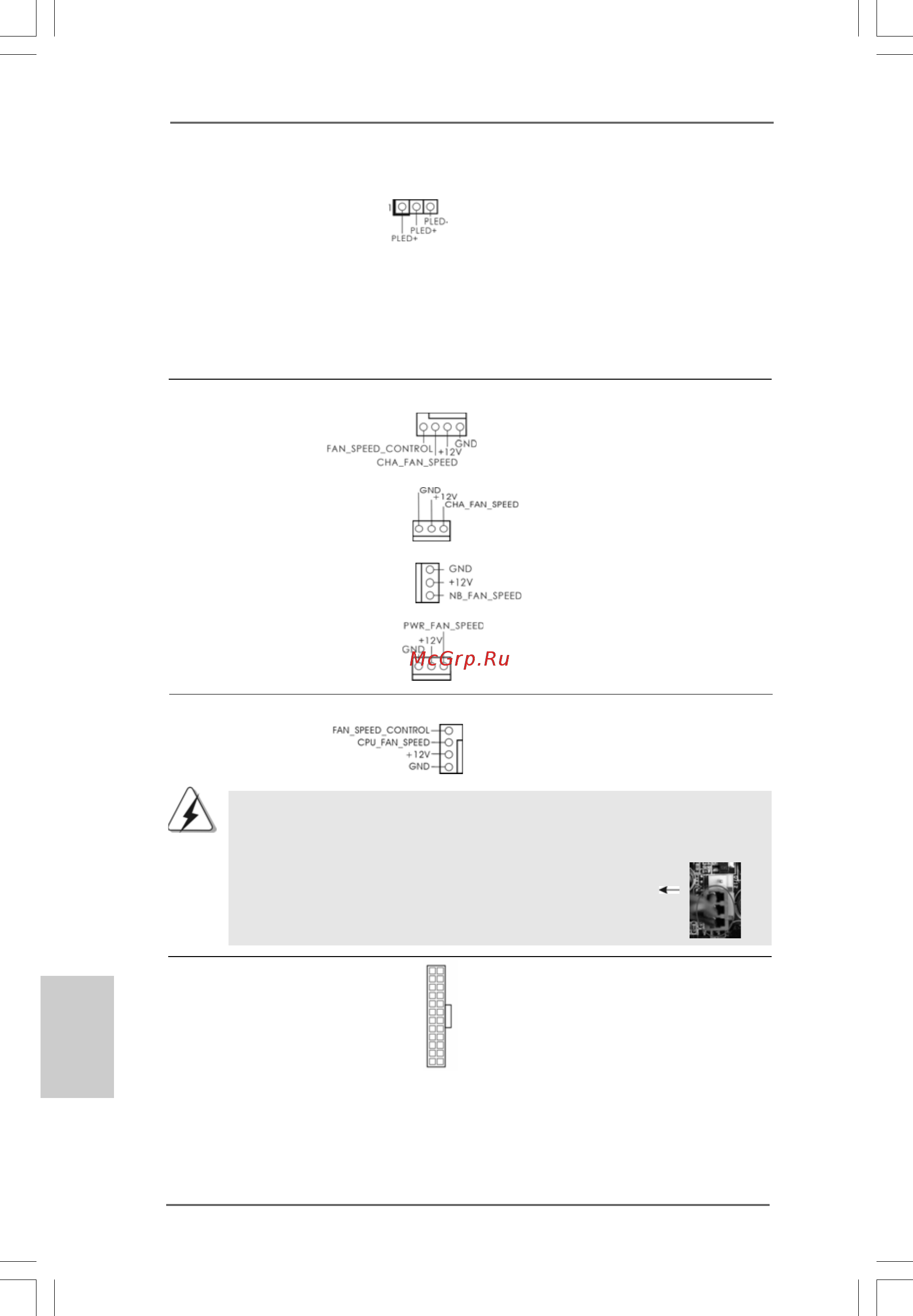

Chassis, NB and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 28) match the black wire to the

ground pin.

(3-pin CHA_FAN2)

(see p.2 No. 6)

(3-pin NB_FAN1)

(see p.2 No. 42)

(3-pin PWR_FAN1)

(see p.2 No. 5)

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.2, No. 8)

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match

(see p.2 No. 2) the black wire to the ground pin.

EnglishEnglish

English

Power LED Header Please connect the chassis

(3-pin PLED1) power LED to this header to

(see p.2 No. 20) indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power off).
