ASRock X58 Extreme3 Motherboard

connect to the

power supply

connect to the SATA

HDD power connector

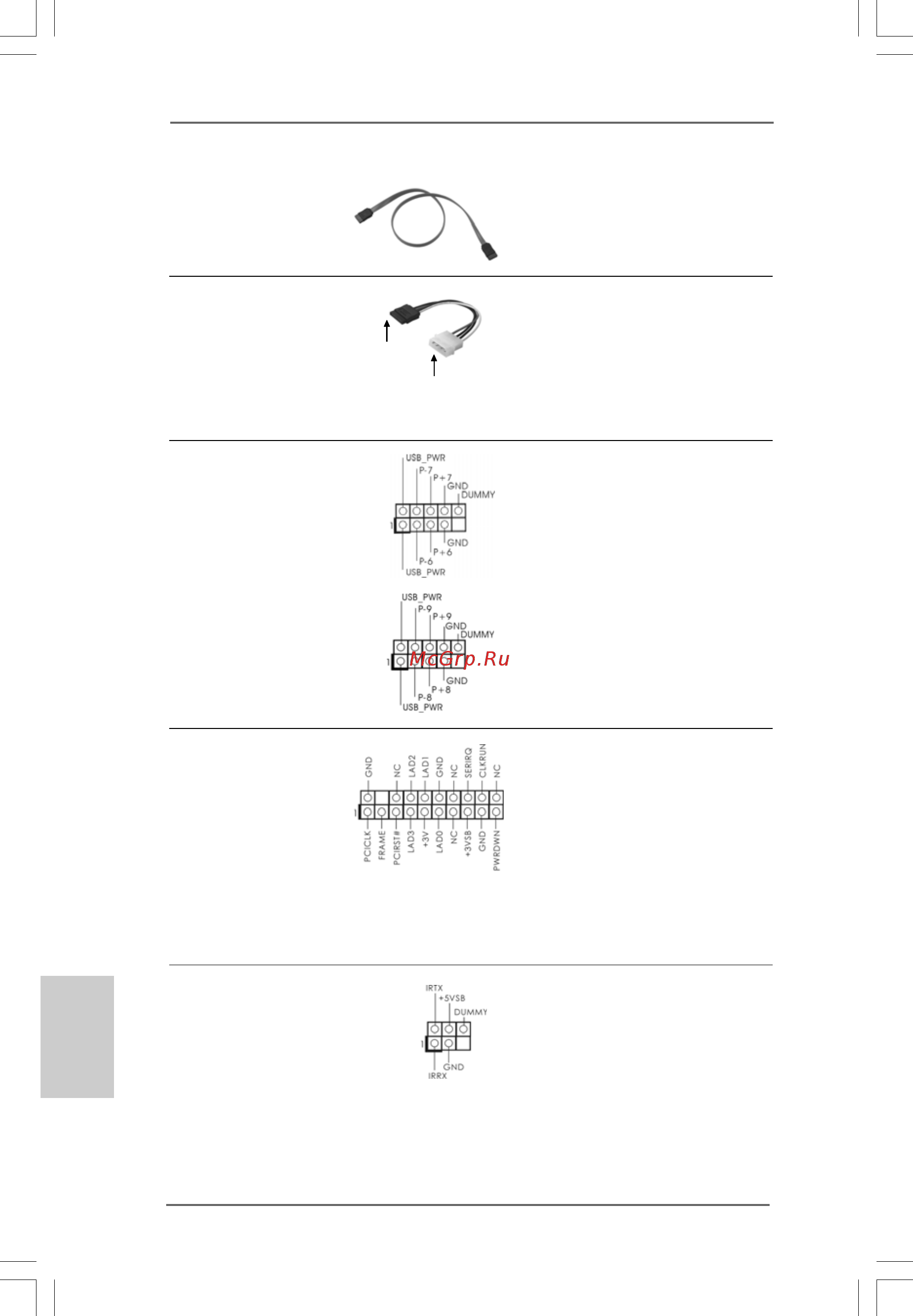

Infrared Module Header This header supports an optional

(5-pin IR1) wireless transmitting and

(see p.2 No. 33) receiving infrared module.

USB 2.0 Headers Besides five default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 25) two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB8_9)

(see p.2 No. 10)

TPM Header This connector supports a

(19-pin TPM1) Trusted Platform Module (TPM)

(see p.2 No. 29) system, which can securely

store keys, digital certificates,

passwords, and data. A TPM

system also helps enhance

network security, protects

digital identities, and ensures

platform integrity.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.

EnglishEnglish

English

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.
