ASRock X58 Extreme3 Motherboard

EnglishEnglish

English

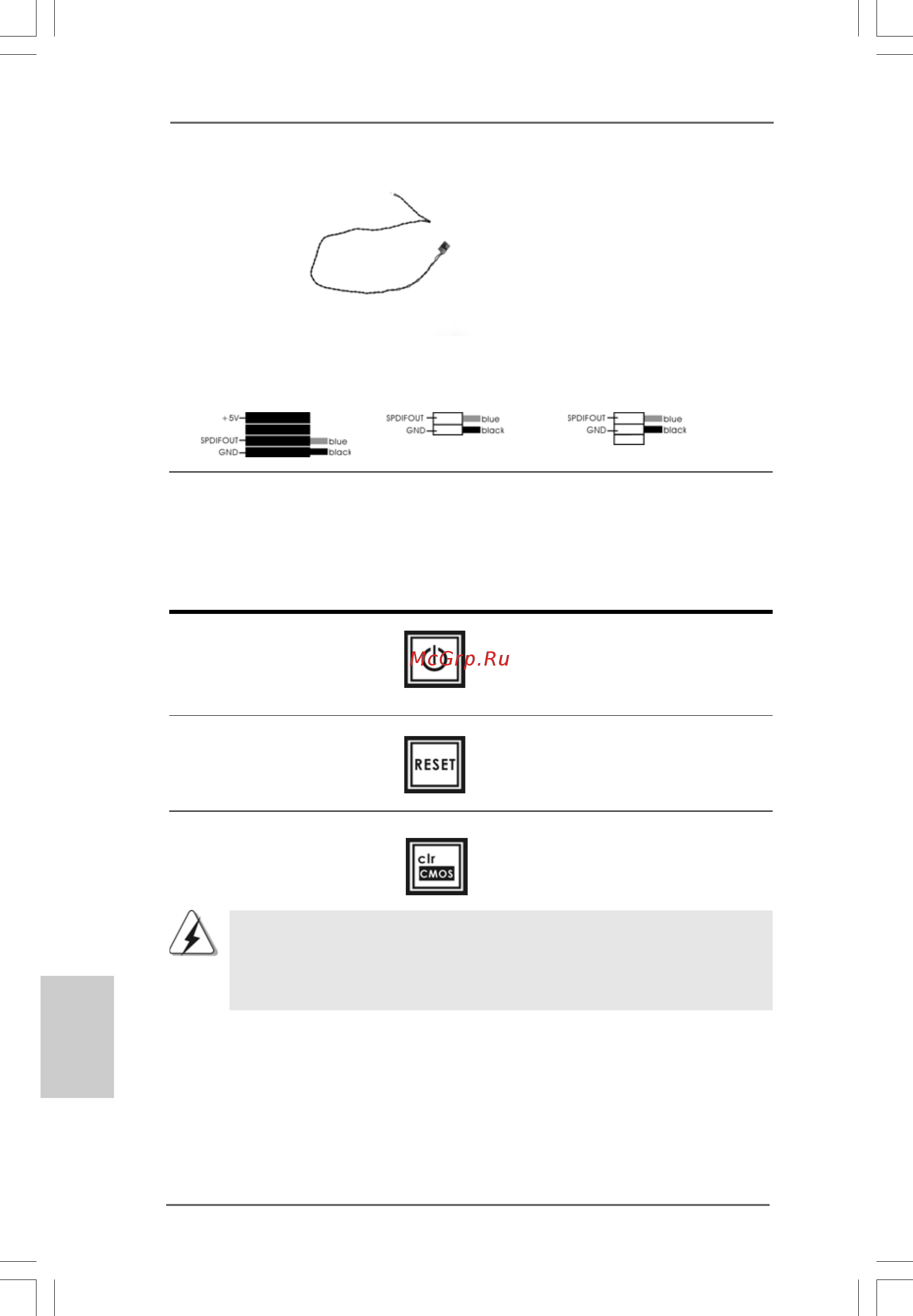

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

You are not allowed to use Clear CMOS switch function if you set up the system

password. If you want to clear the CMOS values, please clean your system

password in advance or refer to page 26 “Clear CMOS jumper” description

instead.

2.10 Smart Switches2.10 Smart Switches

2.10 Smart Switches

This motherboard has three smart switches: power switch, reset switch and

clear CMOS switch, allowing users to quickly turn on/off or reset the system or

clear the CMOS values.

Power Switch Power Switch is a smart switch,

(PWRBTN) allowing users to quickly turn

(see p.2 No. 24) on/off the system.

Reset Switch Reset Switch is a smart switch,

(RSTBTN) allowing users to quickly reset

(see p.2 No. 23) the system.

Clear CMOS Switch Clear CMOS Switch is a smart

(CLRCBTN) switch, allowing users to quickly

(see p.2 No. 17) clear the CMOS values
