4U100 Series
10 11
English

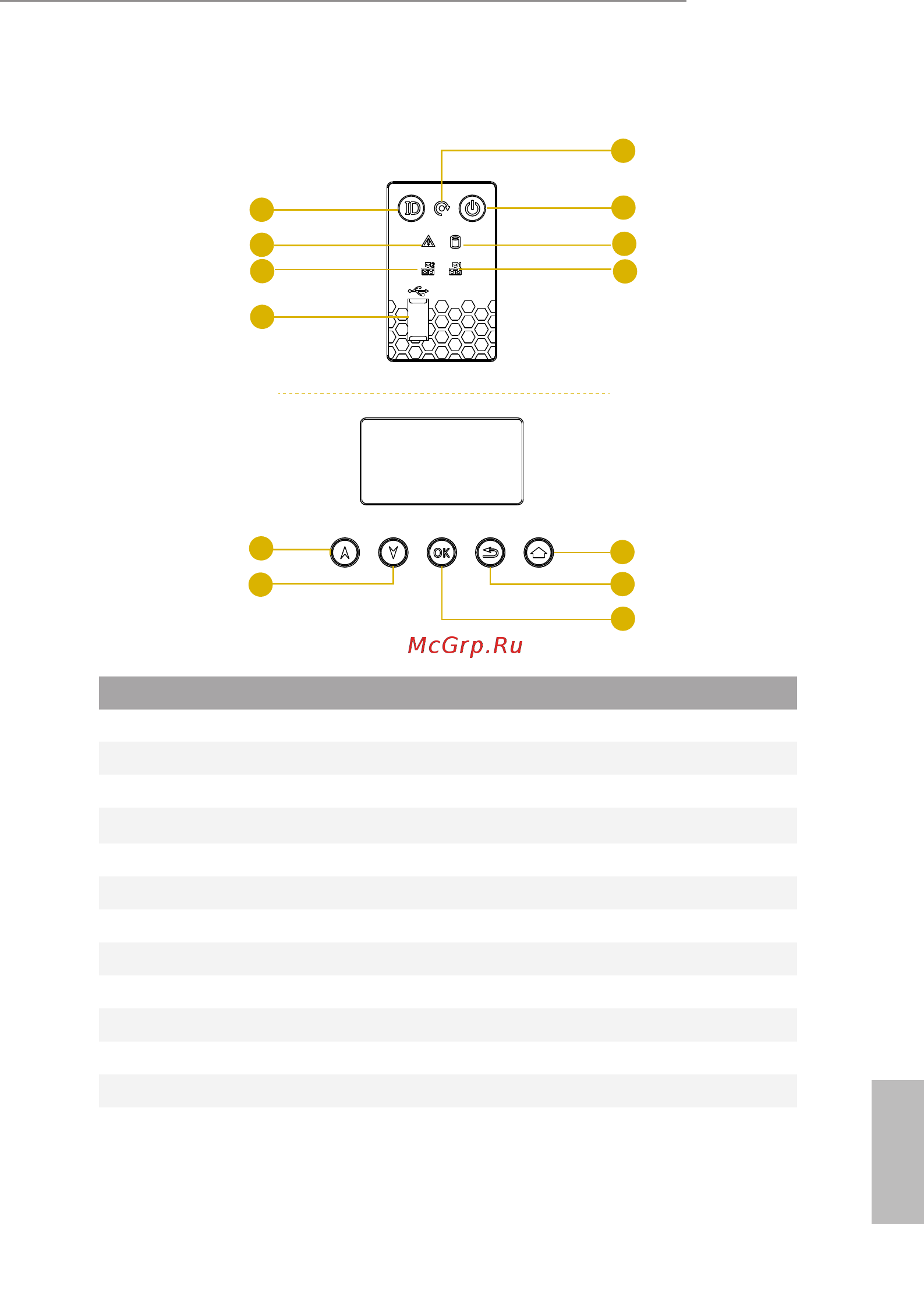

2.5 Front Control Panel Buttons and LEDs
6
1
5
4
9
10
11
12
13
2
3
7
8
No. Item
1
Identify LED Button
2
Global Failture Indicator (PSU fault/Fan error/High temperature)
3
LAN2 Activity LED
4
USB 2.0 Port
5
Reset Button
6
Power LED Button
7
HDD Activity LED
8
LAN1 Activity LED
9
Up Button
10
Down Button
11
Home Button
12
Back Button
13
OK Button
