4U100 Series
24 25
English

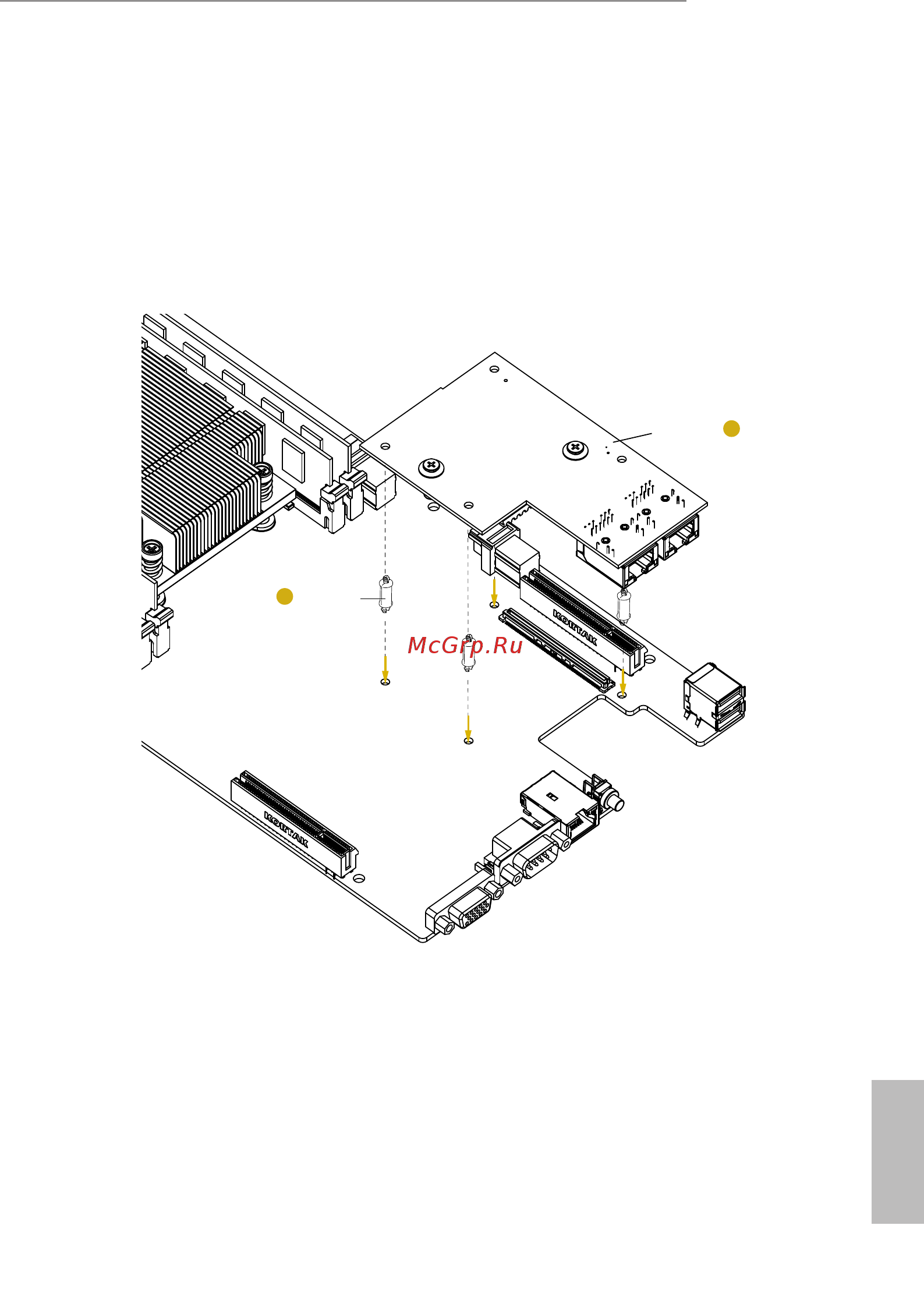

Installing a LAN Mezzanine Card
You can use an optional Ethernet mezzanine card for additional LAN ports. Please be
aware that the mezzanine card must be used in conjunction with a matching I/O module.
1. Install the four spacer supports into the motherboard around the mezzanine card slot.
2. Gently insert the mezzanine card into the mezzanine card slot on the motherboard.
Spacer Support
1
Mezzanine Card
2
