4U100 Series
16 17
English

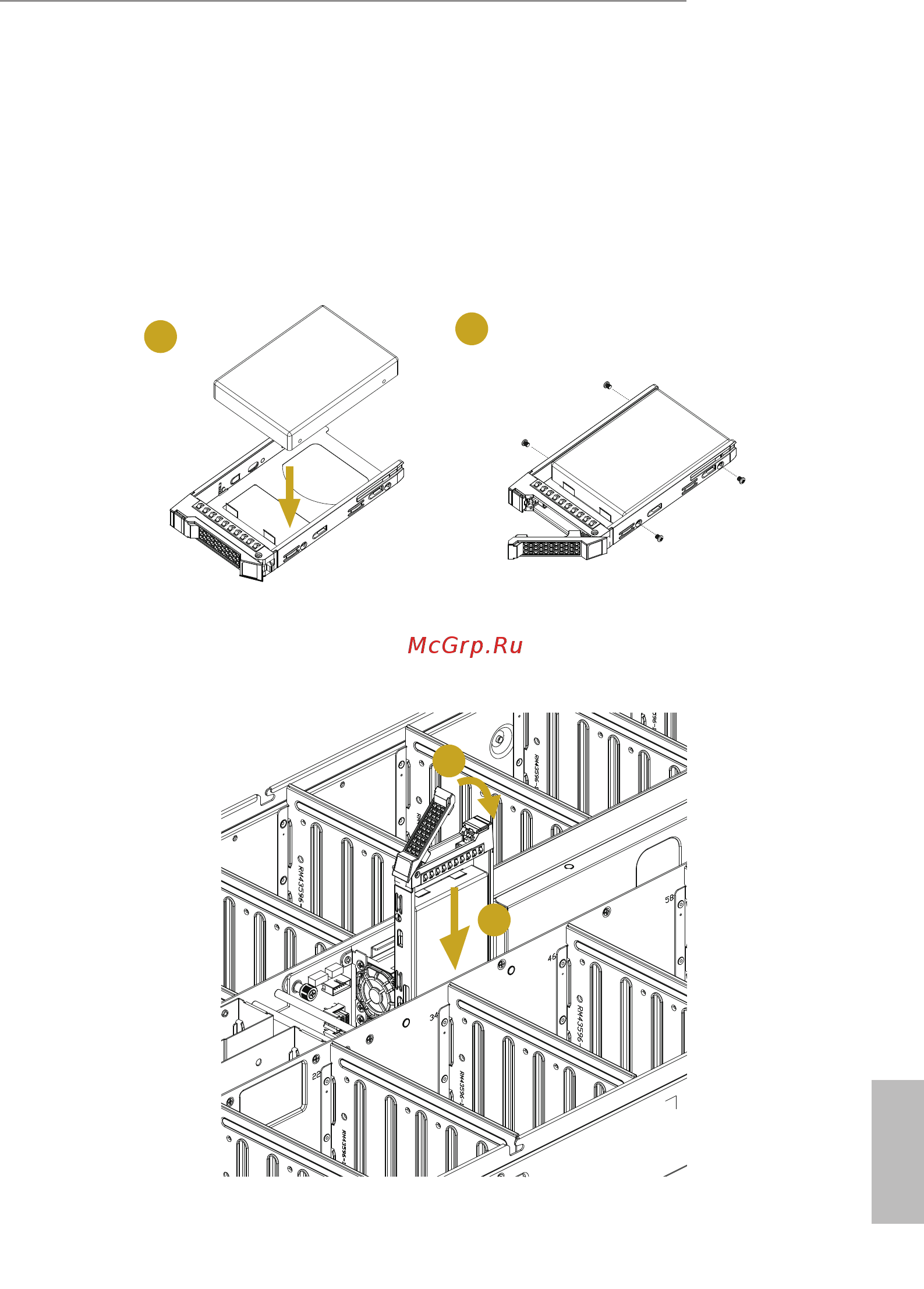

Installing a 2.5” OS Drive to the Hard Drive Tray
1. Place a 2.5" OS drive into the tray with the printed circuit board side facing down.
Carefully align the mounting holes in the hard drive and the tray.
2. Secure the hard drive using the two screws.
3. Slide the drive tray into the HDD bay until the drive is fully seated.
4. Push in the locking lever to lock the HDD tray into place.
1
2
3
4
