3.3 Power Supply
The 4U100 Series can accommodate two CRPS (Common Redundant Power Supplies)
power supplies in the bay at the rear of the chassis. Each unit provides up to 2000 Watts
of power. ree power supplies are required for operation, with the other power supply
purely as a redundant, load-sharing backup. It can be removed without aecting system
operation.
Installing and Removing the Power Supply
Installing the Power Supply Unit

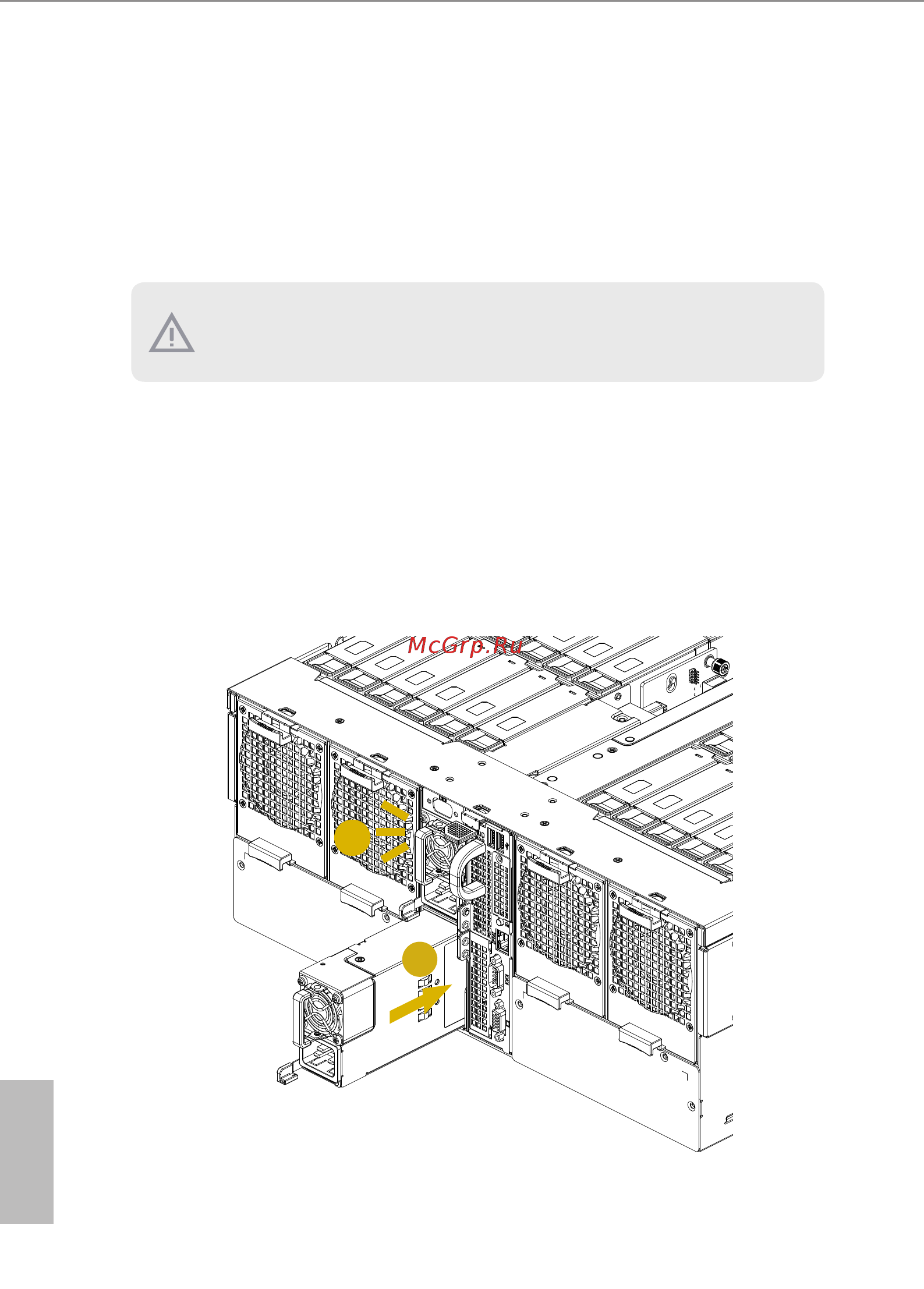

1. Align the power supply unit with the power supply slot. Ensure that the LED appears
on the lower right when you are installing the power supply unit.
2. Carefully slide the PSU all the way into the power supply bay until it clicks into place.
1
2
Before replacing the power supply, power o the server, unplug the power cord, and discon-
nect all wiring from the power supply.
