4U100 Series
22 23
English

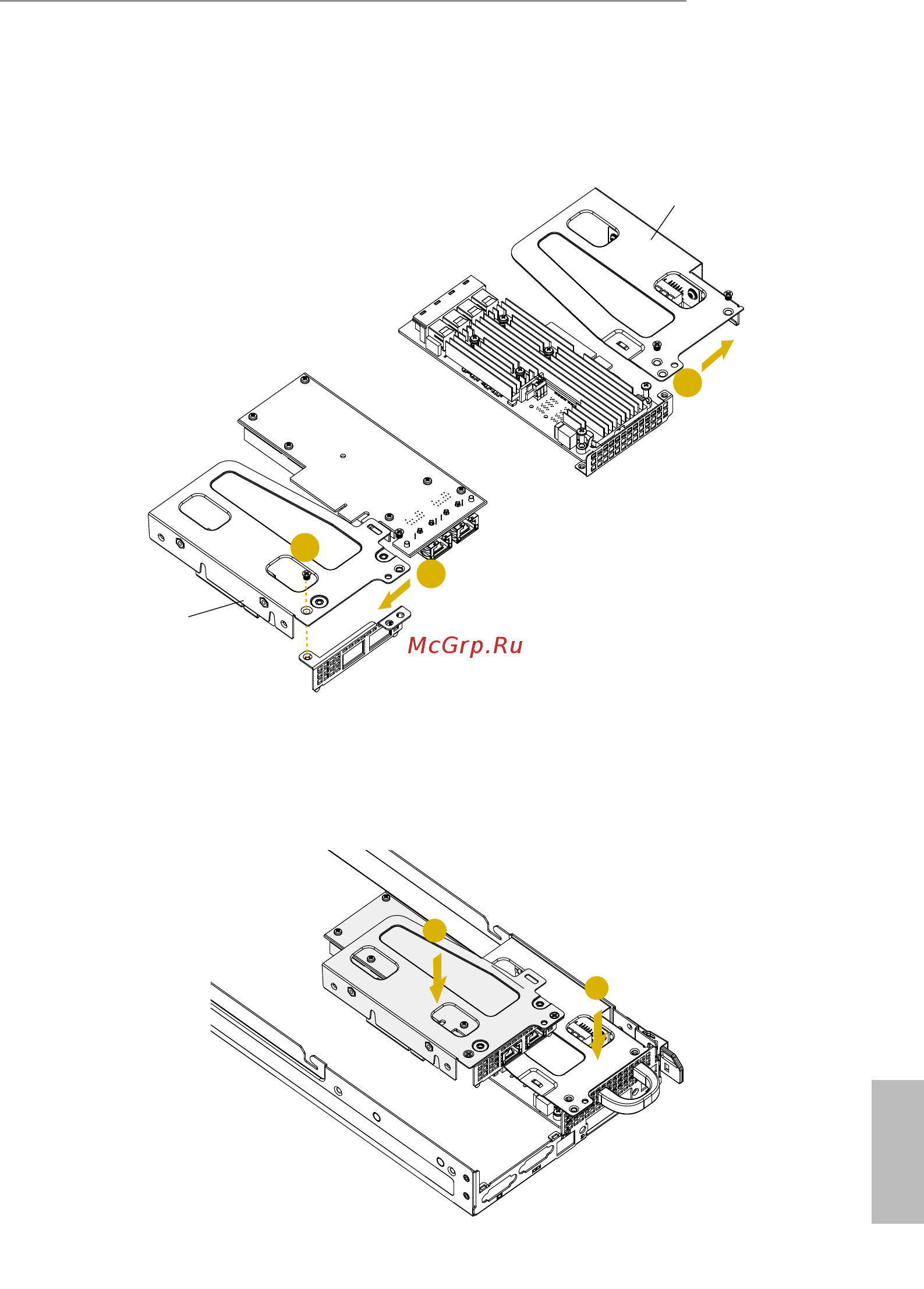

5. Install the add-on card to the riser-card assembly. Make sure the add-on card is well
and rmly installed into the connector of the riser card on the aseembly.
6. Attach the matching I/O plate to the LAN card and secure it with the screw.
7. Be sure to install the right riser-card assembly into the chassis rst.
8. en install the le one.
9. Use the screws, you set aside in Step 3, to secure both assemblies.
10. Replace the cover back and secure it with screws.
5
6
5
Riser Card Assembly (Right)
Riser Card Assembly (Left)
7
8
