16 17
English
3.2 Hard Drive
3.2.1 Installing OS Drives into 2.5" Hard Drive Trays

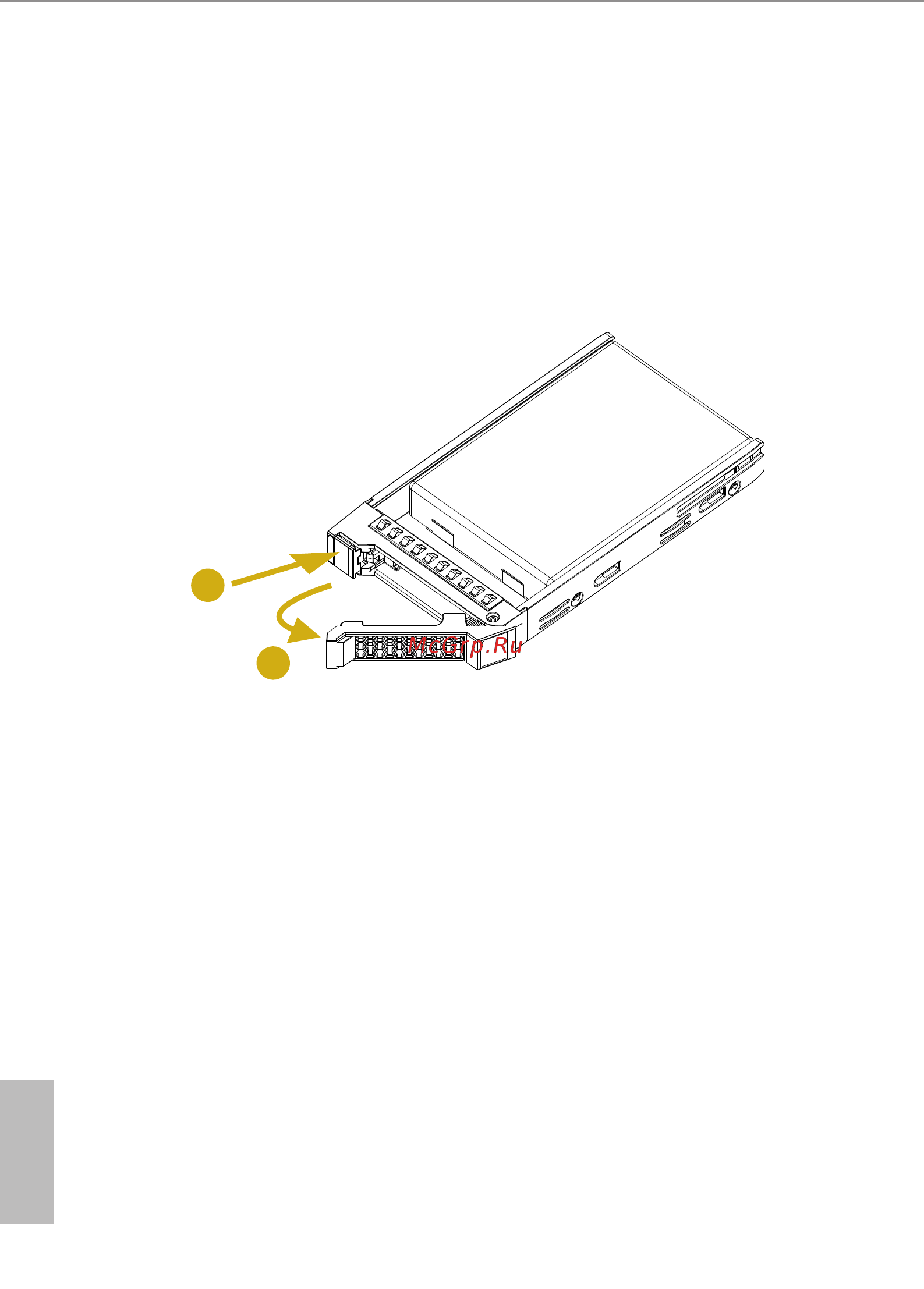

Removing 2.5” Hard Drive Trays from the Chassis
1. Press the locking lever latch on the drive tray to unlock the retention lever.
2. Rotate the lever out and away from the module bay and pull the hard drive out of the
HDD tray.
1
2
