4U100 Series
8 9
English

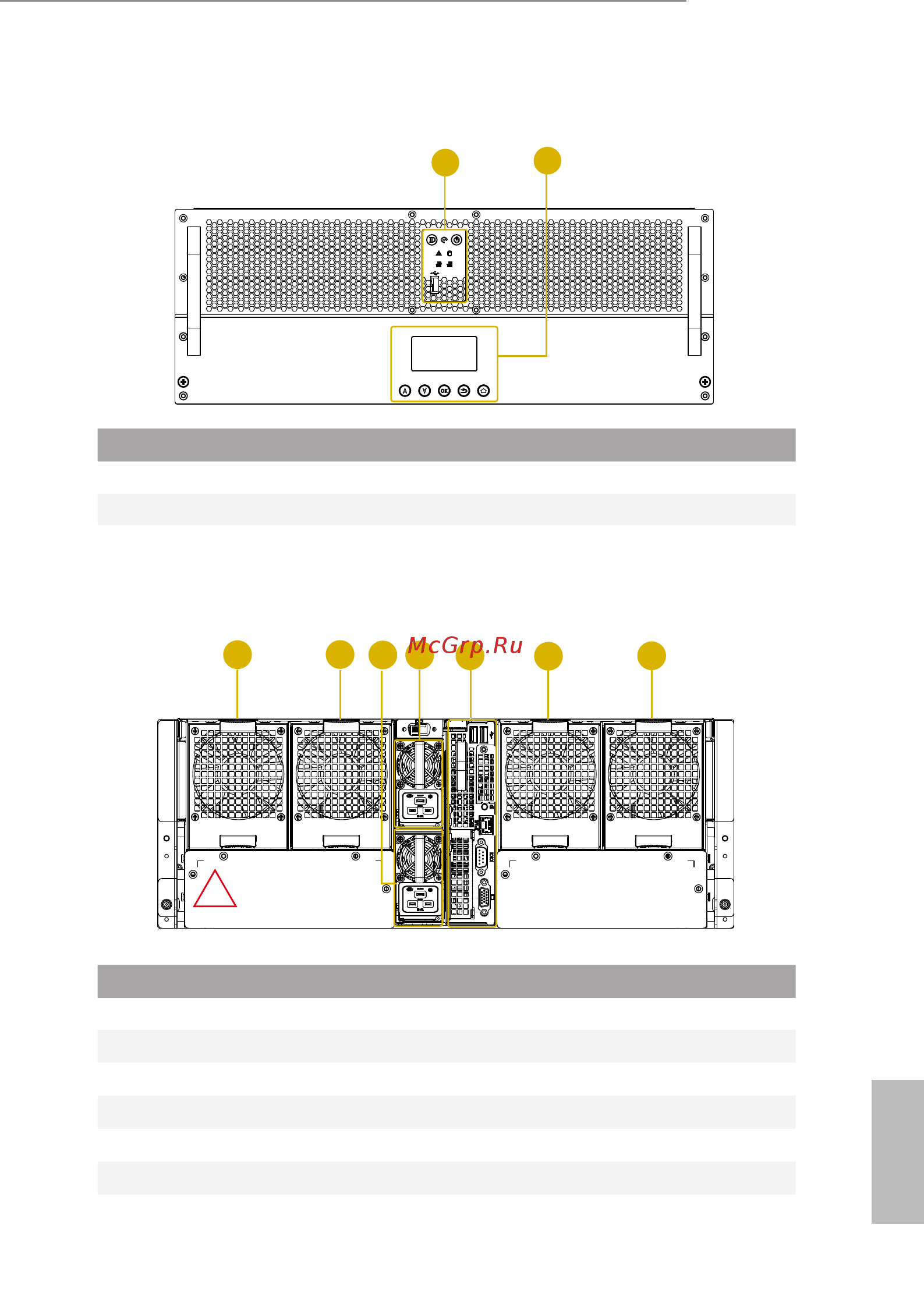

2.3 System Front Panel
2
1
No. Item
1
Control Panel Buttons and LEDs
2
LCD Panel and Buttons
2.4 System Rear Panel
3
5
2
1
7
4
WARNING! Do NOT open the
trays if the server is not powered
down or while it is still running.
!
6
No. Item
1
Rear System Fan (FAN8)
2
Rear System Fan (FAN7)
3
Power Supply Unit (PSU0)
4
Power Supply Unit (PSU1)
5
Motherboard Tray
6
Rear System Fan (FAN6)
7
Rear System Fan (FA58)
