General Settings: This page is used to configure LDAP/E-Directory settings.

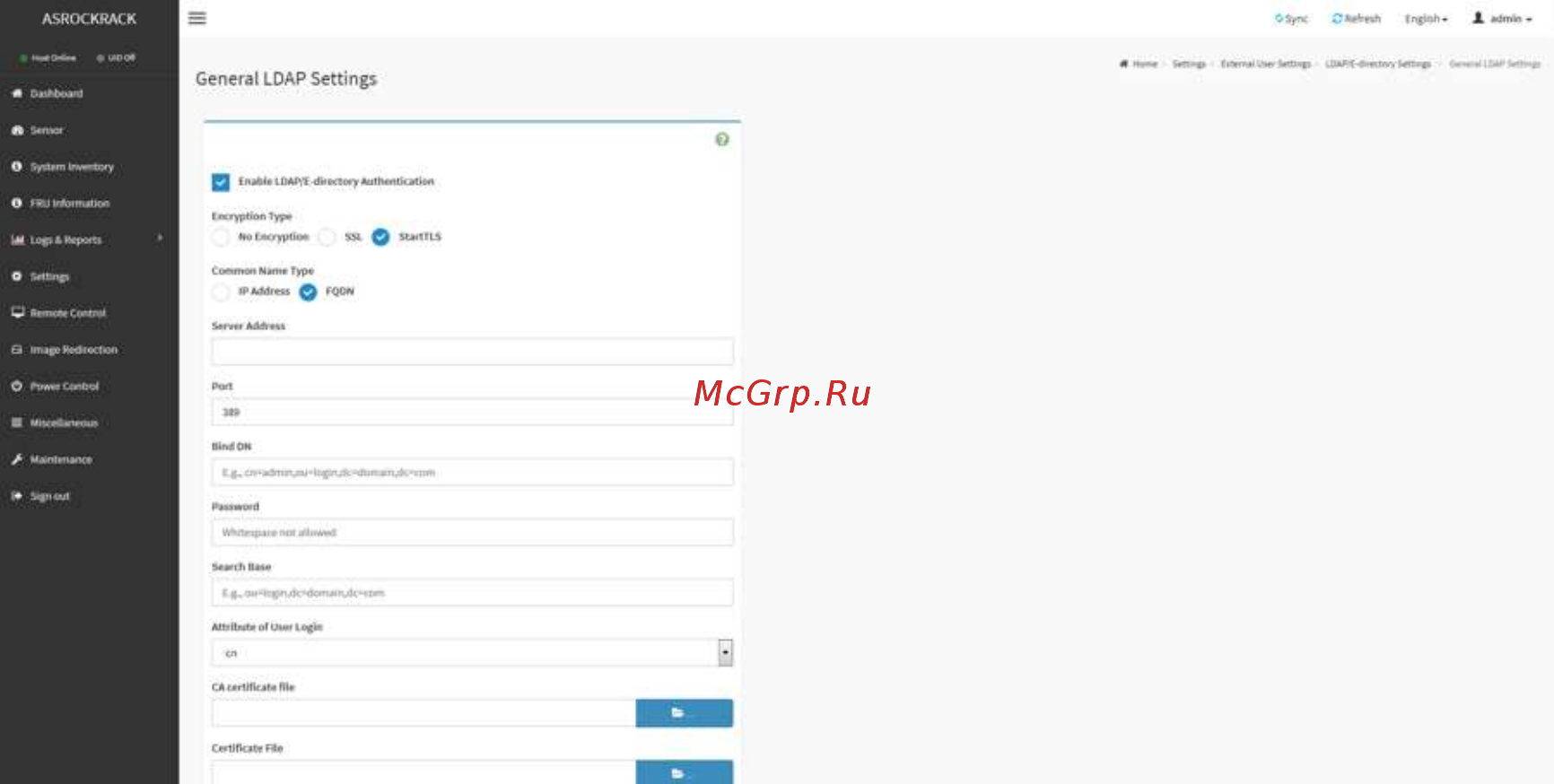

General Settings Page
Enable LDAP/E-Directory Authentication: Check the box to enable LDAP/E-Directory
authentication.
Encryption Type: Select the encryption type for LDAP/E-Directory.
Common Name Type: Select the Common Name Type for LDAP/E-Directory.
Server Address: The IP address(IPv4 or IPv6) of LDAP/E-Directory server.
Port: The port of LDA/E-Directory server.
Bind DN: The Bind DN is used during bind operation, which authenticates the client
to the server.
Password: The password of LDA/E-Directory server.
Search Base: The Search base tells the LDAP server which part of the external
directory tree to search. The search base may be something equivalent to the
organization, group of external directory.
Attribute of User Login: To find the LDAP/E-Directory server which attribute should
be used to identify the user.
CA Certificate File: To identify the certificate of the trusted CA certs.
Certificate File: To find the client certificate filename.
Private Key: To find the client private key filename.
Role Groups:
This page is used to add a new role group to the device. Alternatively,
double click on a free slot to add a role group.
14
