IP Single (or) Range Start: This field is used to configure the IP address or range of IP

addresses.

IP Range End: This field is used to configure the IP range end of IP addresses.

Rules: This field is used to determine the rule to Allow or Block.

3.8.12.3 Port Firewall Rules

This page is used to add a new Port or Range to firewall settings.

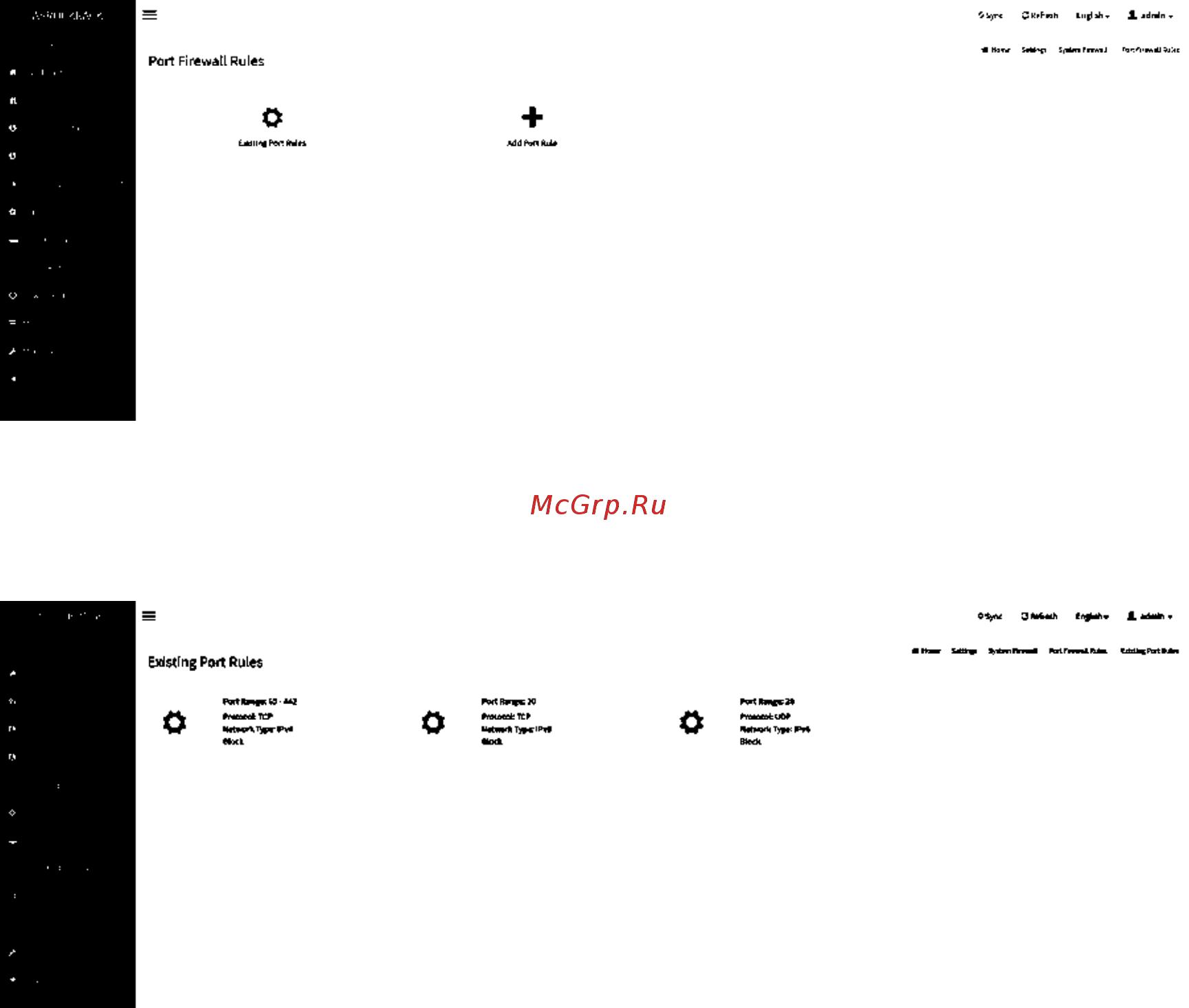

Port Firewall Rules Page

Existing Port Rules: This page is used to displays existing port rules.

Existing Port Rules Page
