LPC Reset Events: Trigger the recording by Host LPCRESET event.
Date and Time Event: Trigger the recording by specific date and time.
Pre-Event Video Recording: Select Crash Reset either Pre-crash or Pre-reset.
Video Remote Storage: This page is used to configure the remote storage path.

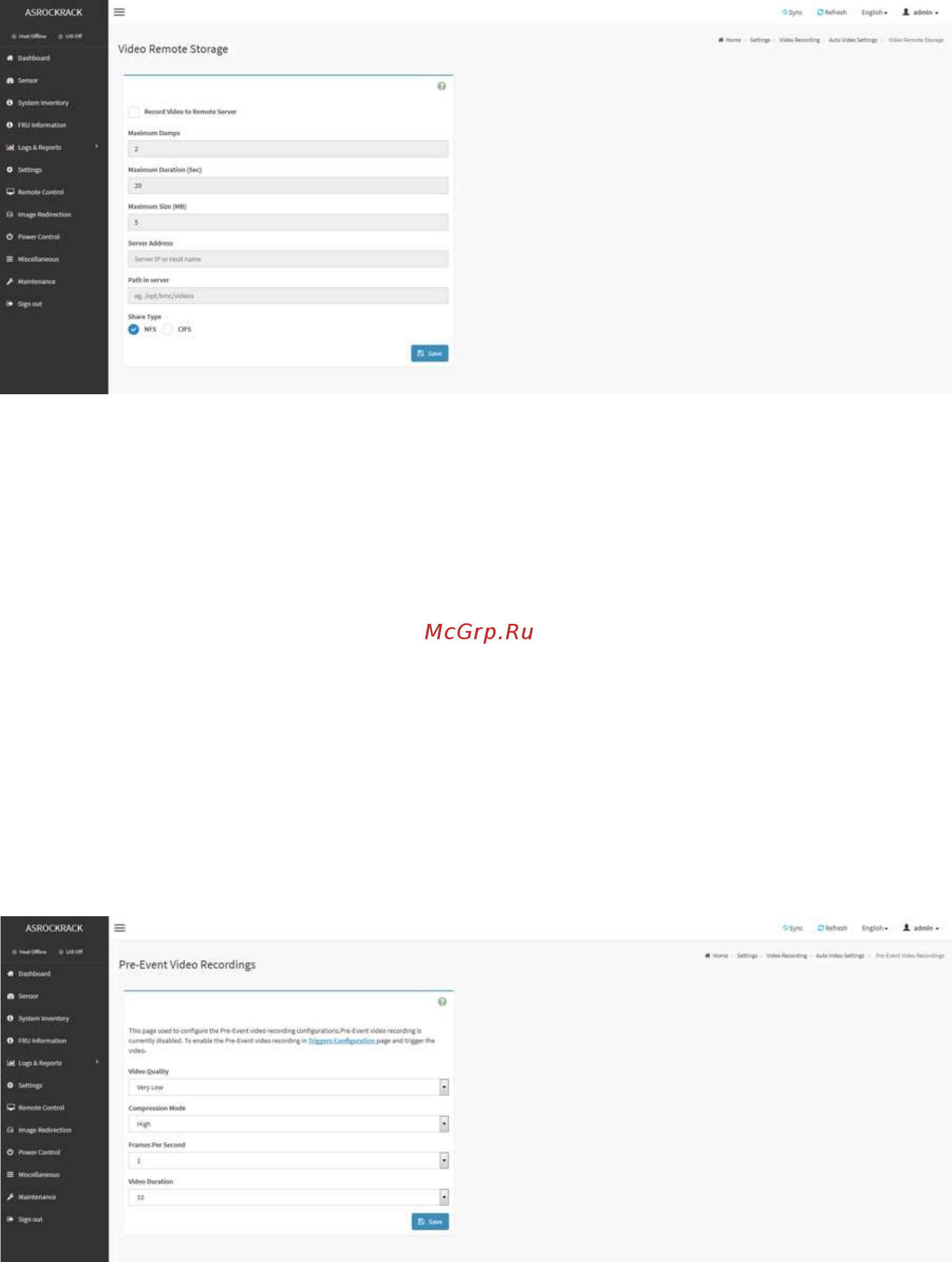

Video Remote Storage Page
Record Video to Remote Server: Check the box to enable remote video support. If
remote video support is enabled, then the video files will be stored in remote path.
Maximum Dumps: Enter maximum dumps of the video.
Maximum Duration(Sec): Enter maximum duration of the video.
Maximum Size(MB): Enter maximum size of the video.
Server Address: Specify server address of the server.
Path in Server: Select the Share Type (NFS/CIFS). If the selected share type is (CIFS),
enter the User Name, Password and Domain Name in the respective fields.
Pre-Event Video Recordings: This page used to configure the Pre-Event video
recording configurations.
Pre-Event Video Recording Page
49
