ASRock EP2C612D16HM [39/61] Edit the existing service
![ASRock EP2C622D16FM [39/61] Edit the existing service](/views2/1694436/page39/bg27.png)
User ID: Displays the ID of the user.
User Name: Displays the name of the user.
Client IP: Displays the IP addresses that are already configured for the active sessions
Privilege: Displays the access privilege of the user.
Terminate Session: Click Terminate icon to terminate the particular session of
the service.
Edit the existing service: Click Edit icon to modify the configuration of the
service.

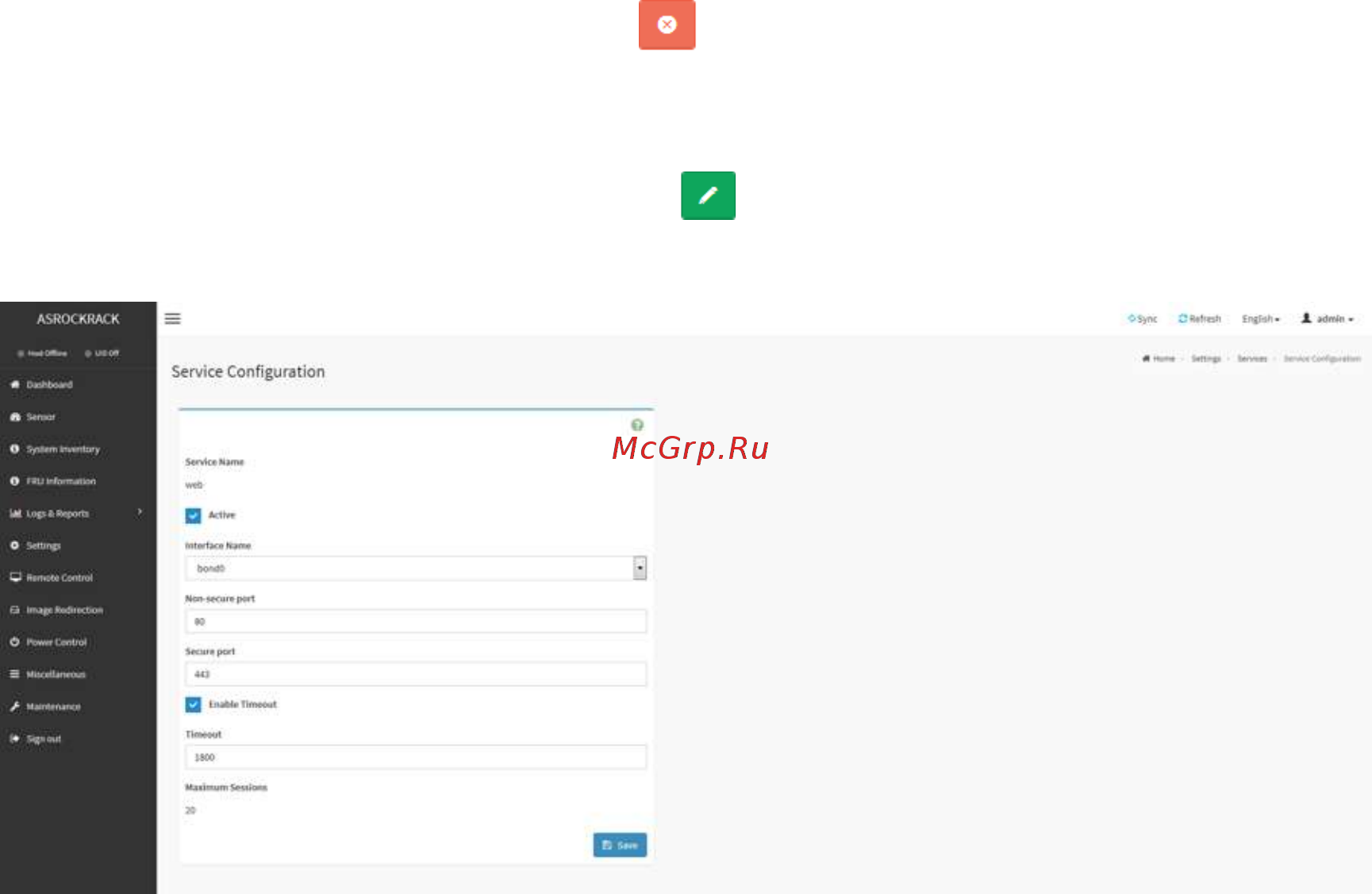

Service Configuration Page
Service Name: Displays service name of the selected slot(read only).
Active: Check the box to enable the service.
Interface Name: Choose any one of the available interfaces from the drop-down list.
Non-secure Port: Configure non secure port number for the service.
Secure Port: Configure secure port number for the service.
Enable Timeout: Check the box to enable the timeout function.
Timeout: Configure the session timeout for the service.
Maximum Sessions: Displays the maximum number of allowed sessions for the
service.
36
