3.13.3 Firmware Image Location

This page is used to configure firmware image into the BMC.

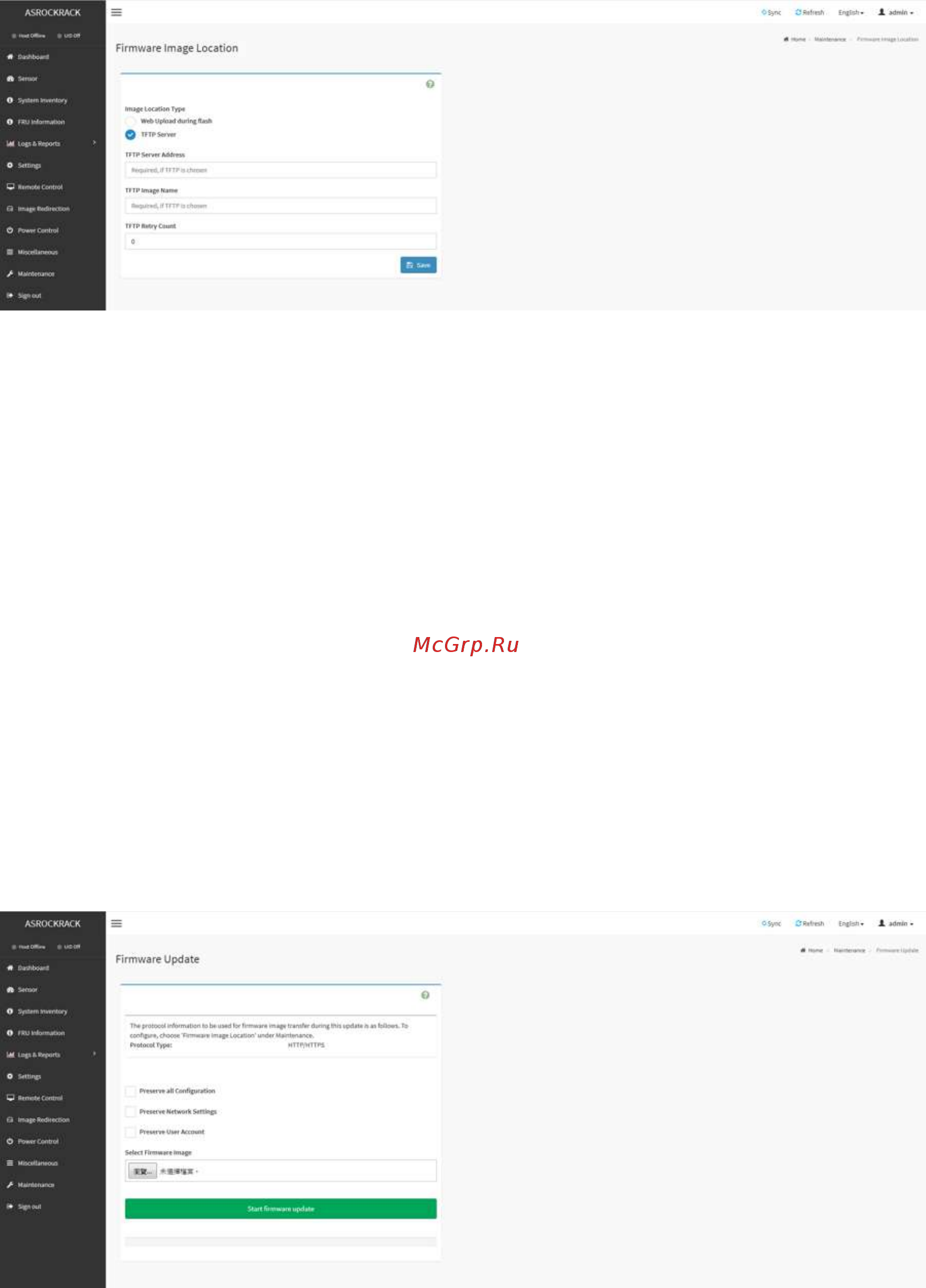

Firmware Image Location Page

Web Upload during flash: Select the option to transfer the firmware image into the

BMC via HTTP/HTTPS.

TFTP Server: Select the option to transfer the firmware image into the BMC via TFTP.

TFTP Server Address: This field will be present if enable TFTP Server, the field is used

to configure the address of TFTP server.

TFTP Image Name: This field will be present if enable TFTP Server, the field is used to

configure full source path with filename of TFTP server.

TFTP Retry Count: This field will be present if enable TFTP Server, the field is used to

configure the number of times to be retried in case a transfer failure occurs.

3.13.4 Firmware Update

This page is used to update BMC firmware.

Firmware Update Page
