3.8.5.1 General Settings

This page is used to configure general media settings.

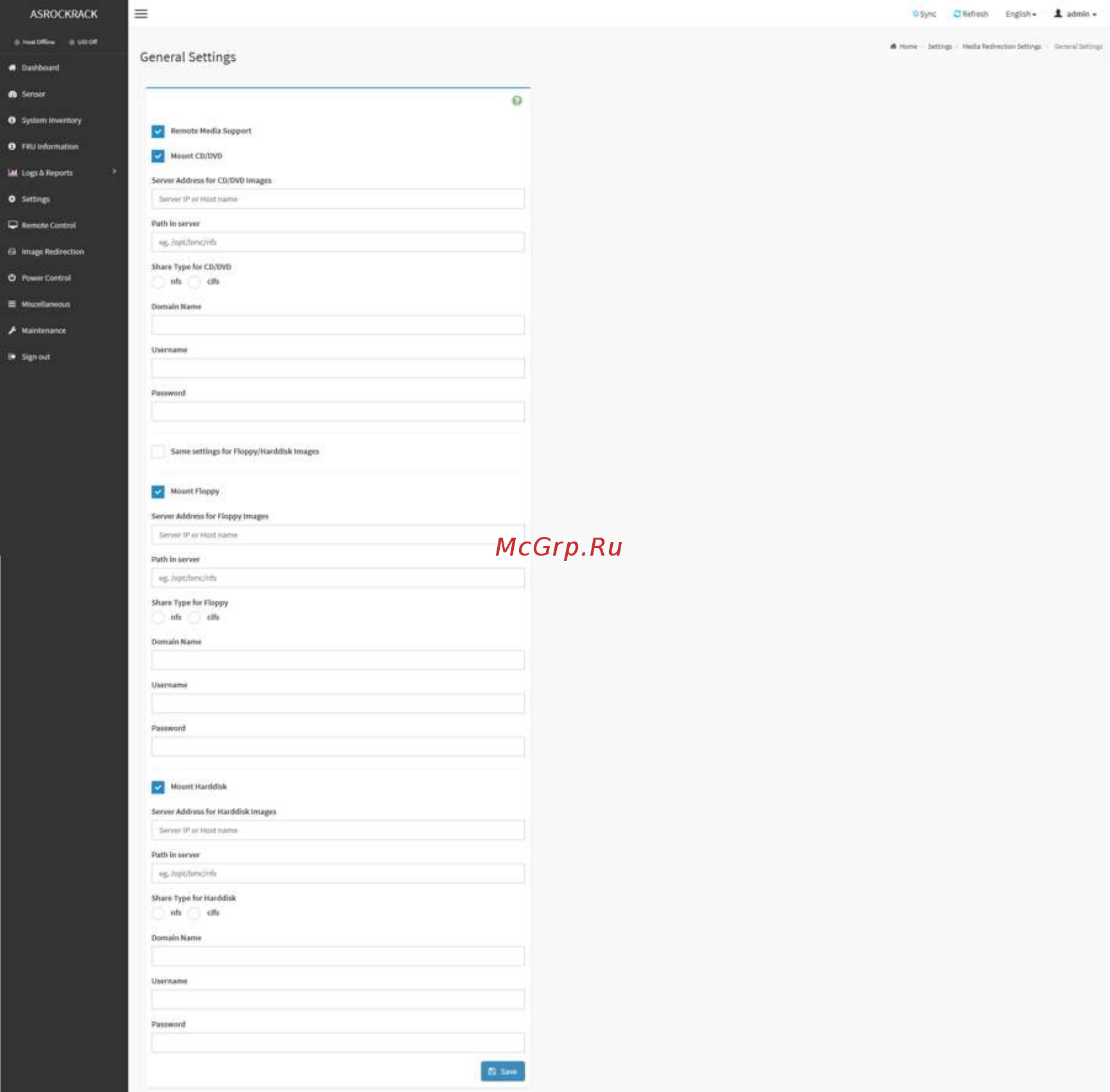

General Settings Page

Remote Media Support: Check the box to enable Remote Media support.

Mount CD/DVD: Check the box to enable Mount CD/DVD support.

Server Address for CD/DVD Images: Displays the address of the server where the

remote media images are stored.

Path in server: Displays the Source path to the remote media images.

Path in server: Displays the Share Type of the remote media server either NFS or

CIFS.

Domain Name: If share Type is Samba(CIFS), then enter domain name to

authenticate on the server.
