Video Quality: To set video quality, select ranges from the drop-down list.

Compression Mode: To set compression mode, select modes from the drop-down

list.

Frames Per Second: To set number of frames per second, select frames/sec (1-4)

from the drop-down list.

Video Duration: To set duration of video, select second (10-60) from the drop-down

list.

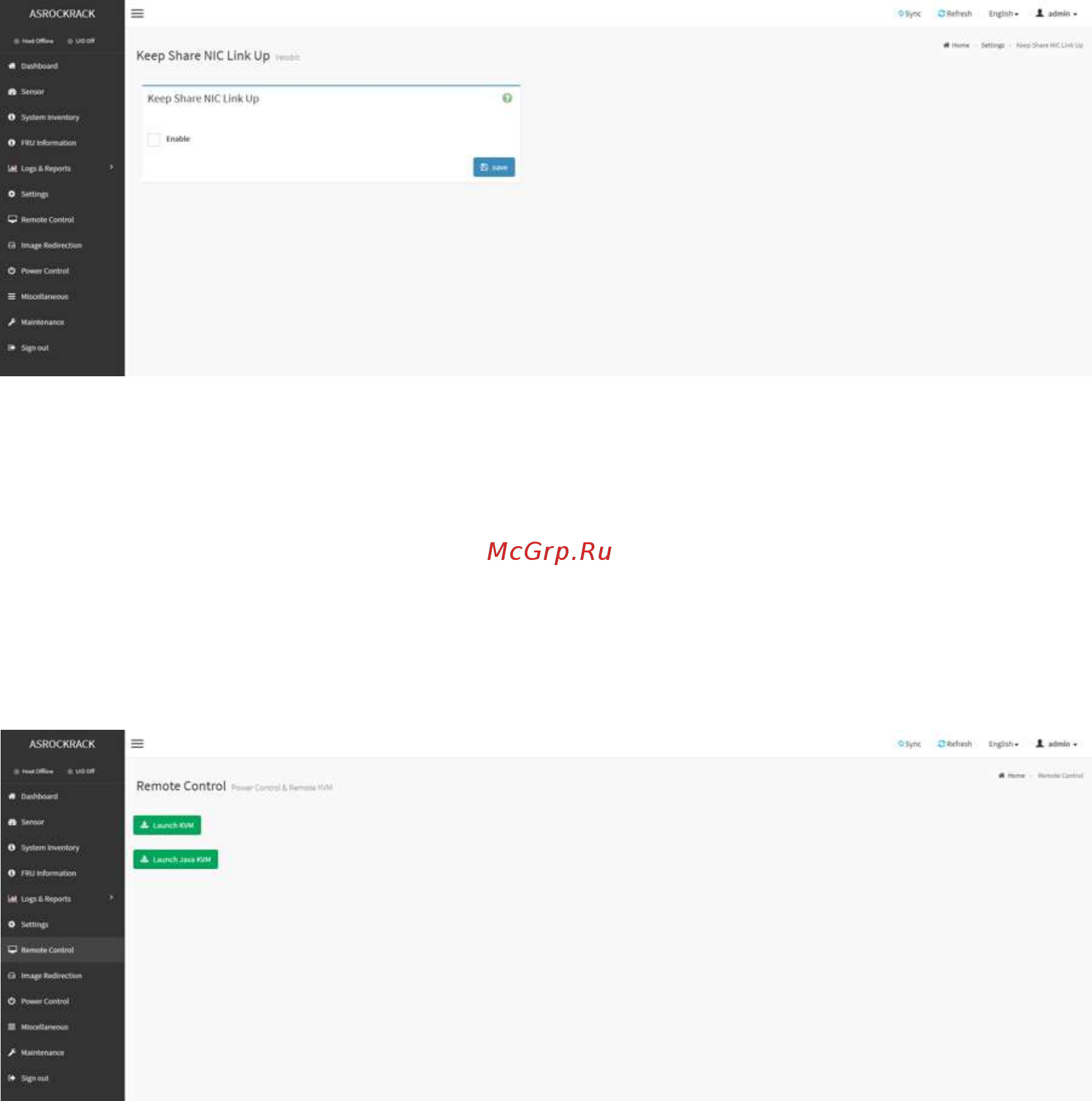

3.8.15 Keep Share NIC Link Up

This page is used to configure share NIC(NCSI) PHY link up setting.

Keep Share NIC Link Up Page

Enable: Check the box to enable Keep Share NIC Link Up, share NIC PHY will keep link

up, and it could avoid share NIC disconnection while system reset.

3.9 Remote Control

This page is used to launch the remote console redirection.

Remote Control Page

Launch KVM: Click the button to open remote control KVM page.
