3.8.11.3 Upload SSL certificate

This page is used to upload the certificate and private key file into the BMC.

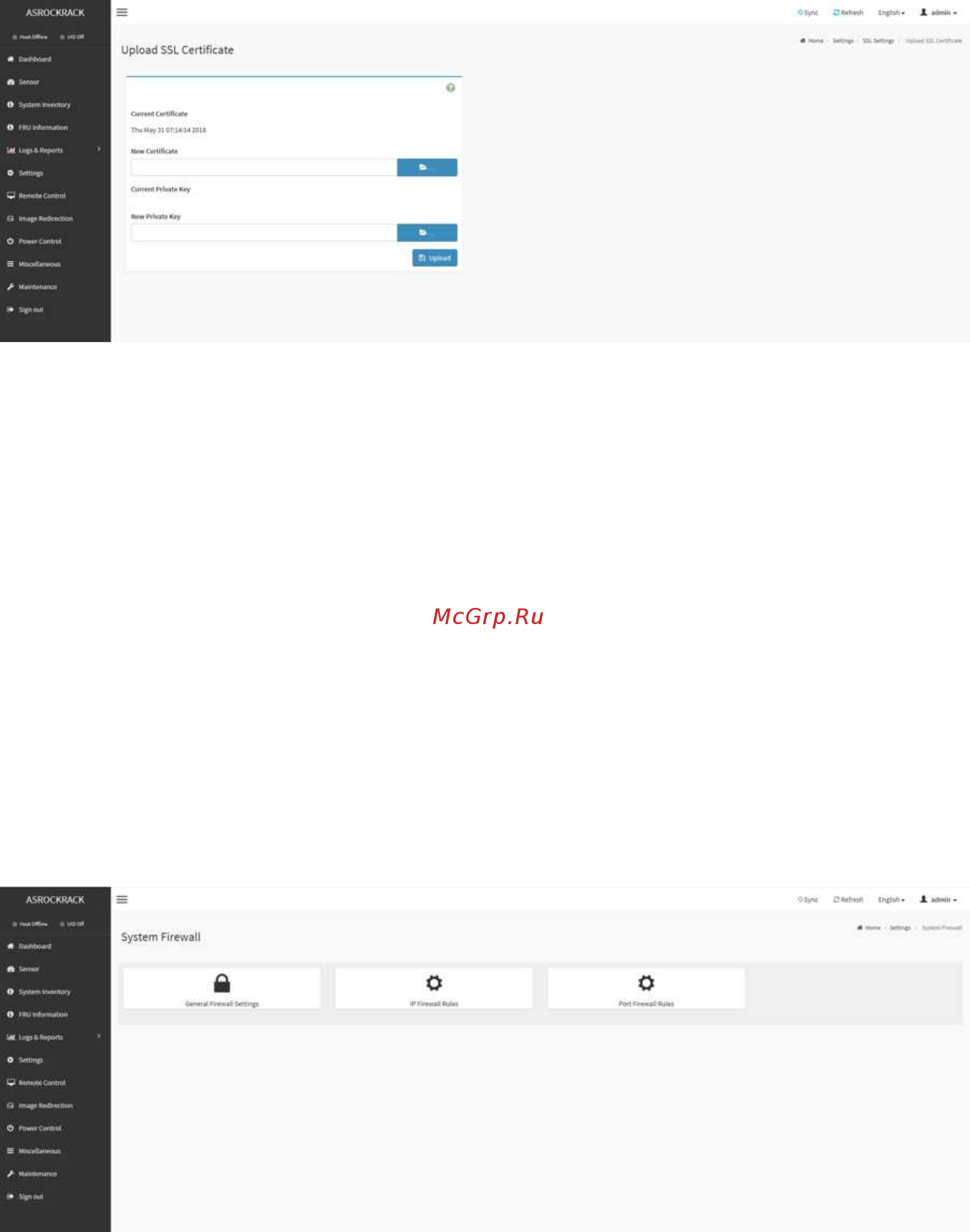

Upload SSL certificate Page

Current Certificate: Displays current certificate and uploaded date/time (read only).

New Certificate: Browse and navigate to the certificate file, the file should be of pem

type

Current Private Key: Displays current Private key information (read only).

New Private Key: Browse and navigate to the private key file, the file should be of

the type pem.

3.8.12 System Firewall

This page is used to configure the firewall settings. The firewall rule can be set for an IP

or range of IP Addresses or Port numbers.

System Firewall Page
